Name: Oil Pan/Oil Level Indicator (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
Rating: 4.7 (1 reviews)

View All

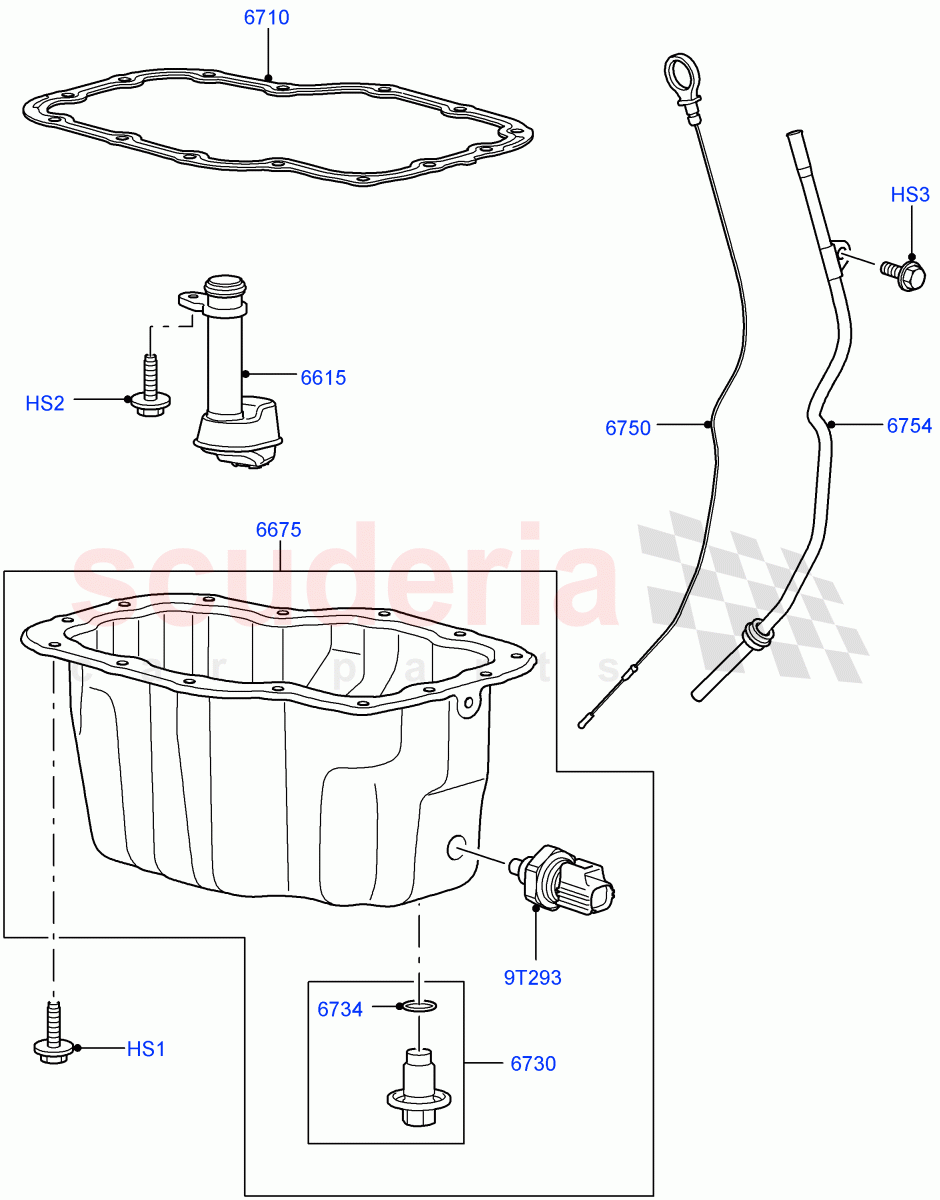

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6726224	SCREW	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	6729404	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	1316048	TUBE - OIL PUMP INLET	$89.94	To Order

Photo	Part No	Description	Price (each)	Stock
	1359896	PAN - ENGINE OIL	$368.19	To Order

Photo	Part No	Description	Price (each)	Stock
	1365260	GASKET - OIL PAN	$51.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	$8.34	To Order

Photo	Part No	Description	Price (each)	Stock
	1005593	GASKET	$21.71	To Order

Photo	Part No	Description	Price (each)	Stock
	1359056	SENDER - OIL TEMPERATURE	$66.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	6726224	SCREW	6726224 SCREW M6 X 16MM	$0.64	14
HS2	6729404	SCREW	6729404 SCREW M6 X 20MM	$0.76	2
HS3	6659186	BOLT - HEX.HEAD	6659186 BOLT - HEX.HEAD M8 x 12MM / To: 6A999999	$5.15	1
HS3	LR003718	BOLT	LR003718 BOLT M8 x 12MM / From: 7A000001	$2.25	1
9T293	1359056	SENDER - OIL TEMPERATURE	1359056 SENDER - OIL TEMPERATURE	$66.89	1
6615	1316048	TUBE - OIL PUMP INLET	1316048 TUBE - OIL PUMP INLET	$89.94	1
6675	1359896	PAN - ENGINE OIL	1359896 PAN - ENGINE OIL	$368.19	1
6710	1365260	GASKET - OIL PAN	1365260 GASKET - OIL PAN	$51.69	1
6730	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN For Japan Only Order With LR Prefix, Head Size: 13mm, Includes Seal, M14 X 1.5	$8.34	1
6734	1005593	GASKET	1005593 GASKET	$21.71	1
6750	1329275	INDICATOR - OIL LEVEL	1329275 INDICATOR - OIL LEVEL To: 5A910671	$7.53	1
6750	1374168	INDICATOR - OIL LEVEL	1374168 INDICATOR - OIL LEVEL From: 5A910672 / To: 6A999999	$7.28	1
6750	LR003387	INDICATOR - OIL LEVEL	LR003387 INDICATOR - OIL LEVEL From: 7A000001	$62.49	1
6754	1329276	TUBE - OIL LEVEL INDICATOR	1329276 TUBE - OIL LEVEL INDICATOR To: 5A910671	$16.62	1
6754	1380883	TUBE - OIL LEVEL INDICATOR	1380883 TUBE - OIL LEVEL INDICATOR From: 5A910672 / To: 6A999999	$17.32	1
6754	LR003388	TUBE - OIL LEVEL INDICATOR	LR003388 TUBE - OIL LEVEL INDICATOR From: 7A000001	$67.62	1

Oil Pan/Oil Level Indicator (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]
