Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140Kw), Euro Consolidated Directive 3, Eu2)...

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW), Euro Consolidated Directive 3, EU2)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108167PL BOLT $1.78 To Order
Photo Part No Description Price (each) Stock
PYC102190 CLIP - HOSE $3.95 To Order
Photo Part No Description Price (each) Stock
PEL500310 HOSE - RADIATOR $502.26 To Order
Photo Part No Description Price (each) Stock
PCH501072 HOSE - RADIATOR $25.09 To Order
Photo Part No Description Price (each) Stock
PIH500040 HOSE - RADIATOR $28.99 To Order
Photo Part No Description Price (each) Stock
PEH500201 HOSE - RADIATOR $29.78 To Order
Photo Part No Description Price (each) Stock
PCH501351 HOSE - WATER OUTLET $42.46 To Order
Photo Part No Description Price (each) Stock
SYC100540L CLIP $0.77 To Order
Photo Part No Description Price (each) Stock
PEH500034 HOSE - HEATER WATER $219.30 To Order
PEH500033 HOSE - HEATER WATER $77.98 To Order
Photo Part No Description Price (each) Stock
1351820 HOSE $76.81 To Order
LR011942 HOSE $132.45 To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE $59.73 To Order
Photo Part No Description Price (each) Stock
PYH500011 BRACKET $9.41 To Order
Photo Part No Description Price (each) Stock
PEH500181 HOSE $77.20 To Order
Photo Part No Description Price (each) Stock
PIH500101 HOSE $78.38 To Order
Photo Part No Description Price (each) Stock
DYC101410 Clamp $2.71 To Order
Photo Part No Description Price (each) Stock
PYC102010 CLAMP $3.01 To Order
View All

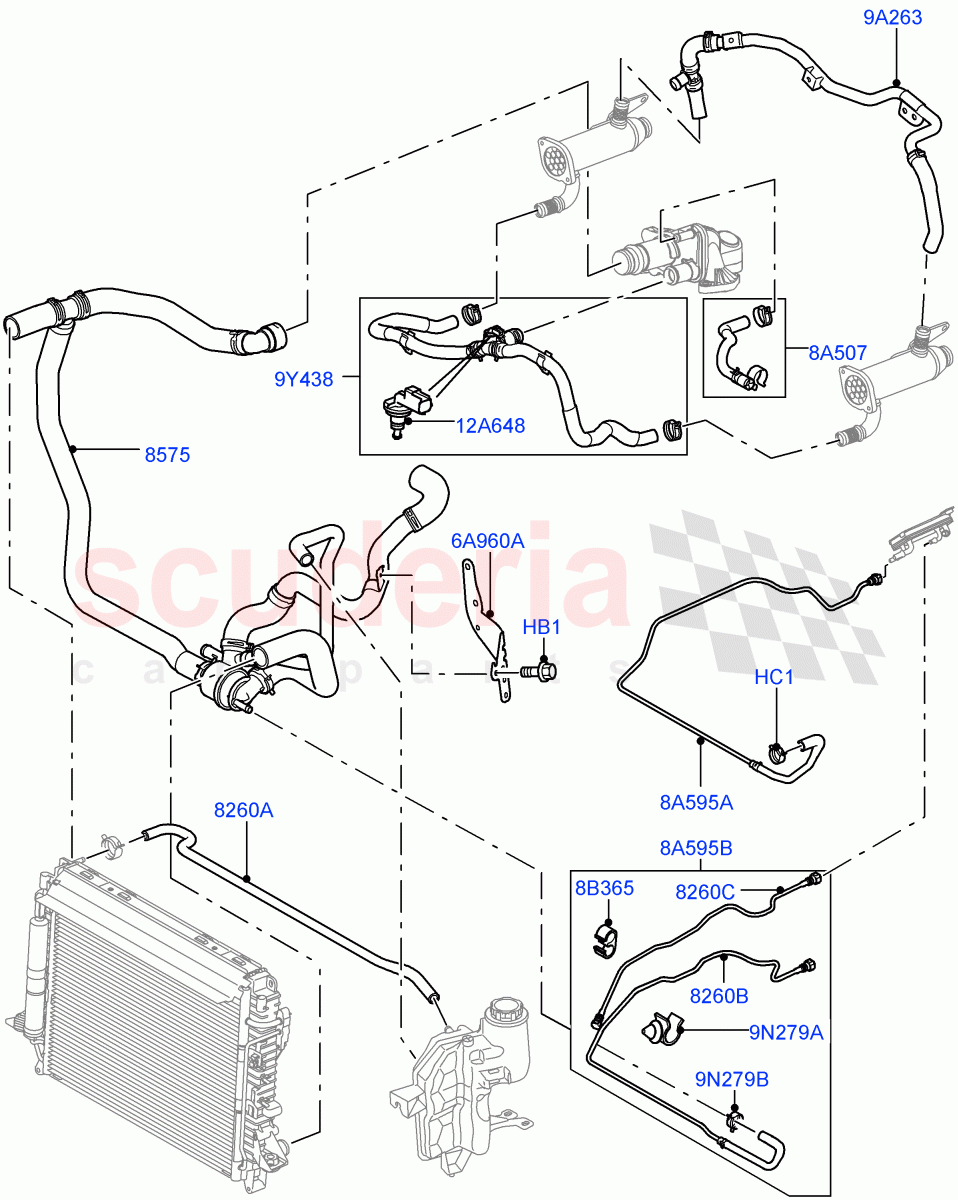

Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW), Euro Consolidated Directive 3, EU2) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108167PL
BOLT
M8 X 16MM 		$1.78 1
HC1 PYC102190
CLIP - HOSE
22MM, Hose 		$3.95 1
6A960A PYH500011
BRACKET 		$9.41 1
8A507 PCH501351
HOSE - WATER OUTLET 		$42.46 1
8A595A PEH500181
HOSE
For Normal Temperature Zones 		$77.20 1
8A595B PIH500101
HOSE
For Tropical Temperature Zones 		$78.38 1
8B365 SYC100540L
CLIP 		$0.77 5
9A263 PEH500034
HOSE - HEATER WATER
Cooled EGR, Outlet / From: 5A914112 		$219.30 1
9A263 PEH500033
HOSE - HEATER WATER
Cooled EGR, Outlet / To: 5A914111 		$77.98 1
9N279A DYC101410
Clamp 		$2.71 1
9N279B PYC102010
CLAMP 		$3.01 1
9Y438 1351820
HOSE
To: 6A999999 		$76.81 1
9Y438 LR011942
HOSE
From: 7A000001 		$132.45 1
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE 		$59.73 1
8260A PCH501072
HOSE - RADIATOR 		$25.09 1
8260B PIH500040
HOSE - RADIATOR 		$28.99 1
8260C PEH500201
HOSE - RADIATOR
For Tropical Temperature Zones / Radiator To Fuel Cooler 		$29.78 1
8575 PEL500310
HOSE - RADIATOR
Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom 		$502.26 1
