Intercooler/Air Ducts And Hoses (Lion Diesel 2.7 V6 (140Kw)) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Intercooler/Air Ducts And Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LYG500230 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
1383961 BOLT $2.05 To Order
Photo Part No Description Price (each) Stock
RPL500010 SPACER $6.92 To Order
Photo Part No Description Price (each) Stock
1383953 BRACKET $18.74 To Order
LR009547 BRACKET $40.90 To Order
LR012596 BRACKET - AIR DUCT SUPPORT $44.88 To Order
Photo Part No Description Price (each) Stock
LWN500030 ELBOW $38.54 To Order
Photo Part No Description Price (each) Stock
PCZ500020 SEAL $13.32 To Order
Photo Part No Description Price (each) Stock
PML500031 INTERCOOLER $521.06 To Order
Photo Part No Description Price (each) Stock
PNH500025 HOSE $87.36 To Order
Photo Part No Description Price (each) Stock
PNH500034 HOSE $234.65 To Order
Photo Part No Description Price (each) Stock
PNH500221 HOSE $120.76 To Order
PNH500223 HOSE $93.32 To Order
Photo Part No Description Price (each) Stock
PDG500030 PIN $1.36 To Order
Photo Part No Description Price (each) Stock
PYT500020 PIN $0.79 To Order
View All

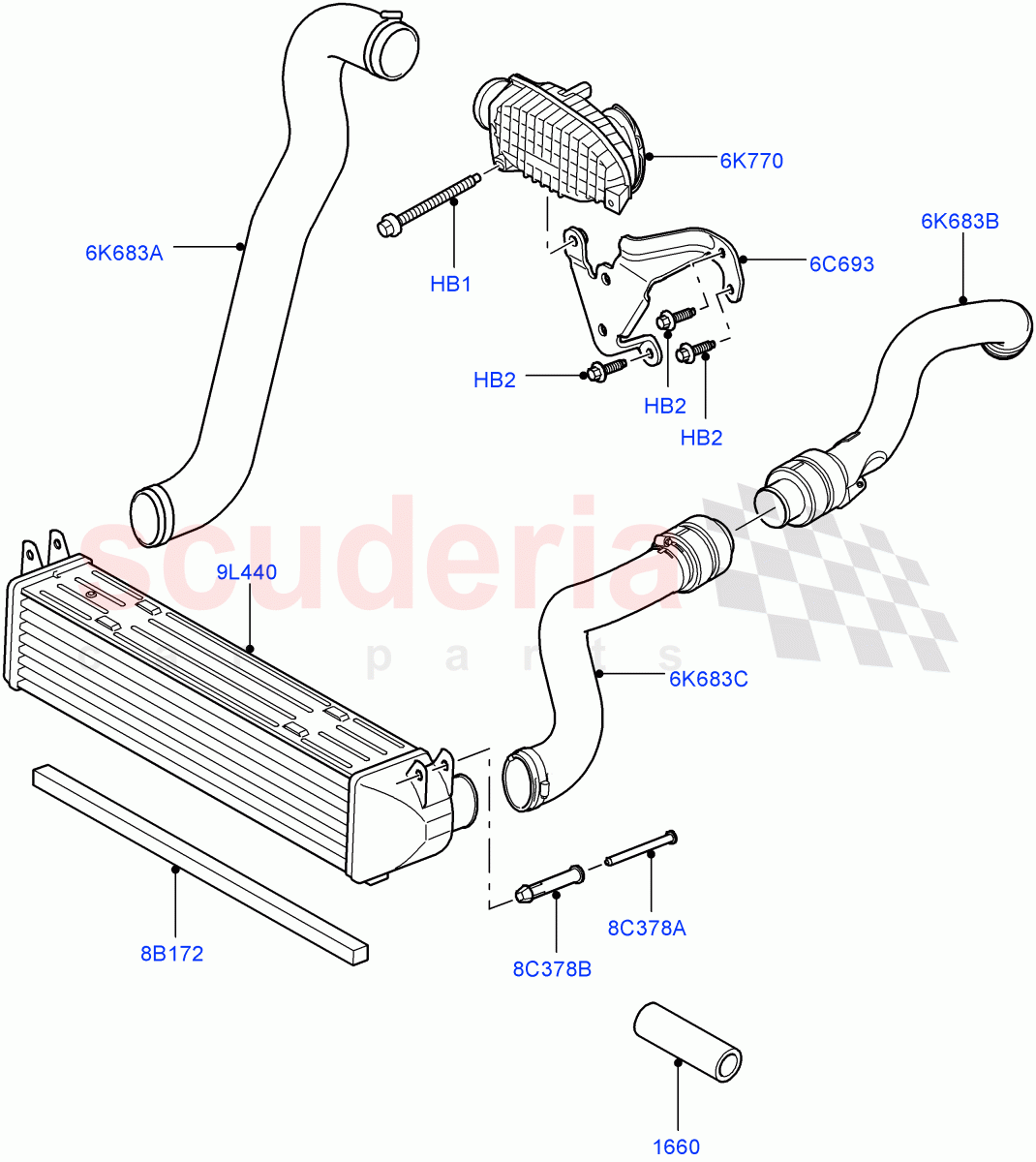

Intercooler/Air Ducts And Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LYG500230
BOLT
M6 		$1.16 1
HB2 1383961
BOLT
M6 x 35MM 		$2.05 3
6C693 1383953
BRACKET
To: 6A999999 		$18.74 1
6C693 LR009547
BRACKET
From: 7A000001 / To: 8A999999 		$40.90 1
6C693 LR012596
BRACKET - AIR DUCT SUPPORT
Air Duct Support / From: 9A000001 		$44.88 1
6K683A PNH500025
HOSE 		$87.36 1
6K683B PNH500034
HOSE 		$234.65 1
6K683C PNH500221
HOSE
To: 5A914111 		$120.76 1
6K683C PNH500223
HOSE
From: 5A914112 		$93.32 1
6K770 LWN500030
ELBOW
With Sensor 		$38.54 1
8B172 PCZ500020
SEAL 		$13.32 1
8C378A PDG500030
PIN
Outer 		$1.36 2
8C378B PYT500020
PIN
Inner 		$0.79 2
9L440 PML500031
INTERCOOLER 		$521.06 1
1660 RPL500010
SPACER
For Tropical Temperature Zones 		$6.92 1
