Side Trim (Luggage Compartment) (Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Side Trim (Luggage Compartment) (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.51 To Order
Photo Part No Description Price (each) Stock
LR031782 CLIP - TRIM $1.64 To Order
Photo Part No Description Price (each) Stock
LR036129 CLIP - TRIM $0.97 To Order
Photo Part No Description Price (each) Stock
LR063976 SCREW $2.93 To Order
LR063976 SCREW $2.93 To Order
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR034050 LAMP - INTERIOR $41.97 To Order
Photo Part No Description Price (each) Stock
LR114739 POCKET - LOAD COMPARTMENT $26.64 To Order
Photo Part No Description Price (each) Stock
LR081968 HOOK - LOADING COMPARTMENT $11.47 To Order
Photo Part No Description Price (each) Stock
LR114737 CAP - PILLAR TRIM AIR BAG $21.08 To Order
LR114738 CAP - PILLAR TRIM AIR BAG $23.88 To Order
Photo Part No Description Price (each) Stock
LR114740 PANEL - BODY SIDE REAR - INNER $101.34 To Order
LR133158 PANEL - BODY SIDE REAR - INNER $100.36 To Order
LR133159 PANEL - BODY SIDE REAR - INNER $103.68 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114742 PANEL - BODY SIDE REAR - INNER $103.68 To Order
LR133161 PANEL - BODY SIDE REAR - INNER $103.68 To Order
LR133160 PANEL - BODY SIDE REAR - INNER $103.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114744 COVER - SEAT BELT MOUNTING $10.64 To Order
LR114745 COVER - SEAT BELT MOUNTING $10.64 To Order
LR155518 COVER - SEAT BELT MOUNTING $10.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR135124 TRIM - LOAD COMPARTMENT - SIDE $413.21 To Order
LR155488 TRIM - LOAD COMPARTMENT - SIDE $428.51 To Order
Photo Part No Description Price (each) Stock
LR135125 TRIM - LOAD COMPARTMENT - SIDE $413.21 To Order
LR155492 TRIM - LOAD COMPARTMENT - SIDE $428.51 To Order
LR155498 TRIM - LOAD COMPARTMENT - SIDE $428.51 To Order
Photo Part No Description Price (each) Stock
LR127429 BEZEL - LUGGAGE COMPARTMENT SWITCH $15.77 IN STOCK
Photo Part No Description Price (each) Stock
LR114736 BEZEL - LUGGAGE COMPARTMENT SWITCH $88.07 To Order
LR127428 BEZEL - LUGGAGE COMPARTMENT SWITCH $15.77 To Order
Photo Part No Description Price (each) Stock
LR114733 SUPPORT - LOAD COMPARTMENT PANELS $119.76 To Order
LR155526 SUPPORT - LOAD COMPARTMENT PANELS $107.18 To Order
Photo Part No Description Price (each) Stock
LR114734 SUPPORT - LOAD COMPARTMENT PANELS $111.88 To Order
LR155525 SUPPORT - LOAD COMPARTMENT PANELS $107.18 To Order
View All

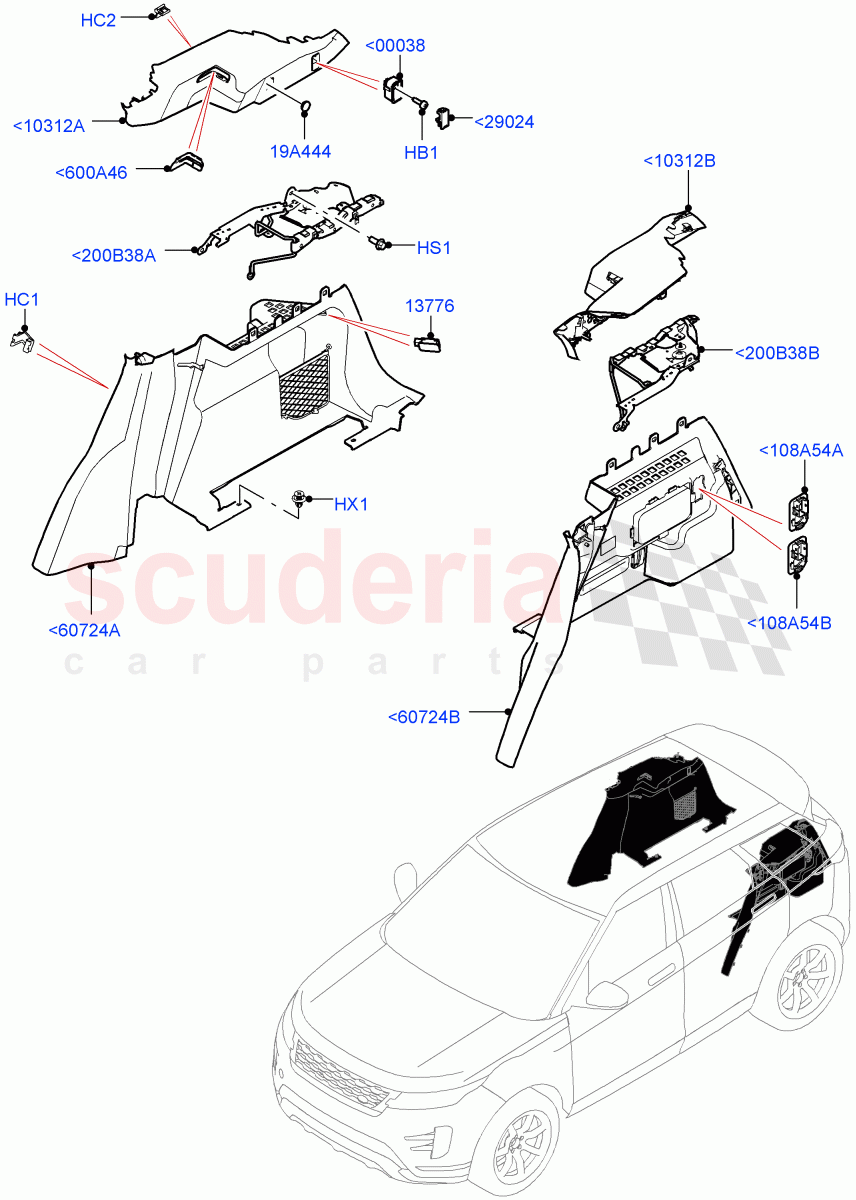

Side Trim (Luggage Compartment) (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<108A54A LR127429
BEZEL - LUGGAGE COMPARTMENT SWITCH
Less Trailer Towing Hitch
IN STOCK 		$15.77 1
<108A54B LR114736
BEZEL - LUGGAGE COMPARTMENT SWITCH
Tow Hitch Elec Deployable Swan Neck / To: MG575834 		$88.07 1
<108A54B LR127428
BEZEL - LUGGAGE COMPARTMENT SWITCH
Standard Wheelbase, Tow Hitch Elec Deployable Swan Neck / From: MG575835 		$15.77 1
<200B38A LR114733
SUPPORT - LOAD COMPARTMENT PANELS
Standard Wheelbase / RH 		$119.76 1
<200B38A LR155526
SUPPORT - LOAD COMPARTMENT PANELS
Long Wheelbase / RH / From: MG575835 		$107.18 1
<200B38B LR114734
SUPPORT - LOAD COMPARTMENT PANELS
Standard Wheelbase / LH 		$111.88 1
<200B38B LR155525
SUPPORT - LOAD COMPARTMENT PANELS
Long Wheelbase / LH / From: MG575835 		$107.18 1
<600A46 LR114744
COVER - SEAT BELT MOUNTING
Standard Wheelbase / RH 		$10.64 1
<600A46 LR114745
COVER - SEAT BELT MOUNTING
Standard Wheelbase / LH 		$10.64 1
<600A46 LR155518
COVER - SEAT BELT MOUNTING
Long Wheelbase / RH / From: MG575835 		$10.47 1
<600A46 LR155517
COVER - SEAT BELT MOUNTING
Long Wheelbase / LH / From: MG575835 		$10.47 1
<00038 LR114739
POCKET - LOAD COMPARTMENT
RH/LH 		$26.64 2
<10312A LR114740
PANEL - BODY SIDE REAR - INNER
Hi Line Audio System - 600 W / RH / To: LG562715 		$101.34 1
<10312A LR133158
PANEL - BODY SIDE REAR - INNER
Premium Audio 1280 W / RH / To: MG575834 		$100.36 1
<10312A LR133159
PANEL - BODY SIDE REAR - INNER
Standard Audio (Base) / RH / From: LG562716 / To: MG575834 		$103.68 1
<10312A LR155469
PANEL - BODY SIDE REAR - INNER
Hi Line Audio System - 600 W / RH / From: MG575835 		$107.47 1
<10312A LR155472
PANEL - BODY SIDE REAR - INNER
Premium Audio 1280 W / RH / From: MG575835 		$107.47 1
<10312B LR114742
PANEL - BODY SIDE REAR - INNER
Standard Audio (Base) / LH / To: LG562710 		$103.68 1
<10312B LR133161
PANEL - BODY SIDE REAR - INNER
Premium Audio 1280 W / LH / To: MG575834 		$103.68 1
<10312B LR133160
PANEL - BODY SIDE REAR - INNER
Hi Line Audio System - 600 W / LH / From: LG562711 / To: MG575834 		$103.68 1
<10312B LR155484
PANEL - BODY SIDE REAR - INNER
Hi Line Audio System - 600 W / LH / From: MG575835 		$107.47 1
<29024 LR081968
HOOK - LOADING COMPARTMENT
RH/LH 		$11.47 2
<60724A LR135124
TRIM - LOAD COMPARTMENT - SIDE
Less Load Retainer Luggage, Standard Wheelbase / RH 		$413.21 1
<60724A LR155488
TRIM - LOAD COMPARTMENT - SIDE
Long Wheelbase / RH / From: MG575835 		$428.51 1
<60724B LR135125
TRIM - LOAD COMPARTMENT - SIDE
Less Load Retainer Luggage, Standard Wheelbase / LH 		$413.21 1
<60724B LR155492
TRIM - LOAD COMPARTMENT - SIDE
Less Electric Engine Battery, Long Wheelbase / LH / From: MG575835 		$428.51 1
<60724B LR155498
TRIM - LOAD COMPARTMENT - SIDE
Electric Engine Battery-PHEV, Long Wheelbase / LH / From: MG575835 		$428.51 1
HB1 LR033002
BOLT AND WASHER - TORX HEAD
M6 X 20.5, Torx 		$1.51 4
HC1 LR031782
CLIP - TRIM
0.8-1.4 		$1.64 10
HC2 LR036129
CLIP - TRIM
Clip 0.8 + 18.4 X 4.5 X 1.25 Push In Steel 		$0.97 2
HS1 LR063976
SCREW
Standard Wheelbase / M10 X 25MM 		$2.93 8
HS1 LR063976
SCREW
Long Wheelbase / M10 X 25MM / From: MG575835 		$2.93 6
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5
IN STOCK 		$1.47 10
19A444 LR114737
CAP - PILLAR TRIM AIR BAG
Light Oyster Headliner / RH/LH 		$21.08 2
19A444 LR114738
CAP - PILLAR TRIM AIR BAG
Ebony Headliner / RH/LH 		$23.88 2
13776 LR034050
LAMP - INTERIOR
RH/LH 		$41.97 2
