Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Battery And Mountings (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500570 NUT - ADJUSTING $2.83 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR114227 SHIELD - REAR FLOOR PAN $43.60 To Order
LR135974 SHIELD - REAR FLOOR PAN $151.63 To Order
LR114227 SHIELD - REAR FLOOR PAN $43.60 To Order
Photo Part No Description Price (each) Stock
LR117869 CLAMP $22.51 To Order
Photo Part No Description Price (each) Stock
LR135223 SUPPORT - BATTERY TRAY $127.54 To Order
LR135225 SUPPORT - BATTERY TRAY $127.52 To Order
Photo Part No Description Price (each) Stock
LR083716 TERMINAL - BATTERY MANAGEMENT SYSTEM $53.48 To Order
Photo Part No Description Price (each) Stock
LR124182 COVER - WIRING $7.35 To Order
Photo Part No Description Price (each) Stock
LR137505 GROMMET $16.57 To Order
Photo Part No Description Price (each) Stock
LR135276 TRAY - BATTERY $1,352.79 To Order
LR135277 TRAY - BATTERY $1,350.08 To Order
Photo Part No Description Price (each) Stock
LR162030 REINFORCEMENT - BATTERY TRAY $14.06 To Order
LR162031 REINFORCEMENT - BATTERY TRAY $14.06 To Order
Photo Part No Description Price (each) Stock
LR106759 BATTERY $443.61 To Order
LR094611 BATTERY $383.14 To Order
LR104510 Battery $275.35 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR047630 BATTERY NON SPILLABLE $277.47 To Order
Photo Part No Description Price (each) Stock
LR114224 TRAY - BATTERY $146.67 To Order
LR114224 TRAY - BATTERY $146.67 To Order
LR135973 TRAY - BATTERY $118.56 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114225 SUPPORT - BATTERY TRAY $145.96 To Order
Photo Part No Description Price (each) Stock
LR114226 SUPPORT - BATTERY TRAY $145.12 To Order
LR128941 SUPPORT - BATTERY TRAY $145.12 To Order
LR135616 SUPPORT - BATTERY TRAY $139.43 To Order
Photo Part No Description Price (each) Stock
LR157912 BATTERY MANAGEMENT SYSTEM $69.13 IN STOCK
LR157913 BATTERY MANAGEMENT SYSTEM $79.91 To Order
LR157913 BATTERY MANAGEMENT SYSTEM $79.91 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR019012 HEAT SHIELD - BATTERY $30.23 To Order
Photo Part No Description Price (each) Stock
LR138071 HEAT SHIELD - BATTERY $27.21 To Order
Photo Part No Description Price (each) Stock
LR135288 BRACKET - BATTERY HOLD DOWN $49.90 To Order
Photo Part No Description Price (each) Stock
LR135299 BRACKET - BATTERY HOLD DOWN $43.48 To Order
Photo Part No Description Price (each) Stock
LR114098 TUBE - VENTILATION $72.63 To Order
LR114098 TUBE - VENTILATION $72.63 To Order
Photo Part No Description Price (each) Stock
LR135127 TUBE - VENTILATION $44.22 To Order
Photo Part No Description Price (each) Stock
LR135128 TUBE - VENTILATION $57.29 To Order
View All

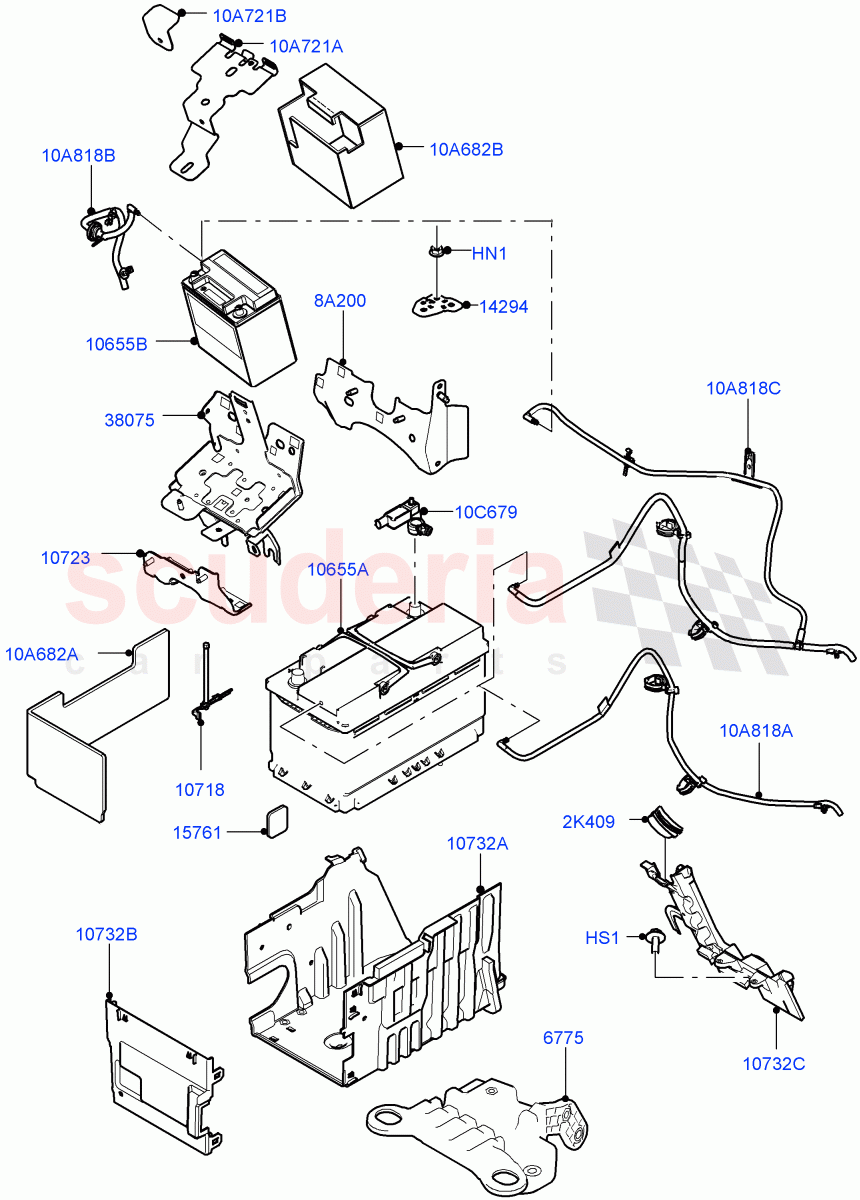

Battery And Mountings (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH500570
NUT - ADJUSTING
M6 		$2.83 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.23 3
2K409 LR137505
GROMMET
Electric Engine Battery-PHEV / From: LH000001 		$16.57 1
8A200 LR162030
REINFORCEMENT - BATTERY TRAY
RHD / Battery Tray / From: LH000001 		$14.06 1
8A200 LR162031
REINFORCEMENT - BATTERY TRAY
LHD / Battery Tray / From: LH000001 		$14.06 1
10A682A LR019012
HEAT SHIELD - BATTERY
Extra High Engine Cooling 		$30.23 1
10A682B LR138071
HEAT SHIELD - BATTERY
Electric Engine Battery-PHEV / From: LH000001 		$27.21 1
10A721A LR135288
BRACKET - BATTERY HOLD DOWN
Electric Engine Battery-PHEV / From: LH000001 		$49.90 1
10A721B LR135299
BRACKET - BATTERY HOLD DOWN
Electric Engine Battery-PHEV / From: LH000001 		$43.48 1
10A818A LR114098
TUBE - VENTILATION
To: KH999999 		$72.63 1
10A818A LR114098
TUBE - VENTILATION
Less Electric Engine Battery / From: LH000001 		$72.63 1
10A818B LR135127
TUBE - VENTILATION
Electric Engine Battery-PHEV, LHD / From: LH000001 		$44.22 1
10A818C LR135128
TUBE - VENTILATION
Electric Engine Battery-PHEV, RHD / From: LH000001 		$57.29 1
10C679 LR157912
BATTERY MANAGEMENT SYSTEM
To: KH995320
IN STOCK 		$69.13 1
10C679 LR157913
BATTERY MANAGEMENT SYSTEM
From: LH000001 / To: MH150184 		$79.91 1
10C679 LR157913
BATTERY MANAGEMENT SYSTEM
From: MH150185 		$79.91 1
10C679 LR157912
BATTERY MANAGEMENT SYSTEM
From: KH995321 / To: KH999999
IN STOCK 		$69.13 1
6775 LR114227
SHIELD - REAR FLOOR PAN
1.5L AJ20P3 Petrol High / To: LH999999 		$43.60 1
6775 LR135974
SHIELD - REAR FLOOR PAN
1.5L AJ20P3 Petrol High PHEV / From: LH000001 		$151.63 1
6775 LR114227
SHIELD - REAR FLOOR PAN
2.0L AJ21D4 Diesel Mid / From: MH000001 		$43.60 1
10655A LR106759
BATTERY
12V-80AH, 800A / To: LH116586 		$443.61 1
10655A LR094611
BATTERY
With H6 Battery / 12V-70AH, 760A 		$383.14 1
10655A LR104510
Battery
(+)"Canada", (+)"USA", 12V, 850 Amp, AGM(Absorbed Glass Mat), H7 		$275.35 1
10655A LR108509
WET NON SPILLABLE BATTERY
(+)"IND" / 12V-80AH, 800A, AGM(Absorbed Glass Mat), H7 / From: LH033841 		$342.24 1
10655A LR154615
BATTERY
12V-80AH, 800A, AGM(Absorbed Glass Mat), H7 / From: LH116587 		$422.47 1
10655B LR047630
BATTERY NON SPILLABLE
Electric Engine Battery-PHEV / Auxiliary / From: LH000001 		$277.47 1
10718 LR117869
CLAMP 		$22.51 1
10723 LR135223
SUPPORT - BATTERY TRAY
Electric Engine Battery-PHEV, RHD / From: LH000001 		$127.54 1
10723 LR135225
SUPPORT - BATTERY TRAY
Electric Engine Battery-PHEV, LHD / From: LH000001 		$127.52 1
10732A LR114224
TRAY - BATTERY
Bottom / To: KH999999 		$146.67 1
10732A LR114224
TRAY - BATTERY
2.0L AJ20D4 Diesel High PTA / Bottom / From: LH000001 / To: LH999999 		$146.67 1
10732A LR135973
TRAY - BATTERY
1.5L AJ20P3 Petrol High PHEV / Bottom / From: LH000001 		$118.56 1
10732A LR114224
TRAY - BATTERY
1.5L AJ20P3 Petrol High / Bottom / From: MH000001 		$146.67 1
10732B LR114225
SUPPORT - BATTERY TRAY
Front Side 		$145.96 1
10732C LR114226
SUPPORT - BATTERY TRAY
Rear Side / To: LH001359 		$145.12 1
10732C LR128941
SUPPORT - BATTERY TRAY
Rear Side / From: LH001360 / To: LH030050 		$145.12 1
10732C LR135616
SUPPORT - BATTERY TRAY
Rear Side / From: LH030051 		$139.43 1
14294 LR083716
TERMINAL - BATTERY MANAGEMENT SYSTEM 		$53.48 1
15761 LR124182
COVER - WIRING
Less Electric Engine Battery / Non Hybrid Battery Box Blanking Plug 		$7.35 1
38075 LR135276
TRAY - BATTERY
Electric Engine Battery-PHEV, RHD / From: LH000001 		$1,352.79 1
38075 LR135277
TRAY - BATTERY
Electric Engine Battery-PHEV, LHD / From: LH000001 		$1,350.08 1
