Manual Transmission External Cmpnts (6 Speed Manual Trans Bg6, Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Manual Transmission External Cmpnts (6 Speed Manual Trans BG6, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR113582 PLUG - ENGINE $15.10 To Order
Photo Part No Description Price (each) Stock
LR113838 PLUG - OIL $5.49 To Order
Photo Part No Description Price (each) Stock
LR113567 WASHER - DRAIN PLUG $8.50 To Order
Photo Part No Description Price (each) Stock
LR113564 HOUSING - TRANSMISSION GEAR SHIFT $570.88 To Order
Photo Part No Description Price (each) Stock
LR113565 BRACKET - CONTROL CABLE $319.19 To Order
Photo Part No Description Price (each) Stock
LR113562 SEAL - OIL $28.36 To Order
Photo Part No Description Price (each) Stock
LR113569 SEAL - OUTPUT SHAFT OIL $80.85 To Order
Photo Part No Description Price (each) Stock
LR113568 SEAL - OUTPUT SHAFT OIL $91.15 To Order
LR113570 SEAL - OUTPUT SHAFT OIL $87.22 To Order
Photo Part No Description Price (each) Stock
LR113571 SEAL - OUTPUT SHAFT OIL $92.99 To Order
Photo Part No Description Price (each) Stock
LR113581 RETAINER - INTERLOCK SPRING $59.68 To Order
Photo Part No Description Price (each) Stock
LR113574 BOLT - HEX.HEAD $8.71 To Order
Photo Part No Description Price (each) Stock
LR113575 BOLT - HEX.HEAD $10.46 To Order
Photo Part No Description Price (each) Stock
LR113576 BOLT - HEX.HEAD $10.58 To Order
Photo Part No Description Price (each) Stock
LR113577 BOLT - HEX.HEAD $11.04 To Order
Photo Part No Description Price (each) Stock
LR113573 BOLT - HEX.HEAD $15.40 To Order
Photo Part No Description Price (each) Stock
LR113578 SENSOR $205.43 To Order
Photo Part No Description Price (each) Stock
LR113579 SENSOR $274.12 To Order
View All

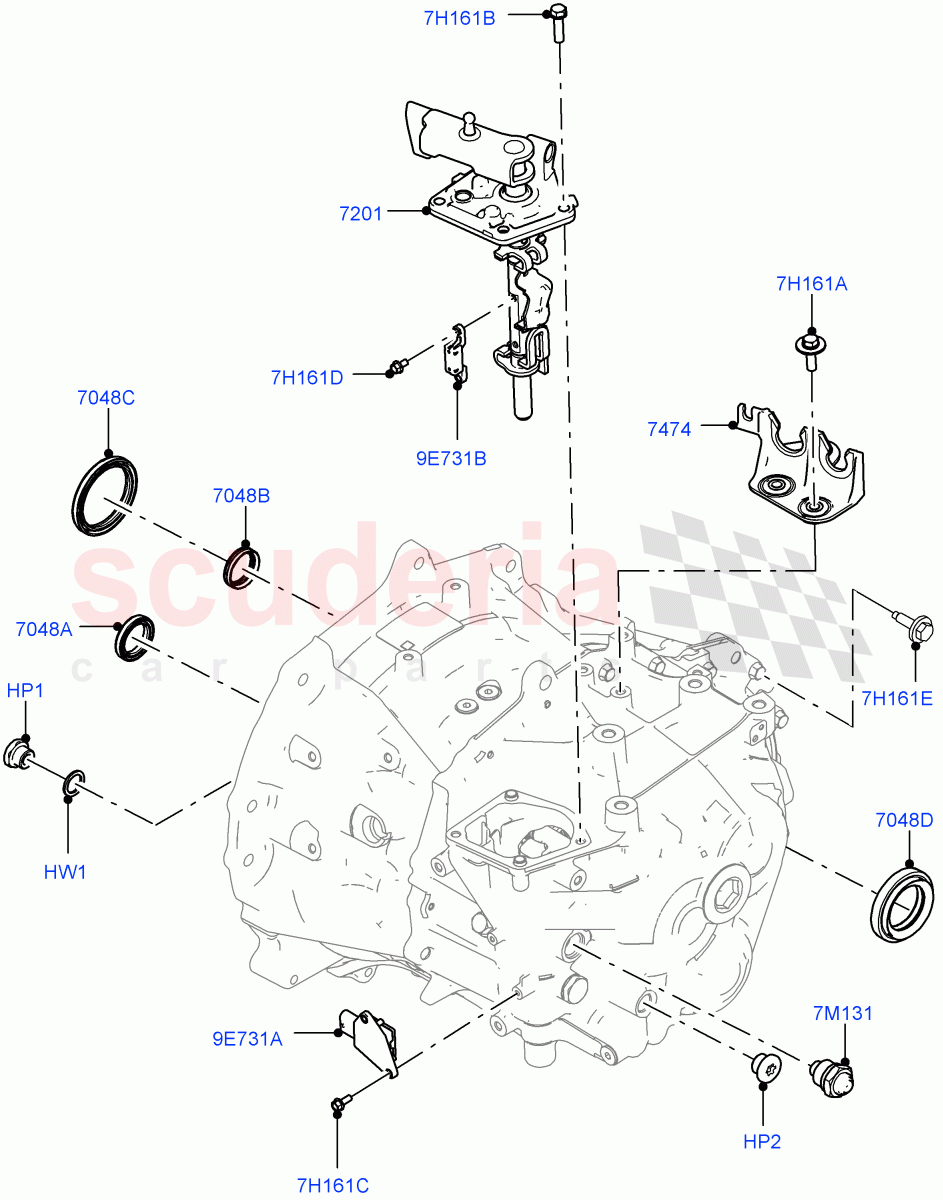

Manual Transmission External Cmpnts (6 Speed Manual Trans BG6, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HP1 LR113582
PLUG - ENGINE
Drain 		$15.10 1
HP2 LR113838
PLUG - OIL
FILLER 		$5.49 1
HW1 LR113567
WASHER - DRAIN PLUG
Inner 		$8.50 1
7H161A LR113574
BOLT - HEX.HEAD
Bracket 		$8.71 3
7H161B LR113575
BOLT - HEX.HEAD
Gearshift Lever 		$10.46 4
7H161C LR113576
BOLT - HEX.HEAD
Gear Position Sensor 		$10.58 2
7H161D LR113577
BOLT - HEX.HEAD
Magnetic Shift Position Sensor 		$11.04 2
7H161E LR113573
BOLT - HEX.HEAD 		$15.40 18
7M131 LR113581
RETAINER - INTERLOCK SPRING 		$59.68 1
9E731A LR113578
SENSOR
Gear Position Sensor 		$205.43 1
9E731B LR113579
SENSOR
Magnetic Shift Position Sensor 		$274.12 1
7048A LR113562
SEAL - OIL
Input Shaft 		$28.36 1
7048B LR113569
SEAL - OUTPUT SHAFT OIL
All Wheel Drive / RH, Inner, Output Shaft 		$80.85 1
7048C LR113568
SEAL - OUTPUT SHAFT OIL
All Wheel Drive / RH, Outer, Output Shaft 		$91.15 1
7048C LR113570
SEAL - OUTPUT SHAFT OIL
Front Wheel Drive / RH, Output Shaft 		$87.22 1
7048D LR113571
SEAL - OUTPUT SHAFT OIL
LH, Output Shaft 		$92.99 1
7201 LR113564
HOUSING - TRANSMISSION GEAR SHIFT 		$570.88 1
7474 LR113565
BRACKET - CONTROL CABLE 		$319.19 1
