Name: Inlet Manifold (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA)
Rating: 4.4 (1 reviews)

Inlet Manifold (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L...

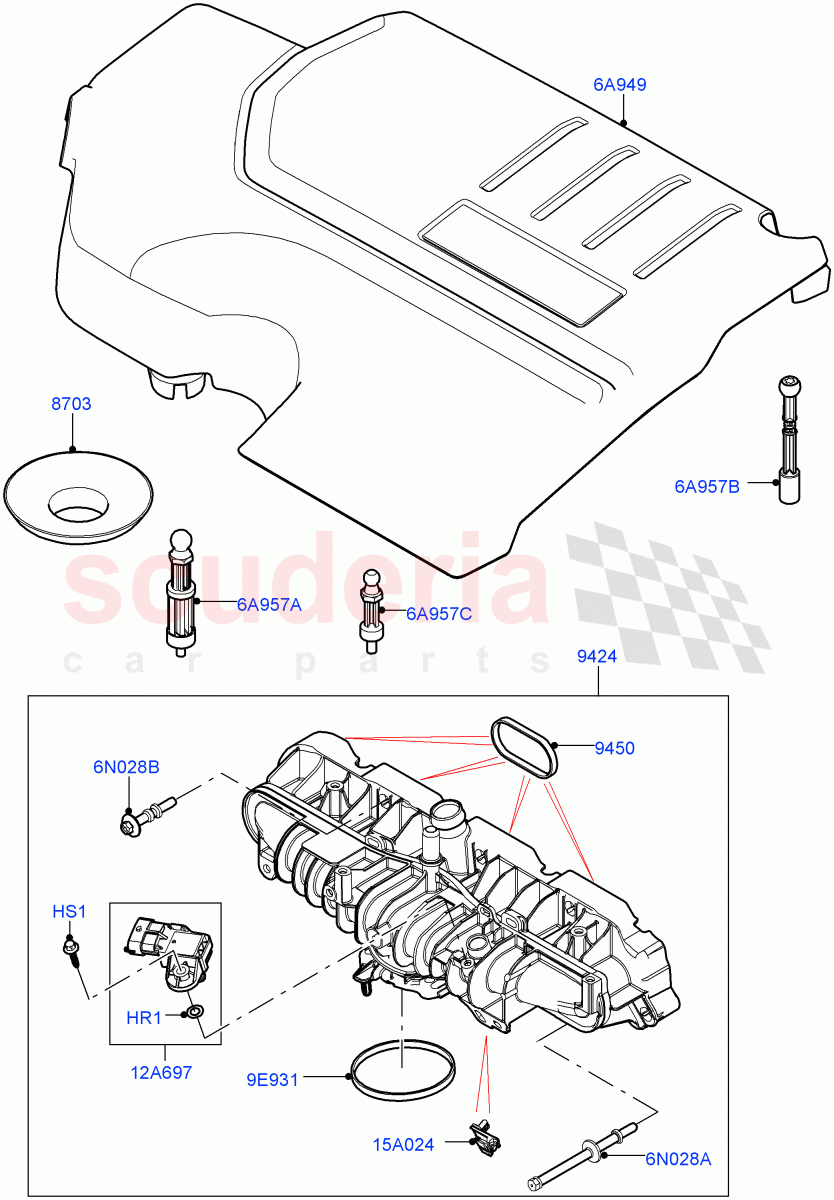

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$13.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106371	INLET MANIFOLD WITH INTERCOOLER	$769.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	$12.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094077	COVER - ENGINE TOP	$291.68	To Order
	LR174497	Cover	$280.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$16.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$140.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107548	CLIP - CABLE	$5.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	$7.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022884	STUD - BALL	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091773	BOLT - SPECIAL	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$5.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor IN STOCK	$4.68	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor	$0.63	1
6A949	LR094077	COVER - ENGINE TOP	LR094077 COVER - ENGINE TOP Engine / To: NH175412	$291.68	1
6A949	LR174497	Cover	LR174497 Cover Engine / From: NH175413	$280.23	1
6A957A	LR010871	STUD - BALL	LR010871 STUD - BALL Ball Stud, Engine Cover, RH Front	$7.09	1
6A957B	LR022884	STUD - BALL	LR022884 STUD - BALL Ball Stud, Engine Cover, LH Rear	$6.74	1
6A957C	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER Ball Stud, Engine Cover, LH Front	$6.97	1
6N028A	LR091773	BOLT - SPECIAL	LR091773 BOLT - SPECIAL M6 x 97MM, Manifold To Cylinder Head, Special Bolt	$6.74	1
6N028B	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head	$5.05	6
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake	$16.01	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Pressure	$140.04	1
15A024	LR107548	CLIP - CABLE	LR107548 CLIP - CABLE Clip	$5.53	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill	$13.42	1
9424	LR106371	INLET MANIFOLD WITH INTERCOOLER	LR106371 INLET MANIFOLD WITH INTERCOOLER	$769.21	1
9450	LR091766	GASKET - INTAKE MANIFOLD IN STOCK	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold IN STOCK	$12.33	4

Inlet Manifold (2.0L Aj20P4 Petrol High Pta, Halewood (Uk), 2.0L Aj20P4 Petrol E100 Pta, 2.0L...
