Air Conditioning Condensr/Compressr (Halewood (Uk), Electric Engine Battery-Phev) ((V) Fromlh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Air Conditioning Condensr/Compressr (Halewood (UK), Electric Engine Battery-PHEV) ((V) FROMLH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
LR076836 BOLT $4.80 To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT $0.63 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
LR002724 O-RING $5.37 To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING $4.40 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
VYP500080 BOLT AND WASHER - HEX.HEAD $0.69 IN STOCK
Photo Part No Description Price (each) Stock
LR015156 STUD $1.57 To Order
Photo Part No Description Price (each) Stock
LR116447 STUD $4.03 To Order
Photo Part No Description Price (each) Stock
LR135236 CONDENSER $643.19 To Order
Photo Part No Description Price (each) Stock
LR133558 VALVE - SHUT-OFF $224.11 To Order
LR161999 VALVE - SHUT-OFF $230.34 To Order
Photo Part No Description Price (each) Stock
LR135180 TUBE- A/C EVAPORATOR INLET & OUTLET $278.55 To Order
LR135181 TUBE- A/C EVAPORATOR INLET & OUTLET $369.73 To Order
LR139939 TUBE- A/C EVAPORATOR INLET & OUTLET $283.02 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR135187 COOLER - TRACTION BATTERY $278.83 To Order
LR146151 COOLER - TRACTION BATTERY $282.31 To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $240.23 To Order
Photo Part No Description Price (each) Stock
LR101280 SENSOR - REFRIGERANT PRESSURE $121.32 To Order
Photo Part No Description Price (each) Stock
LR135175 HOSE - AIR CONDITIONING $128.81 To Order
Photo Part No Description Price (each) Stock
LR135186 TUBE- A/C EVAPORATOR INLET & OUTLET $233.54 To Order
Photo Part No Description Price (each) Stock
LR135183 BRACKET - HEATER MOUNTING $26.00 To Order
Photo Part No Description Price (each) Stock
LR135188 COMPRESSOR - AIR CONDITIONING $1,407.73 To Order
LR143909 COMPRESSOR - AIR CONDITIONING $1,800.03 To Order
Photo Part No Description Price (each) Stock
LR135167 BRACKET - COMPRESSOR $68.31 To Order
Photo Part No Description Price (each) Stock
LR117494 O-RING $2.71 To Order
Photo Part No Description Price (each) Stock
LR117495 O-RING $2.81 To Order
Photo Part No Description Price (each) Stock
LR003185 INSERT - RING $16.61 To Order
Photo Part No Description Price (each) Stock
LR003186 INSERT - RING $16.61 To Order
Photo Part No Description Price (each) Stock
LR135178 TUBE AND HOSE-A/C COMPRESSOR OUTLET $210.78 To Order
LR150020 TUBE AND HOSE-A/C COMPRESSOR OUTLET $210.78 To Order
Photo Part No Description Price (each) Stock
LR135177 TUBE AND HOSE-A/C COMPRESSOR INLET $211.03 To Order
LR150021 TUBE AND HOSE-A/C COMPRESSOR INLET $241.29 To Order
LR159945 TUBE AND HOSE-A/C COMPRESSOR INLET $263.17 To Order
Photo Part No Description Price (each) Stock
LR135190 HOSE - AIR CONDITIONING $157.38 To Order
Photo Part No Description Price (each) Stock
LR135176 TUBE AND HOSE-A/C COMPRESSOR INLET $160.60 To Order
View All

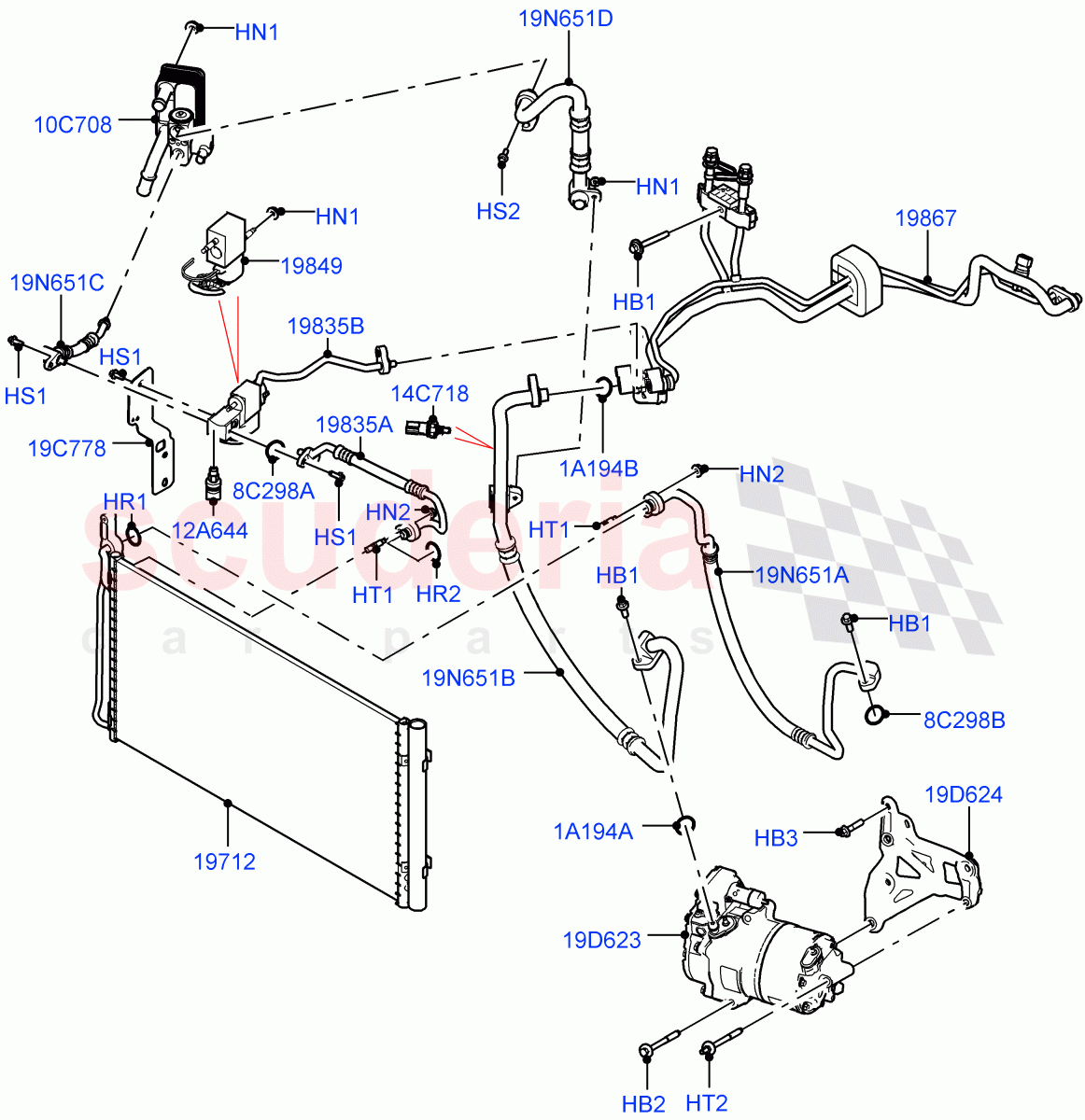

Air Conditioning Condensr/Compressr (Halewood (UK), Electric Engine Battery-PHEV) ((V) FROMLH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: LH000001
IN STOCK 		$3.57 3
HB2 LR076836
BOLT
Hexagonal Head, M8 X 96.5, To Compressor / From: LH000001 		$4.80 2
HB3 FB108076
BOLT
Air Conditioning Compressor Bracket, M8 X 35MM / From: LH000001 		$0.63 3
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: LH000001
IN STOCK 		$1.47 5
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: LH000001 		$1.97 4
HR1 LR002724
O-RING
13.7 X 2.5MM / From: LH000001 		$5.37 1
HR2 LR002719
O-RING
9.5 X 2.5MM / From: LH000001 		$4.40 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: LH000001
IN STOCK 		$1.24 3
HS2 VYP500080
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: LH000001
IN STOCK 		$0.69 2
HT1 LR015156
STUD
M8 X 12.5 + M8 X 14.5 / From: LH000001 		$1.57 2
HT2 LR116447
STUD
Compressor Mounting, Hexagonal Head, M8 x 97.5mm + M6 x 15mm / From: LH000001 		$4.03 1
1A194A LR117494
O-RING
18.97 X 11.05 / From: LH000001 		$2.71 1
1A194B LR117495
O-RING
25.12 X 17.03 / From: LH000001 		$2.81 1
8C298A LR003185
INSERT - RING
From: LH000001 		$16.61 1
8C298B LR003186
INSERT - RING 		$16.61 1
10C708 LR135187
COOLER - TRACTION BATTERY
From: LH000001 / To: MH146401 		$278.83 1
10C708 LR146151
COOLER - TRACTION BATTERY
From: MH146402 		$282.31 1
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Refrigerant Pressure Sensor / From: LH000001 		$240.23 1
14C718 LR101280
SENSOR - REFRIGERANT PRESSURE
From: LH000001 		$121.32 1
19C778 LR135183
BRACKET - HEATER MOUNTING
From: LH000001 		$26.00 1
19D623 LR135188
COMPRESSOR - AIR CONDITIONING
From: LH000001 / To: LH104003 		$1,407.73 1
19D623 LR143909
COMPRESSOR - AIR CONDITIONING
From: LH104004 		$1,800.03 1
19D624 LR135167
BRACKET - COMPRESSOR
To Compressor / From: LH000001 		$68.31 1
19N651A LR135178
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Compressor Outlet / From: LH000001 / To: MH137330 		$210.78 1
19N651A LR150020
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Compressor Outlet / From: MH137331 		$210.78 1
19N651B LR135177
TUBE AND HOSE-A/C COMPRESSOR INLET
Compressor Inlet / From: LH000001 / To: MH132967 		$211.03 1
19N651B LR150021
TUBE AND HOSE-A/C COMPRESSOR INLET
Compressor Inlet / From: MH132968 / To: NH170253 		$241.29 1
19N651B LR159945
TUBE AND HOSE-A/C COMPRESSOR INLET
Compressor Inlet / From: NH170254 		$263.17 1
19N651C LR135190
HOSE - AIR CONDITIONING
SOV To Chiller / From: LH000001 		$157.38 1
19N651D LR135176
TUBE AND HOSE-A/C COMPRESSOR INLET
For Battery Chiller / From: LH000001 		$160.60 1
19712 LR135236
CONDENSER
From: LH000001 		$643.19 1
19835A LR135175
HOSE - AIR CONDITIONING
Condenser To SOV / From: LH000001 		$128.81 1
19835B LR135186
TUBE- A/C EVAPORATOR INLET & OUTLET
With Bracket / From: LH000001 		$233.54 1
19849 LR133558
VALVE - SHUT-OFF
From: LH000001 / To: MH153915 		$224.11 1
19849 LR161999
VALVE - SHUT-OFF
From: MH153916 		$230.34 1
19867 LR135180
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / Evaporator Inlet/Outlet / From: LH000001 / To: LH113446 		$278.55 1
19867 LR135181
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / Evaporator Inlet/Outlet / From: LH000001 / To: LH105748 		$369.73 1
19867 LR139939
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / Evaporator Inlet/Outlet / From: LH113447 / To: LH999999 		$283.02 1
19867 LR139937
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / Evaporator Inlet/Outlet / From: LH105749 / To: LH999999 		$258.61 1
19867 LR140634
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / Evaporator Inlet/Outlet / From: MH000001 		$311.59 1
19867 LR140638
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / Evaporator Inlet/Outlet / From: MH000001 / To: MH999999 		$240.90 1
19867 LR140638
TUBE- A/C EVAPORATOR INLET & OUTLET
A/C HF01234YF w/o Intrnl HT Exchng / Evaporator Inlet/Outlet / From: NH000001 		$240.90 1
