Headlamps And Front Flasher Lamps (Changsu (China)) ((V) Fromkg006088)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Headlamps And Front Flasher Lamps (Changsu (China)) ((V) FROMKG006088)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR117860 SCREW $1.58 IN STOCK
Photo Part No Description Price (each) Stock
LR117858 RETAINER $0.95 IN STOCK
Photo Part No Description Price (each) Stock
LR133653 HEADLAMP AND FLASHER $3,195.41 To Order
LR133657 HEADLAMP AND FLASHER $3,195.41 To Order
LR135968 HEADLAMP AND FLASHER $2,211.01 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025160 CAP - SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR124533 BRACKET - HEADLAMP MOUNTING $23.07 To Order
LR124534 BRACKET - HEADLAMP MOUNTING $23.07 To Order
View All

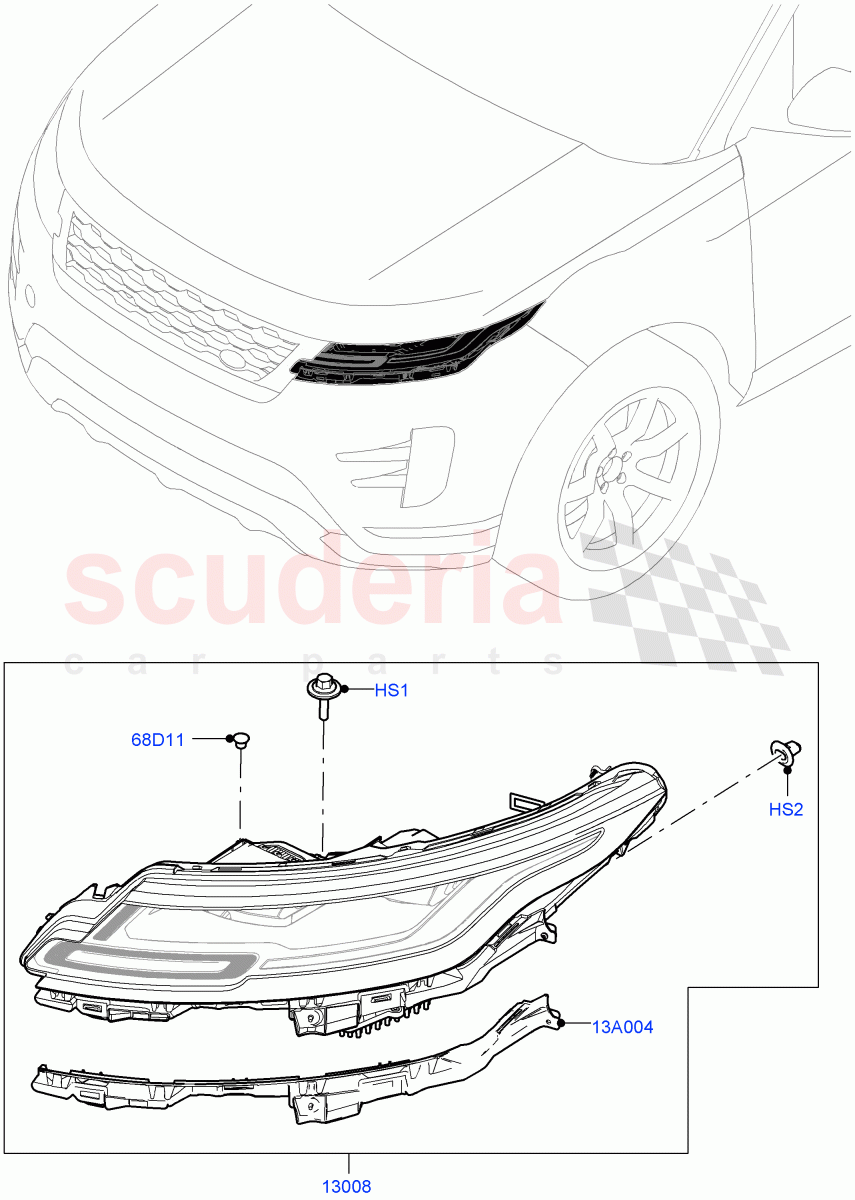

Headlamps And Front Flasher Lamps (Changsu (China)) ((V) FROMKG006088) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR117860
SCREW
Bolt And Washer, Hexagonal Head, M6 x 27MM / From: KG006088
IN STOCK 		$1.58 6
HS2 LR117858
RETAINER
Retainer / From: KG006088
IN STOCK 		$0.95 2
13A004 LR124533
BRACKET - HEADLAMP MOUNTING
RH 		$23.07 1
13A004 LR124534
BRACKET - HEADLAMP MOUNTING
LH 		$23.07 1
68D11 LR025160
CAP - SCREW
H/Lamp Operation FM VSS 108 Pattern 		$0.99 2
13008 LR133653
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / RH / From: KG006088 		$3,195.41 1
13008 LR133657
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Matrix / LH / From: KG006088 		$3,195.41 1
13008 LR135968
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: KG006088 / To: LG562204 		$2,211.01 1
13008 LR135969
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: KG006088 / To: LG562204 		$2,095.75 1
13008 LR135967
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / RH / From: LG562205 		$2,387.90 1
13008 LR135970
HEADLAMP AND FLASHER
H/Lamp Operation LHD-Right Justify, Headlamps - LED Premium / LH / From: LG562205 		$2,387.90 1
