Fuel Tank & Related Parts (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088949 BOLT $3.95 To Order
Photo Part No Description Price (each) Stock
LR055988 CLIP - CABLE $1.48 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.10 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR115125 RETAINER - RIVET $1.02 To Order
Photo Part No Description Price (each) Stock
LR137794 TANK - FUEL $1,192.03 To Order
LR137795 TANK - FUEL $1,192.03 To Order
LR153411 TANK - FUEL $1,192.03 To Order
Photo Part No Description Price (each) Stock
LR112190 CAP - FUEL TANK FILLER $35.09 To Order
LR138861 CAP - FUEL TANK FILLER $39.20 To Order
LR138719 CAP - FUEL TANK FILLER $39.20 To Order
Photo Part No Description Price (each) Stock
LR140699 PIPE - FUEL FILLER $138.74 To Order
LR140700 PIPE - FUEL FILLER $138.74 To Order
LR140701 PIPE - FUEL FILLER $138.74 To Order
Photo Part No Description Price (each) Stock
LR125677 HOSE - FILLER PIPE $39.92 To Order
Photo Part No Description Price (each) Stock
LR115407 STRAP - FUEL TANK $58.85 To Order
Photo Part No Description Price (each) Stock
LR115796 HOSE - VENT $89.66 To Order
Photo Part No Description Price (each) Stock
LR115342 TUBE - FUEL $39.18 To Order
Photo Part No Description Price (each) Stock
LR128791 SHIELD - FUEL TANK $154.76 To Order
Photo Part No Description Price (each) Stock
LR117832 CLIP $3.30 To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER $6.26 To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL $26.18 To Order
Photo Part No Description Price (each) Stock
LR125431 FOAM PAD - ENERGY ABSORBING $15.97 To Order
Photo Part No Description Price (each) Stock
LR125430 FOAM PAD - ENERGY ABSORBING $15.33 To Order
View All

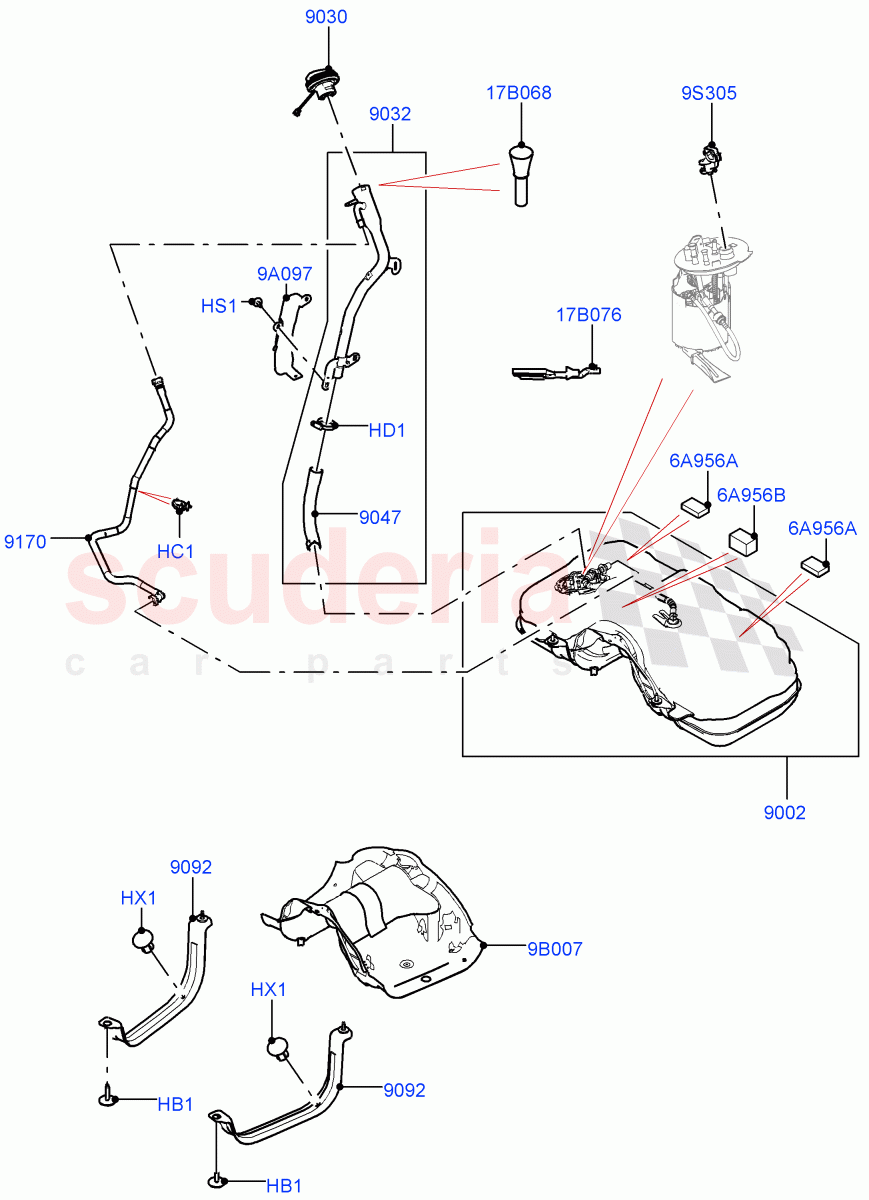

Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088949
BOLT
Fuel Tank Strap, M6 X 40MM / From: MH000001 		$3.95 4
HC1 LR055988
CLIP - CABLE
16-22X6.4-7X0.7-4 / From: MH000001 		$1.48 3
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: MH000001 		$6.10 1
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: MH000001
IN STOCK 		$1.38 3
HX1 LR115125
RETAINER - RIVET
Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: MH000001 		$1.02 2
6A956A LR125431
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 20mm / From: MH000001 		$15.97 2
6A956B LR125430
FOAM PAD - ENERGY ABSORBING
80mm x 50mm x 50mm / From: MH000001 		$15.33 1
9A097 LR115342
TUBE - FUEL
Filler Pipe / From: MH000001 		$39.18 1
9B007 LR128791
SHIELD - FUEL TANK
Fuel Tank / From: MH000001 		$154.76 1
9S305 LR117832
CLIP
For Fuel Pump / From: MH000001 		$3.30 1
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: MH000001 		$6.26 1
17B076 LR014047
RESTRICTOR - FUEL
Fuel Tank Filler Neck - Diesel / From: MH000001 		$26.18 1
9002 LR137794
TANK - FUEL
Fuel Tank Size - Standard, Fuel Tank-Diesel / From: MH000001 		$1,192.03 1
9002 LR137795
TANK - FUEL
Fuel Tank Size-Eco, Fuel Tank-Diesel / From: MH000001 / To: MH121894 		$1,192.03 1
9002 LR153411
TANK - FUEL
Fuel Tank Size-Eco, Fuel Tank-Diesel / From: MH121895 		$1,192.03 1
9030 LR112190
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: MH000001 / To: MH134927 		$35.09 1
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck With Inhibit / From: MH000001 		$39.20 1
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: MH134928 		$39.20 1
9032 LR140699
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: MH000001 		$138.74 1
9032 LR140700
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: MH000001 		$138.74 1
9032 LR140701
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: MH000001 		$138.74 1
9047 LR125677
HOSE - FILLER PIPE
From: MH000001 		$39.92 1
9092 LR115407
STRAP - FUEL TANK
From: MH000001 		$58.85 2
9170 LR115796
HOSE - VENT
From: MH000001 		$89.66 1
