Name: Turbocharger (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 5.0 (1 reviews)

View All

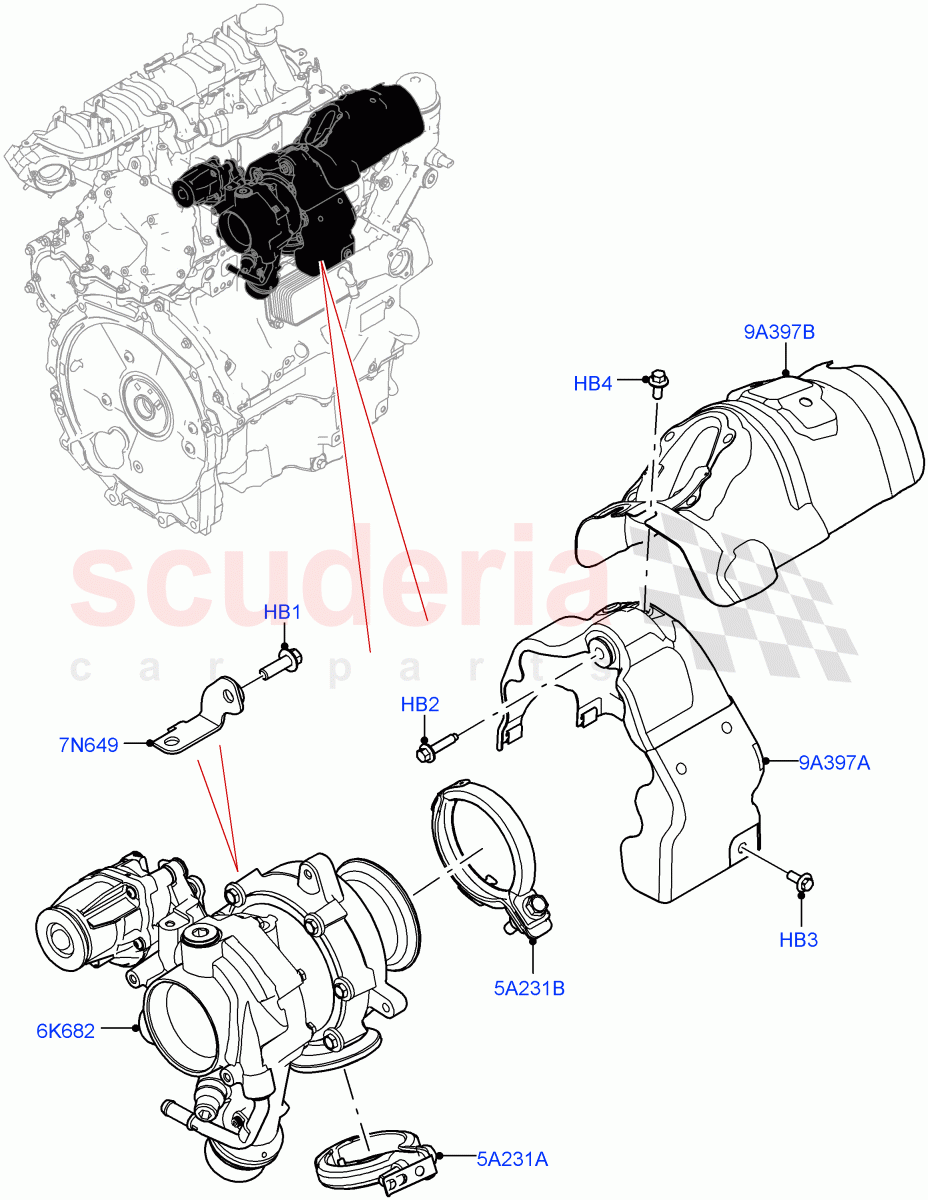

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092104	BOLT	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$3.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139739	TURBOCHARGER	$1,932.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139738	BRACKET	$33.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139688	CLAMP - EXHAUST	$33.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139767	CLAMP - EXHAUST	$17.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139736	HEAT SHIELD - TURBOCHARGER	$53.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139643	HEAT SHIELD - TURBOCHARGER	$56.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR092104	BOLT	LR092104 BOLT Bracket, M8 X 25MM	$1.61	2
HB2	LR091557	BOLT	LR091557 BOLT M6 X 25MM, Shield	$3.01	1
HB3	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED M6 X 14MM, Shield	$0.94	1
HB4	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield	$2.77	4
5A231A	LR139688	CLAMP - EXHAUST	LR139688 CLAMP - EXHAUST Manifold To Turbocharger	$33.35	1
5A231B	LR139767	CLAMP - EXHAUST	LR139767 CLAMP - EXHAUST Turbocharger Outlet	$17.84	1
6K682	LR139739	TURBOCHARGER	LR139739 TURBOCHARGER	$1,932.11	1
7N649	LR139738	BRACKET	LR139738 BRACKET Turbocharger Bracket	$33.64	1
9A397A	LR139736	HEAT SHIELD - TURBOCHARGER	LR139736 HEAT SHIELD - TURBOCHARGER Centre	$53.48	1
9A397B	LR139643	HEAT SHIELD - TURBOCHARGER	LR139643 HEAT SHIELD - TURBOCHARGER RH	$56.11	1

Turbocharger (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]
