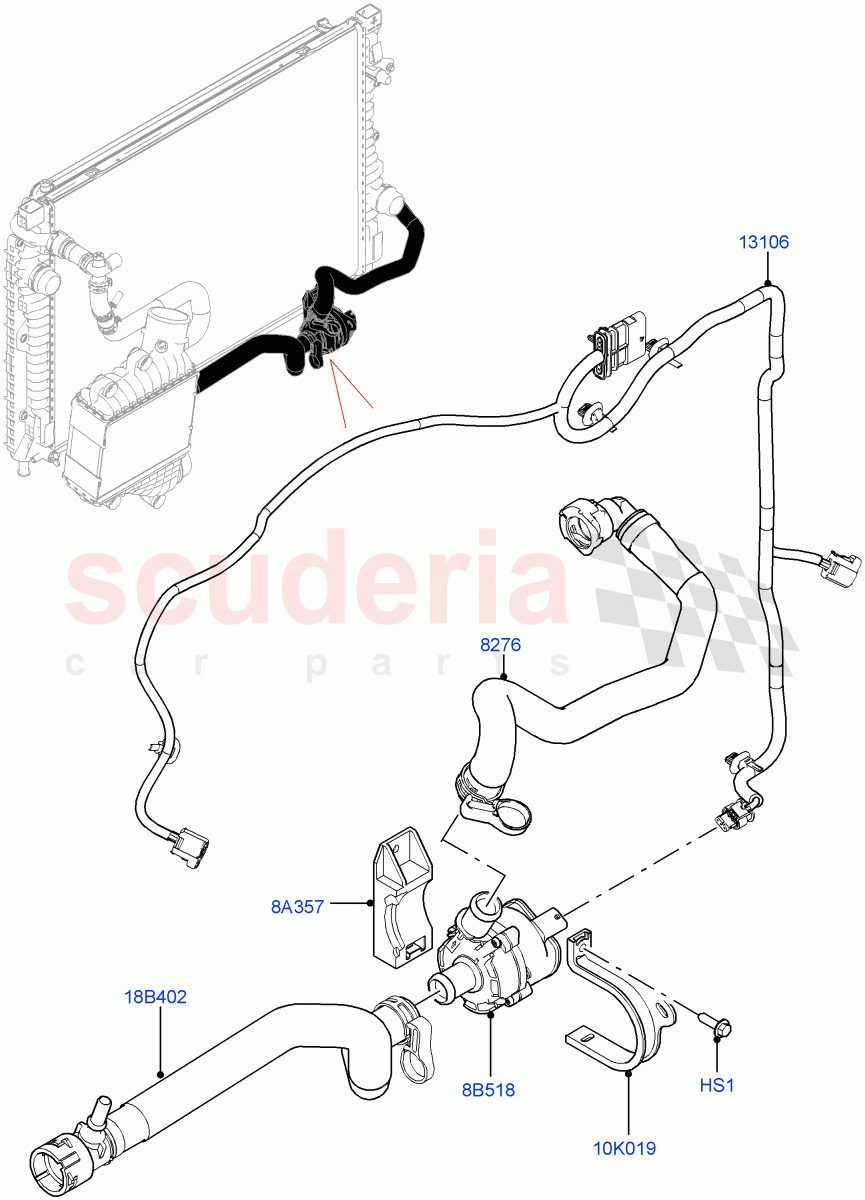

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115221	HOSE - WATER	$54.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143641	WIRING - WATER PUMP	$94.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071990	BRACKET - PUMP SUPPORT	$11.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049317	PUMP - WATER	$250.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071991	BRACKET - PUMP SUPPORT	$9.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120559	HOSE - TURBOCHARGER TO INTERCOOLER	$56.68	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: MH000001	$2.31	1
8A357	LR071990	BRACKET - PUMP SUPPORT	LR071990 BRACKET - PUMP SUPPORT From: MH000001	$11.26	1
8B518	LR049317	PUMP - WATER	LR049317 PUMP - WATER Electric / From: MH000001	$250.07	1
10K019	LR071991	BRACKET - PUMP SUPPORT	LR071991 BRACKET - PUMP SUPPORT From: MH000001	$9.57	1
18B402	LR120559	HOSE - TURBOCHARGER TO INTERCOOLER	LR120559 HOSE - TURBOCHARGER TO INTERCOOLER From Water Pump To Intercooler / From: MH000001	$56.68	1
8276	LR115221	HOSE - WATER	LR115221 HOSE - WATER From Radiator To Water Pump / From: MH000001	$54.80	1
13106	LR143641	WIRING - WATER PUMP	LR143641 WIRING - WATER PUMP From: MH000001	$94.47	1
