Cowl/Panel And Related Parts (Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Cowl/Panel And Related Parts (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR024316 PIN $3.42 IN STOCK
LR024316 PIN $3.42 IN STOCK
LR147004 RIVET - PLASTIC $1.74 To Order
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
Photo Part No Description Price (each) Stock
LR114552 COVER - BATTERY $68.98 To Order
LR133957 COVER - BATTERY $68.98 To Order
Photo Part No Description Price (each) Stock
LR114669 JET - WINDSHIELD WASHER $28.25 To Order
LR114551 JET - WINDSHIELD WASHER $28.25 To Order
Photo Part No Description Price (each) Stock
LR003110 PIPE - DRAIN $8.07 To Order
Photo Part No Description Price (each) Stock
LR114547 PANEL - COWL TOP $291.50 To Order
LR136934 PANEL - COWL SIDE $301.11 To Order
Photo Part No Description Price (each) Stock
LR114550 HOSE - WINDSHIELD WASHER $38.09 To Order
Photo Part No Description Price (each) Stock
LR124428 BRACKET - BATTERY BOX $9.06 To Order
LR135626 BRACKET - BATTERY BOX $9.06 To Order
LR124428 BRACKET - BATTERY BOX $9.06 To Order
Photo Part No Description Price (each) Stock
LR128935 COVER - BRAKE RESERVOIR - COWL TOP $115.82 To Order
LR133950 COVER - BRAKE RESERVOIR - COWL TOP $115.82 To Order
Photo Part No Description Price (each) Stock
LR137525 PANEL - COWL TOP $60.16 To Order
LR137030 PANEL - COWL TOP $48.77 To Order
View All

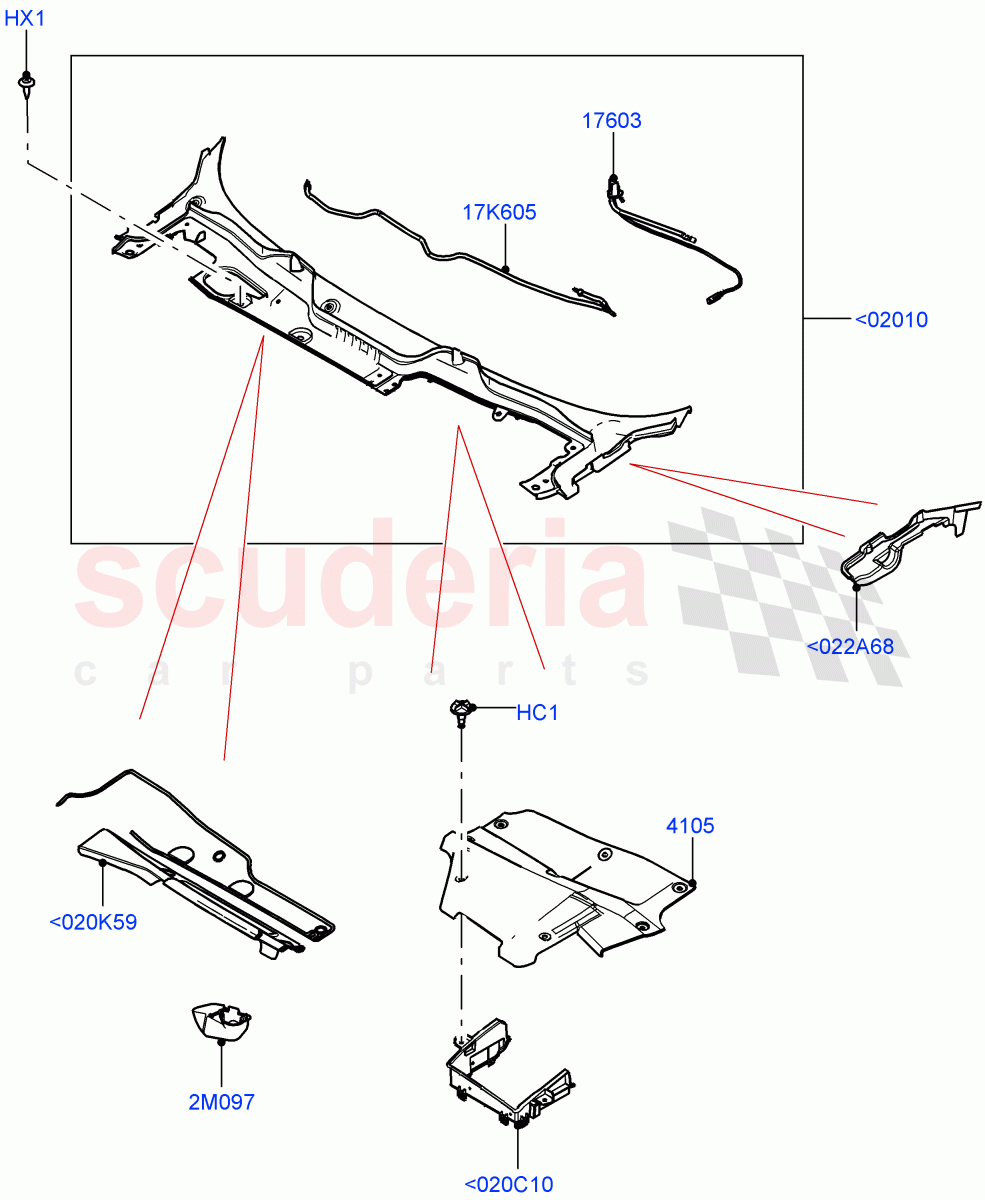

Cowl/Panel And Related Parts (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<020C10 LR124428
BRACKET - BATTERY BOX
2.0L AJ20P4 Petrol High PTA / From: MG575835 		$9.06 1
<020C10 LR135626
BRACKET - BATTERY BOX
1.5L AJ20P3 Petrol High PHEV / From: MG575835 		$9.06 1
<020C10 LR124428
BRACKET - BATTERY BOX
To: MG575834 		$9.06 1
<020K59 LR128935
COVER - BRAKE RESERVOIR - COWL TOP
To: LG564619 		$115.82 1
<020K59 LR133950
COVER - BRAKE RESERVOIR - COWL TOP
From: LG564620 		$115.82 1
<022A68 LR137525
PANEL - COWL TOP
LH / From: KG006088 		$60.16 1
<022A68 LR137030
PANEL - COWL TOP
RH / From: KG006088 		$48.77 1
<02010 LR114547
PANEL - COWL TOP
LHD / From: KG006088 / To: KG102586 		$291.50 1
<02010 LR136934
PANEL - COWL SIDE
LHD / From: KG102587 		$301.11 1
HC1 LR024316
PIN
Cover, Rivet Blind 9.4 X 13 / To: MG575834
IN STOCK 		$3.42 6
HC1 LR024316
PIN
Battery Cover, Rivet Blind 9.4 X 13 / To: MG575834
IN STOCK 		$3.42 7
HC1 LR147004
RIVET - PLASTIC
Rivet Blind 9.4 X 13 / From: MG575835 		$1.74 13
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin
IN STOCK 		$1.50 2
2M097 LR003110
PIPE - DRAIN 		$8.07 2
17K605 LR114550
HOSE - WINDSHIELD WASHER
Windshield Washer Hose 		$38.09 1
4105 LR114552
COVER - BATTERY
To: KG105407 		$68.98 1
4105 LR133957
COVER - BATTERY
From: KG105408 		$68.98 1
17603 LR114669
JET - WINDSHIELD WASHER
Less Heated Washer Jet 		$28.25 1
17603 LR114551
JET - WINDSHIELD WASHER
With Heated Washer Jet 		$28.25 1
