Name: Rear Exhaust System (2.0L AJ20D4 Diesel Mid PTA, Euro Stage 4 Emissions, Halewood (UK))
Rating: 4.9 (1 reviews)

View All

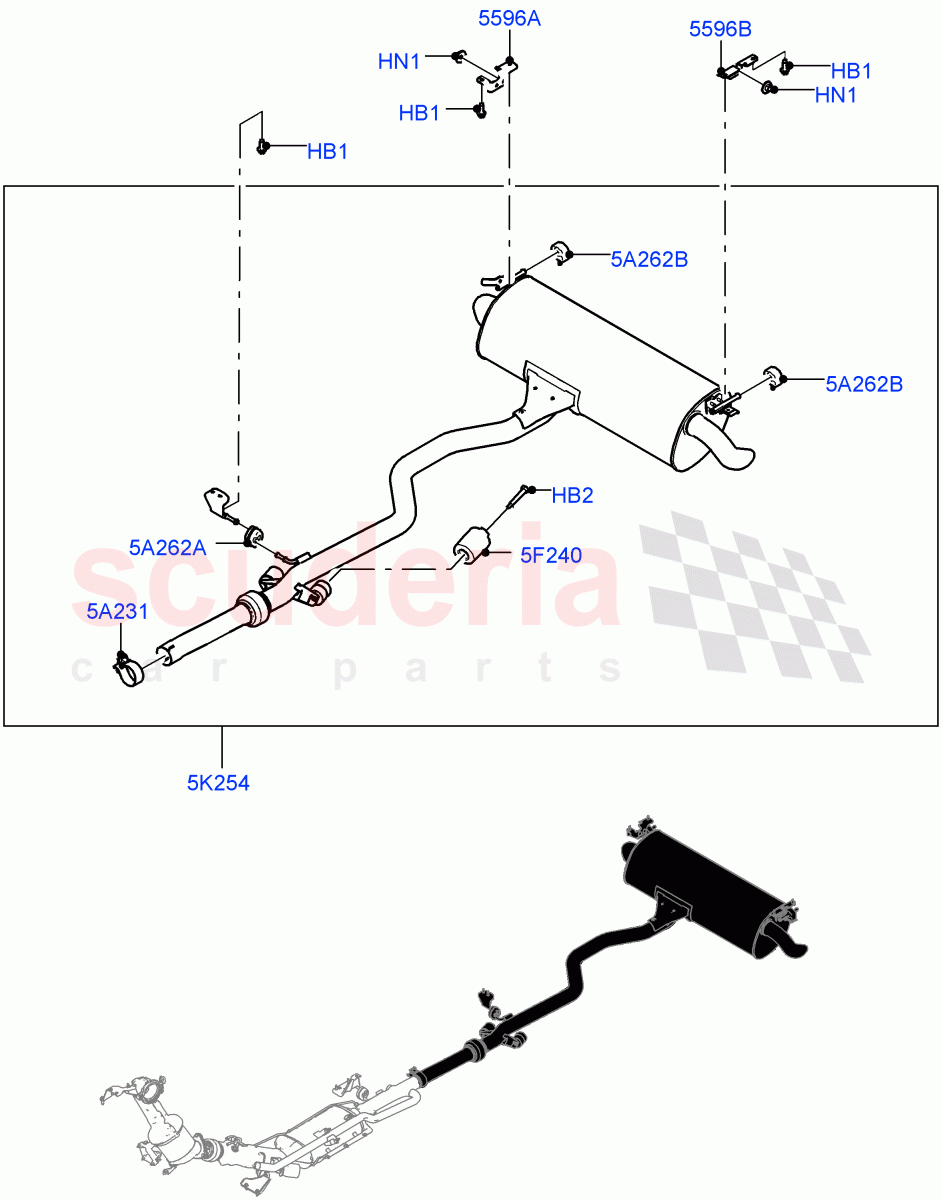

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125427	BRACKET - EXHAUST PIPE MOUNTING	$27.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125426	BRACKET - EXHAUST PIPE MOUNTING	$27.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003178	CLAMP - EXHAUST	$28.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR159453	DAMPER - EXHAUST SYSTEM	$79.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117553	MUFFLER - REAR	$1,154.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100224	INSULATOR - RUBBER	$32.71	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$1.03	6
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	$2.64	2
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	4
5A231	LR003178	CLAMP - EXHAUST	LR003178 CLAMP - EXHAUST 60MM	$28.68	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Exhaust pipe	$11.75	1
5A262B	LR100224	INSULATOR - RUBBER	LR100224 INSULATOR - RUBBER Muffler	$32.71	2
5F240	LR159453	DAMPER - EXHAUST SYSTEM	LR159453 DAMPER - EXHAUST SYSTEM LH	$79.26	1
5K254	LR117553	MUFFLER - REAR	LR117553 MUFFLER - REAR	$1,154.32	1
5596A	LR125427	BRACKET - EXHAUST PIPE MOUNTING	LR125427 BRACKET - EXHAUST PIPE MOUNTING RH	$27.11	1
5596B	LR125426	BRACKET - EXHAUST PIPE MOUNTING	LR125426 BRACKET - EXHAUST PIPE MOUNTING LH	$27.11	1

Rear Exhaust System (2.0L Aj20D4 Diesel Mid Pta, Euro Stage 4 Emissions, Halewood (Uk))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
