Name: Cooling System Pipes And Hoses (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), Extra High Engine Cooling, 2.0L AJ20D4 Diesel Mid PTA)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK), Extra High Engine Cooling, 2.0L AJ20D4 Diesel Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Cooling System Pipes And Hoses (2.0L AJ20D4 Diesel LF PTA, 9 Speed Auto Trans 9HP50, Halewood (UK),...

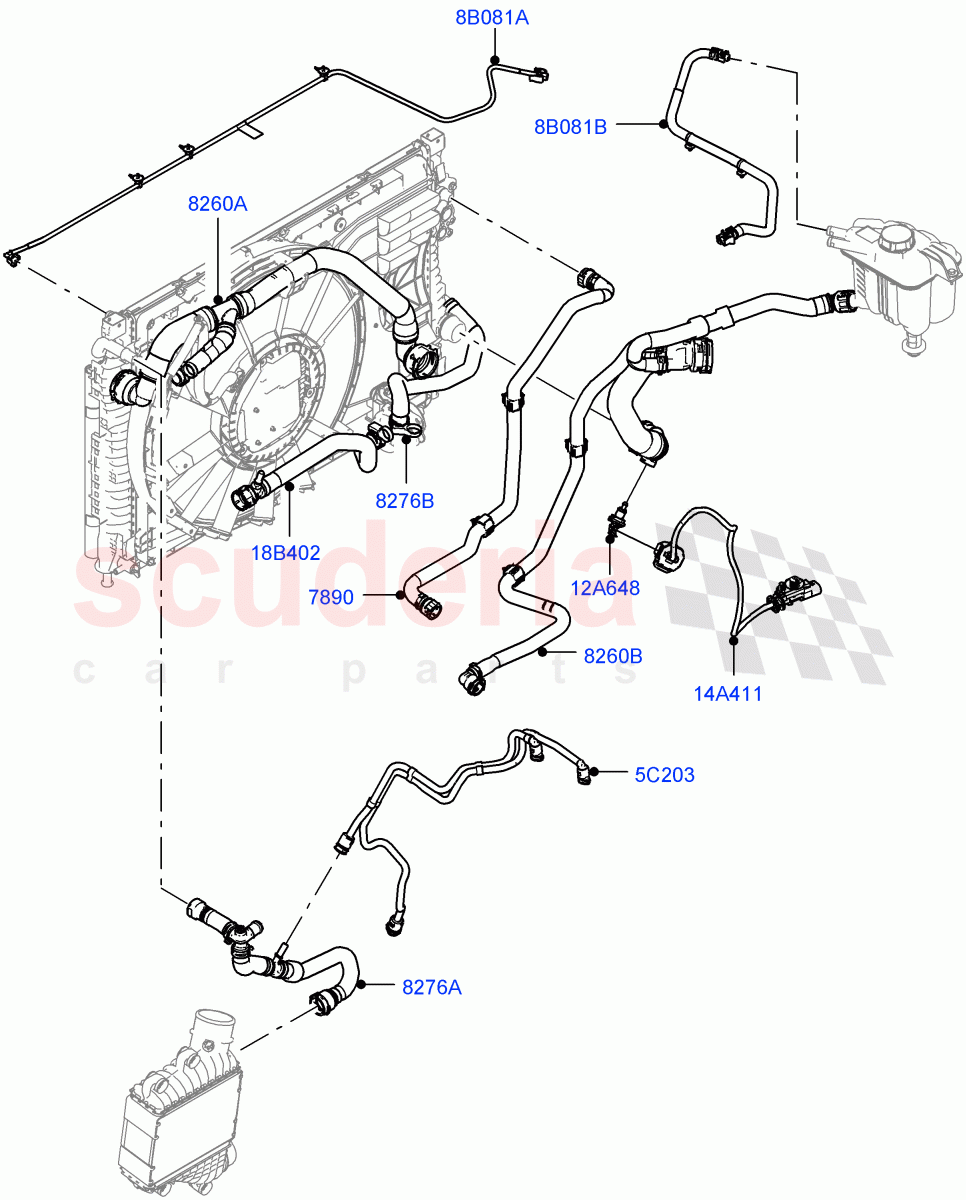

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114664	HOSE - OIL COOLER	$80.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115230	HOSE - FUEL COOLER	$122.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115011	HOSE - RADIATOR	$72.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115206	HOSE - RADIATOR	$110.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115218	HOSE - WATER	$71.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115221	HOSE - WATER	$54.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$49.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135274	WIRING - TRACTION BATTERY	$55.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115214	HOSE - TURBOCHARGER TO INTERCOOLER	$43.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163783	HOSE	$61.16	To Order
	LR163783	HOSE	$61.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115226	HOSE - OVERFLOW CONTAINER	$48.36	To Order
	LR142042	HOSE - OVERFLOW CONTAINER	$46.01	To Order
	LR163784	HOSE - OVERFLOW CONTAINER	$54.81	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
5C203	LR115230	HOSE - FUEL COOLER	LR115230 HOSE - FUEL COOLER For Fuel Cooler	$122.97	1
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / To: NH169081	$61.16	1
8B081A	LR163783	HOSE	LR163783 HOSE Radiator To Expansion Tank Bleed / From: NH169082	$61.16	1
8B081B	LR115226	HOSE - OVERFLOW CONTAINER	LR115226 HOSE - OVERFLOW CONTAINER Expansion Reservoir To Thermostat / To: LH111954	$48.36	1
8B081B	LR142042	HOSE - OVERFLOW CONTAINER	LR142042 HOSE - OVERFLOW CONTAINER Expansion Reservoir To Thermostat / From: LH111955 / To: NH169081	$46.01	1
8B081B	LR163784	HOSE - OVERFLOW CONTAINER	LR163784 HOSE - OVERFLOW CONTAINER Expansion Reservoir To Thermostat / From: NH169082	$54.81	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE	$49.13	1
14A411	LR135274	WIRING - TRACTION BATTERY	LR135274 WIRING - TRACTION BATTERY For Sensor	$55.53	1
18B402	LR115214	HOSE - TURBOCHARGER TO INTERCOOLER	LR115214 HOSE - TURBOCHARGER TO INTERCOOLER From Water Pump To Intercooler	$43.93	1
7890	LR114664	HOSE - OIL COOLER	LR114664 HOSE - OIL COOLER Transmission Cooler Line	$80.53	1
8260A	LR115011	HOSE - RADIATOR	LR115011 HOSE - RADIATOR Top	$72.52	1
8260B	LR115206	HOSE - RADIATOR	LR115206 HOSE - RADIATOR Expansion Tank Feed	$110.23	1
8276A	LR115218	HOSE - WATER	LR115218 HOSE - WATER Intercooler To Radiator	$71.49	1
8276B	LR115221	HOSE - WATER	LR115221 HOSE - WATER From Radiator To Water Pump	$54.81	1

Cooling System Pipes And Hoses (2.0L Aj20D4 Diesel Lf Pta, 9 Speed Auto Trans 9Hp50, Halewood (Uk),...
