Name: Intercooler/Air Ducts And Hoses (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA)
Rating: 4.7 (1 reviews)

View All

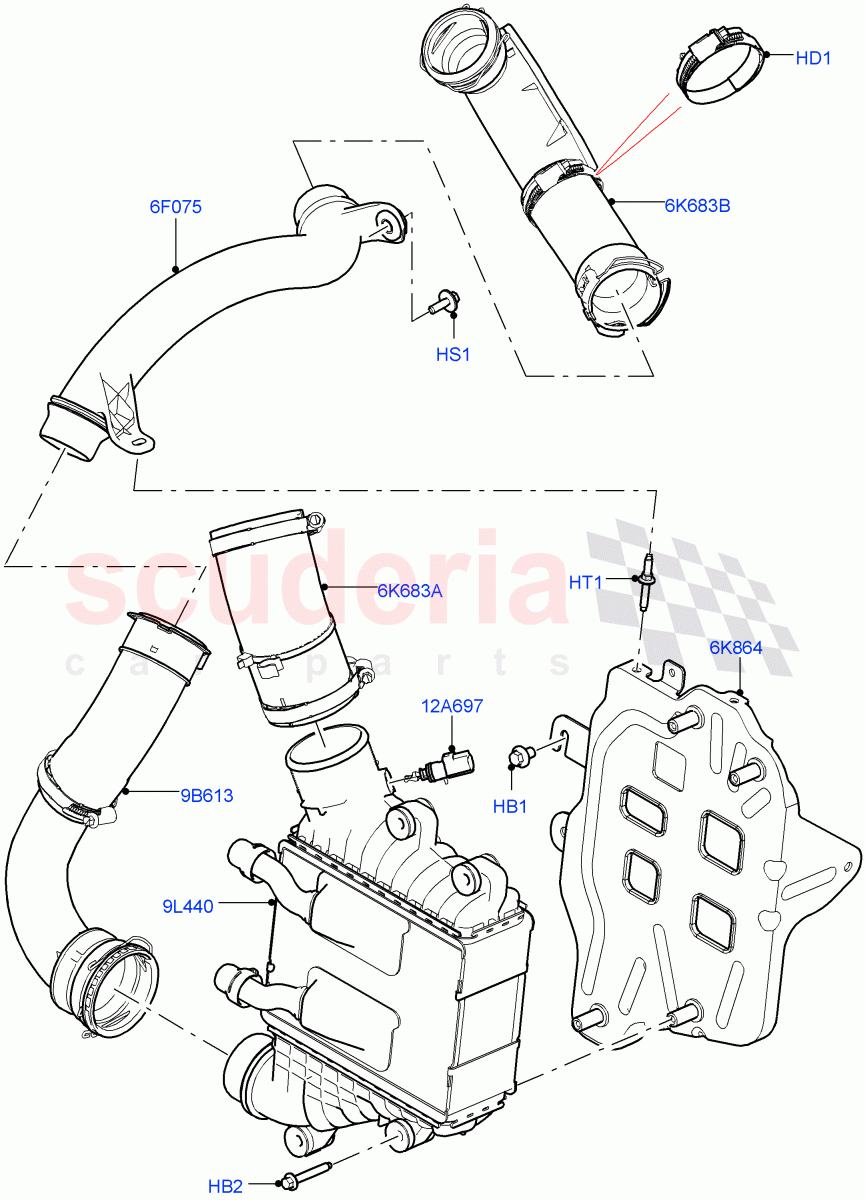

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	$1.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024636	CLAMP - HOSE	$15.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001925	SCREW AND WASHER	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028234	STUD	$5.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072140	DUCT - AIR	$51.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108941	HOSE - INTERCOOLER	$79.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071745	SENSOR - AIR CHARGE TEMPERATURE	$48.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071998	HOSE - AIR	$29.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072134	DUCT - AIR INTAKE	$253.69	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108166	BOLT IN STOCK	FS108166 BOLT Bracket, Hexagonal Head, M8 X 16MM, To Transmission IN STOCK	$0.68	4
HB2	LR001080	BOLT IN STOCK	LR001080 BOLT Hexagonal Head, Intercooler, M6 X 40MM IN STOCK	$1.37	4
HD1	LR024636	CLAMP - HOSE	LR024636 CLAMP - HOSE 50-70MM	$15.55	1
HS1	LR001925	SCREW AND WASHER	LR001925 SCREW AND WASHER M6 X 20MM	$1.15	1
HT1	LR028234	STUD	LR028234 STUD M6 X 25 + M6 X 16	$5.02	1
6F075	LR072140	DUCT - AIR	LR072140 DUCT - AIR	$51.70	1
6K683A	LR071998	HOSE - AIR	LR071998 HOSE - AIR Intercooler Outlet	$29.63	1
6K683B	LR072134	DUCT - AIR INTAKE	LR072134 DUCT - AIR INTAKE Turbocharger Outlet	$253.69	1
6K864	LR114112	BRACKET - CHARGE AIR COOLER	LR114112 BRACKET - CHARGE AIR COOLER 6 Speed Manual Trans BG6	$99.17	1
6K864	LR114113	BRACKET - CHARGE AIR COOLER	LR114113 BRACKET - CHARGE AIR COOLER 9 Speed Auto Trans 9HP50	$74.69	1
9B613	LR108941	HOSE - INTERCOOLER	LR108941 HOSE - INTERCOOLER Intercooler Inlet, Lower	$79.02	1
9L440	LR095900	COOLER - ENGINE CHARGE AIR	LR095900 COOLER - ENGINE CHARGE AIR To: LH101972	$540.26	1
9L440	LR139043	COOLER - ENGINE CHARGE AIR	LR139043 COOLER - ENGINE CHARGE AIR From: LH101973	$625.71	1
12A697	LR071745	SENSOR - AIR CHARGE TEMPERATURE	LR071745 SENSOR - AIR CHARGE TEMPERATURE	$48.70	1

Intercooler/Air Ducts And Hoses (2.0L Aj20D4 Diesel Mid Pta, Halewood (Uk), 2.0L Aj20D4 Diesel Lf...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
