Name: Exhaust Manifold (2.0L AJ20D4 Diesel Mid PTA, Halewood (UK), 2.0L AJ20D4 Diesel LF PTA)
Rating: 5.0 (1 reviews)

View All

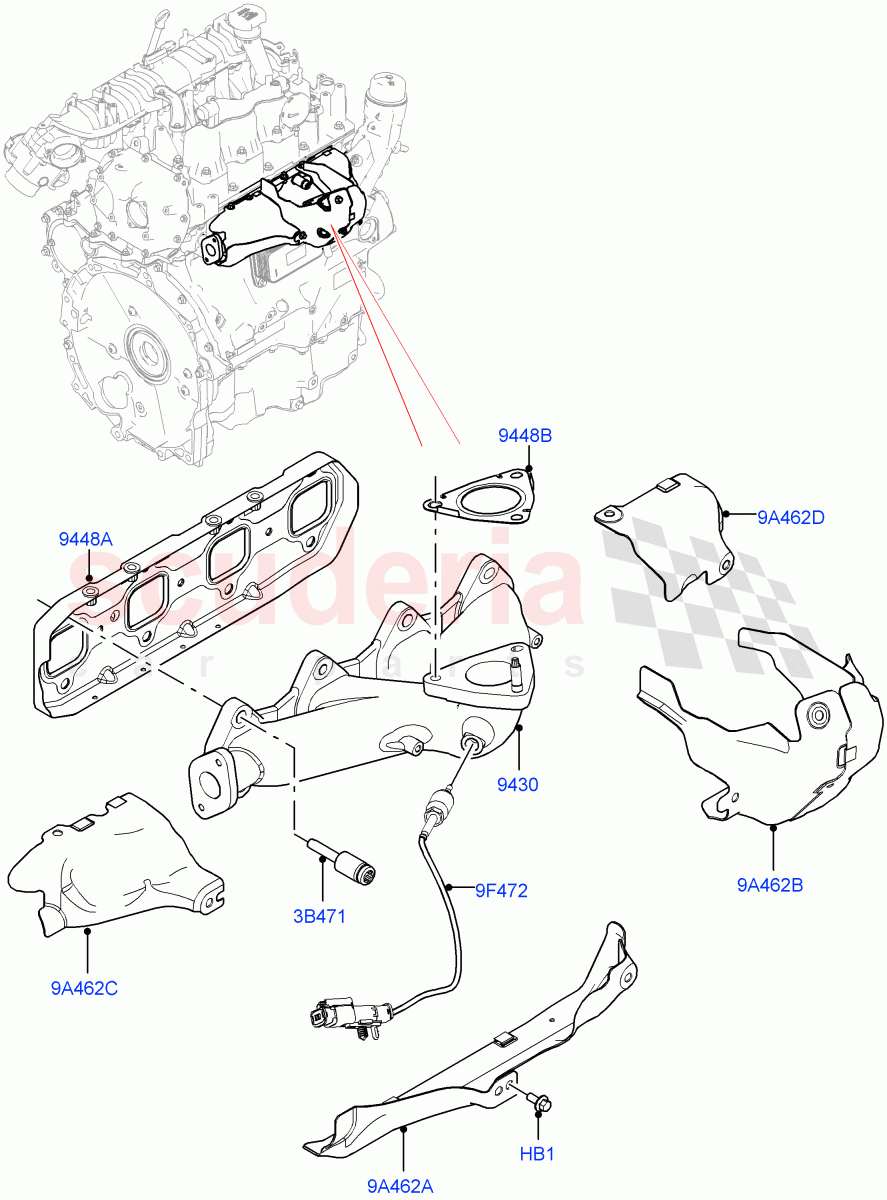

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104016	MANIFOLD - EXHAUST	$516.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	$3.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073658	GASKET	$33.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073723	GASKET - EXHAUST MANIFOLD	$30.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074128	SENSOR - EXHAUST GAS - TEMPERATURE	$112.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	$53.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112108	SHIELD - EXHAUST MANIFOLD HEAT	$50.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	$56.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	$51.01	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED M6 X 14MM	$0.95	5
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL	$3.72	8
9A462A	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	LR073659 SHIELD - EXHAUST MANIFOLD HEAT Bottom	$53.74	1
9A462B	LR112108	SHIELD - EXHAUST MANIFOLD HEAT	LR112108 SHIELD - EXHAUST MANIFOLD HEAT Centre	$50.98	1
9A462C	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	LR073660 SHIELD - EXHAUST MANIFOLD HEAT LH	$56.83	1
9A462D	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	LR073661 SHIELD - EXHAUST MANIFOLD HEAT RH	$51.01	1
9F472	LR074128	SENSOR - EXHAUST GAS - TEMPERATURE	LR074128 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	$112.40	1
9430	LR104016	MANIFOLD - EXHAUST	LR104016 MANIFOLD - EXHAUST	$516.26	1
9448A	LR073658	GASKET	LR073658 GASKET Manifold To Cylinder Head	$33.80	1
9448B	LR073723	GASKET - EXHAUST MANIFOLD	LR073723 GASKET - EXHAUST MANIFOLD Turbocharger	$30.37	1

Exhaust Manifold (2.0L Aj20D4 Diesel Mid Pta, Halewood (Uk), 2.0L Aj20D4 Diesel Lf Pta)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]
