Name: Rear Seat Base (Changsu (China))
Rating: 5.0 (1 reviews)

Rear Seat Base (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Seat Base (Changsu (China))

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYG500410	SCREW	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067429	BOLT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131225	KIT - PAD WITH FRAME	$496.93	To Order
	LR155448	PAD - REAR SEAT CUSHION	$496.49	To Order
	LR136845	KIT - PAD WITH FRAME	$479.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068920	HINGE - REAR SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120628	RETAINER - SEAT	$8.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114999	BRACKET - SEAT PIVOT	$69.45	To Order
	LR155436	BRACKET - SEAT PIVOT	$65.38	To Order
	LR136566	BRACKET - SEAT PIVOT	$69.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR128944	BRACKET - SEAT PIVOT	$25.96	To Order
	LR155434	BRACKET - SEAT PIVOT	$50.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155437	BRACKET - SEAT PIVOT	$65.38	To Order
	LR114998	BRACKET - SEAT PIVOT	$62.20	To Order
	LR136567	BRACKET - SEAT PIVOT	$69.43	IN STOCK

View All

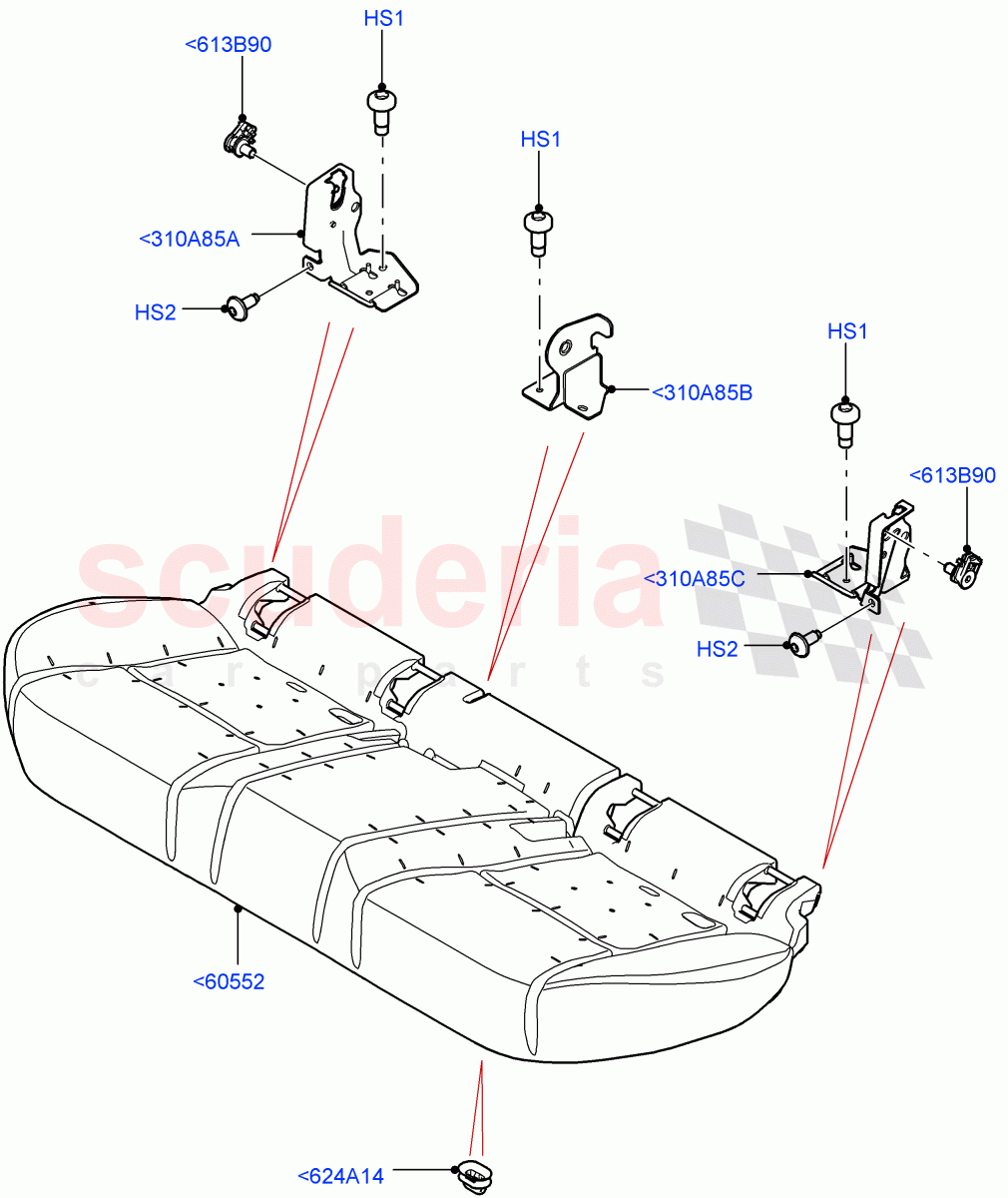

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<310A85A	LR114999	BRACKET - SEAT PIVOT	LR114999 BRACKET - SEAT PIVOT Standard Wheelbase / RH / To: LG569388	$69.45	1
<310A85A	LR155436	BRACKET - SEAT PIVOT	LR155436 BRACKET - SEAT PIVOT Long Wheelbase / RH / From: MG575835	$65.38	1
<310A85A	LR136566	BRACKET - SEAT PIVOT IN STOCK	LR136566 BRACKET - SEAT PIVOT Standard Wheelbase / RH / From: LG569389 IN STOCK	$69.43	1
<310A85B	LR128944	BRACKET - SEAT PIVOT	LR128944 BRACKET - SEAT PIVOT Standard Wheelbase / Centre	$25.96	1
<310A85B	LR155434	BRACKET - SEAT PIVOT	LR155434 BRACKET - SEAT PIVOT Long Wheelbase / Centre / From: MG575835	$50.43	1
<310A85C	LR155437	BRACKET - SEAT PIVOT	LR155437 BRACKET - SEAT PIVOT Long Wheelbase / LH / From: MG575835	$65.38	1
<310A85C	LR114998	BRACKET - SEAT PIVOT	LR114998 BRACKET - SEAT PIVOT Standard Wheelbase / LH / To: LG569388	$62.20	1
<310A85C	LR136567	BRACKET - SEAT PIVOT IN STOCK	LR136567 BRACKET - SEAT PIVOT Standard Wheelbase / LH / From: LG569389 IN STOCK	$69.43	1
<613B90	LR068920	HINGE - REAR SEAT BACK	LR068920 HINGE - REAR SEAT BACK RH/LH	-	2	Enquire
<624A14	LR120628	RETAINER - SEAT	LR120628 RETAINER - SEAT Base	$8.00	4
<60552	LR131225	KIT - PAD WITH FRAME	LR131225 KIT - PAD WITH FRAME Standard Wheelbase / Includes Foam And Frame / To: LG563532	$496.93	1
<60552	LR155448	PAD - REAR SEAT CUSHION	LR155448 PAD - REAR SEAT CUSHION Long Wheelbase / Includes Foam And Frame / From: MG575835	$496.49	1
<60552	LR136845	KIT - PAD WITH FRAME	LR136845 KIT - PAD WITH FRAME Standard Wheelbase / Includes Foam And Frame / From: LG563533	$479.20	1
HS1	KYG500410	SCREW	KYG500410 SCREW Bracket To Floor, M10 X 25MM, Rear, Self Tapping	$1.65	7
HS2	LR067429	BOLT	LR067429 BOLT Bracket, M8 X 16MM	$1.65	2

Rear Seat Base (Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Rear Seat Base (Changsu (China))
