Name: Air Conditioning System (Halewood (UK), Air Con Refrigerant-HF01234YF) ((V) TOLH999999)
Rating: 4.8 (1 reviews)

Air Conditioning System (Halewood (UK), Air Con Refrigerant-HF01234YF) ((V) TOLH999999) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Air Conditioning System (Halewood (UK), Air Con Refrigerant-HF01234YF) ((V) TOLH999999)

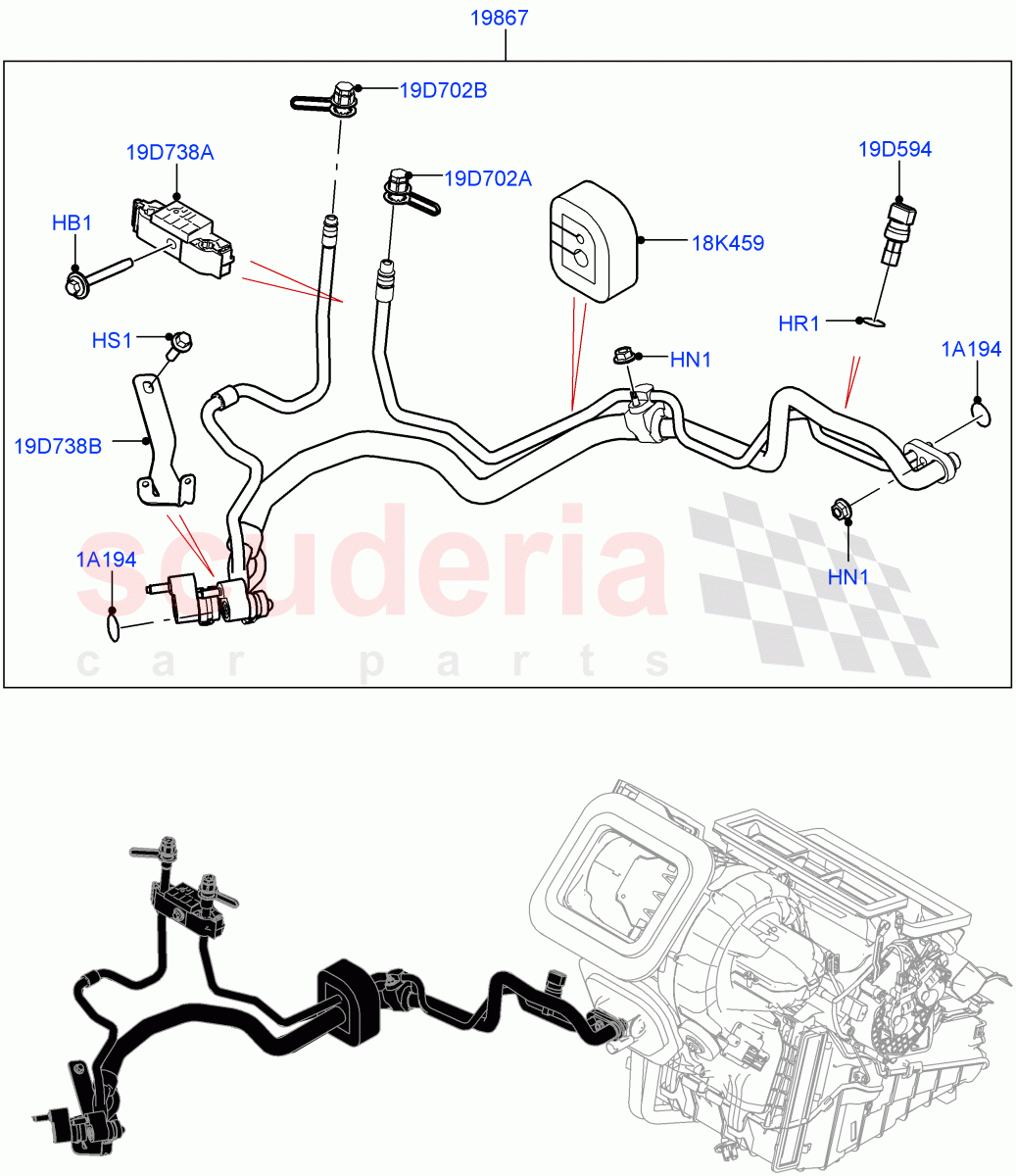

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010925	BOLT	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002718	O-RING	$13.10	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115921	TUBE- A/C EVAPORATOR INLET & OUTLET	$511.59	To Order
	LR135660	TUBE- A/C EVAPORATOR INLET & OUTLET	$230.32	To Order
	LR135180	TUBE- A/C EVAPORATOR INLET & OUTLET	$279.19	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117493	O-RING	$3.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118742	SLEEVE - INSULATING	$20.13	To Order
	LR137865	SLEEVE - INSULATING	$32.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012018	SWITCH - AIR CONDIT.SYSTEM - VACUUM	$165.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002653	CAP - VALVE	$28.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002654	CAP	$20.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117474	BRACKET - A/C PIPE	$17.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117475	BRACKET - A/C PIPE	$13.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR010925	BOLT	LR010925 BOLT Hexagonal Head, M6 x 50MM	$2.98	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.47	2
HR1	LR002718	O-RING	LR002718 O-RING Less Electric Engine Battery / 7.66 x 1.78mm	$13.10	1
HS1	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM IN STOCK	$0.69	1
1A194	LR117493	O-RING	LR117493 O-RING 15.88 X 8.0	$3.51	2
18K459	LR118742	SLEEVE - INSULATING	LR118742 SLEEVE - INSULATING Electric Engine Battery-MHEV	$20.13	1
18K459	LR137865	SLEEVE - INSULATING	LR137865 SLEEVE - INSULATING Electric Engine Battery-PHEV / From: LH000001	$32.90	1
19D594	LR012018	SWITCH - AIR CONDIT.SYSTEM - VACUUM	LR012018 SWITCH - AIR CONDIT.SYSTEM - VACUUM Electric Engine Battery-MHEV / Pressure Sensor	$165.58	1
19D702A	LR002653	CAP - VALVE	LR002653 CAP - VALVE High Pressure Servicing Connection	$28.20	1
19D702B	LR002654	CAP	LR002654 CAP Low Pressure Servicing Connection	$20.10	1
19D738A	LR117474	BRACKET - A/C PIPE	LR117474 BRACKET - A/C PIPE Charge Port Bracket	$17.57	1
19D738B	LR117475	BRACKET - A/C PIPE	LR117475 BRACKET - A/C PIPE	$13.20	1
19867	LR115921	TUBE- A/C EVAPORATOR INLET & OUTLET	LR115921 TUBE- A/C EVAPORATOR INLET & OUTLET Less Electric Engine Battery / Evaporator Inlet/Outlet / To: LH035278	$511.59	1
19867	LR135660	TUBE- A/C EVAPORATOR INLET & OUTLET	LR135660 TUBE- A/C EVAPORATOR INLET & OUTLET Electric Engine Battery-MHEV / Evaporator Inlet/Outlet / From: LH035279 / To: LH103210	$230.32	1
19867	LR135180	TUBE- A/C EVAPORATOR INLET & OUTLET	LR135180 TUBE- A/C EVAPORATOR INLET & OUTLET Electric Engine Battery-PHEV / Evaporator Inlet/Outlet / From: LH000001 / To: LH113446	$279.19	1
19867	LR139930	TUBE- A/C EVAPORATOR INLET & OUTLET	LR139930 TUBE- A/C EVAPORATOR INLET & OUTLET Less Electric Engine Battery / Evaporator Inlet/Outlet / From: LH103211	$234.06	1
19867	LR139939	TUBE- A/C EVAPORATOR INLET & OUTLET	LR139939 TUBE- A/C EVAPORATOR INLET & OUTLET Electric Engine Battery-PHEV / Evaporator Inlet/Outlet / From: LH113447	$283.66	1
