Front Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/Rr 16, Disc And...

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Front Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/RR 16, Disc And...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR114987 BOLT $2.01 IN STOCK
LR139520 BOLT $1.72 To Order
Photo Part No Description Price (each) Stock
LR090697 BOLT $3.55 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR018509 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR115006 DISC - BRAKE - VENTED $203.81 To Order
Photo Part No Description Price (each) Stock
LR091308 BRAKE PADS - LESS SPRINGS $257.38 To Order
LR140696 BRAKE PADS - WITH SPRINGS $256.62 To Order
Photo Part No Description Price (each) Stock
LR015523 SCREW - BLEED $6.76 IN STOCK
Photo Part No Description Price (each) Stock
LR015525 COVER - DUST $24.78 To Order
Photo Part No Description Price (each) Stock
LR090821 GREASE - CHASSIS LUBRICATION $8.34 To Order
Photo Part No Description Price (each) Stock
LR091302 CALIPER - BRAKE - LESS PADS $533.47 To Order
LR091303 CALIPER - BRAKE - LESS PADS $533.47 To Order
LR140645 CALIPER - BRAKE $373.46 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR114030 BRACKET - BRAKE CALIPER $151.41 To Order
LR114034 BRACKET - BRAKE CALIPER $143.36 To Order
LR140643 BRACKET - BRAKE CALIPER $212.21 To Order
Photo Part No Description Price (each) Stock
LR091306 KIT - LOCATING PIN BOLTS $21.62 To Order
LR140649 KIT - LOCATING PIN BOLTS $21.06 To Order
Photo Part No Description Price (each) Stock
LR118812 SHIELD - SPLASH $63.95 To Order
LR118811 SHIELD - SPLASH $63.95 To Order
Photo Part No Description Price (each) Stock
STC1913 CAP - BLEED SCREW $6.17 IN STOCK
Photo Part No Description Price (each) Stock
LR086604 KIT - CALIPER BRAKE PAD MTG PARTS $30.80 To Order
LR140732 KIT - CALIPER BRAKE PAD MTG PARTS $34.51 To Order
Photo Part No Description Price (each) Stock
LR115018 WIRE - BRAKE PAD WEAR WARNING $40.26 To Order
Photo Part No Description Price (each) Stock
LR091307 BRACKET - WIRING $32.45 To Order
Photo Part No Description Price (each) Stock
LR115016 BRACKET - WIRING $26.62 To Order
LR115017 BRACKET - WIRING $25.34 To Order
View All

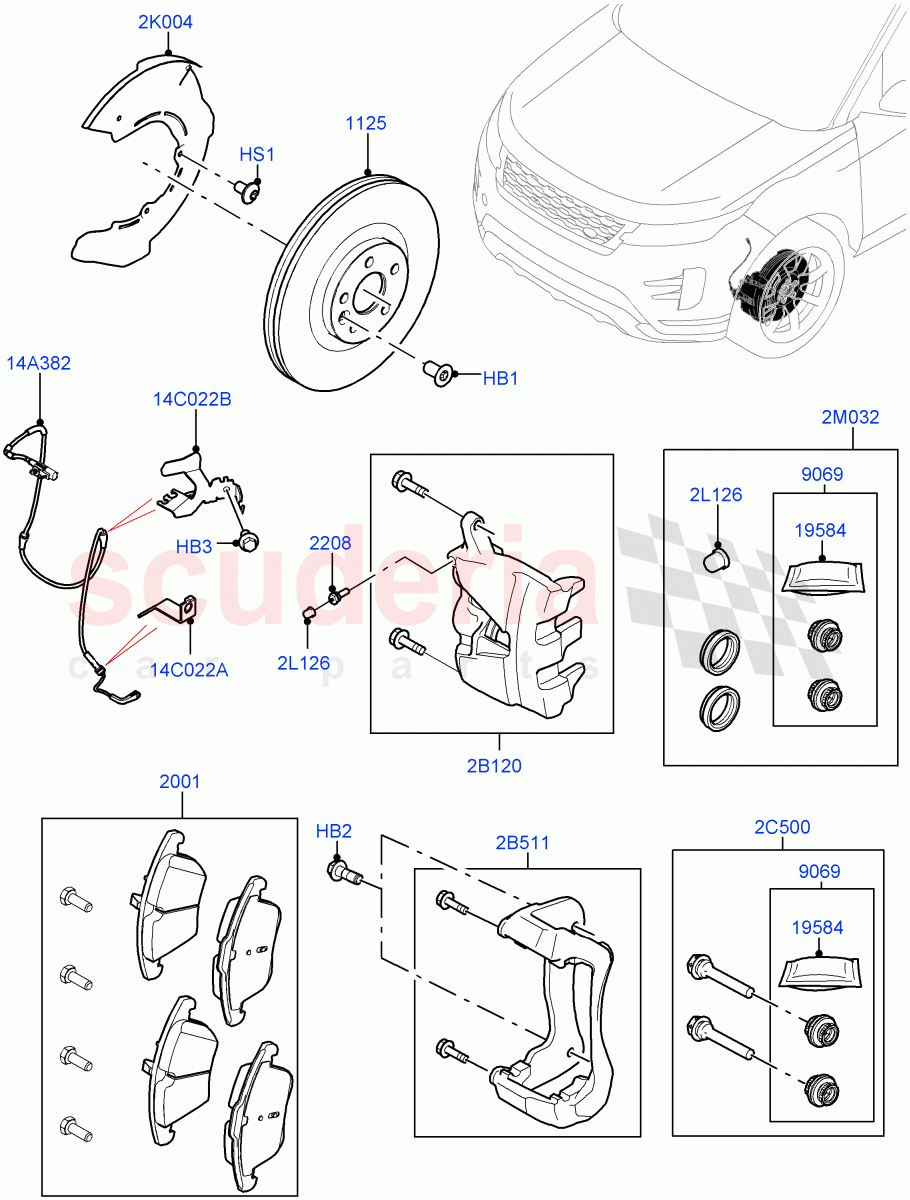

Front Brake Discs And Calipers (Changsu (China), Disc And Caliper Size-Frt 18/RR 16, Disc And Caliper Size-Frt 18/RR 17) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR114987
BOLT
M8, Torx / To: MG575834
IN STOCK 		$2.01 2
HB1 LR139520
BOLT
M8 X 12, Torx / From: MG575835 		$1.72 2
HB2 LR090697
BOLT
Hexagonal Head, M14 X 43mm 		$3.55 4
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.68 2
HS1 LR018509
SCREW
M6 X 10MM, Torx
IN STOCK 		$1.24 8
2B120 LR091302
CALIPER - BRAKE - LESS PADS
RH, For 18" Brakes / To: MG575834 		$533.47 1
2B120 LR091303
CALIPER - BRAKE - LESS PADS
LH, For 18" Brakes / To: MG575834 		$533.47 1
2B120 LR140645
CALIPER - BRAKE
RH, For 18" Brakes / From: MG575834 		$373.46 1
2B120 LR140647
CALIPER - BRAKE
LH, For 18" Brakes / From: MG575834 		$396.13 1
2B511 LR114030
BRACKET - BRAKE CALIPER
RH / To: MG575834 		$151.41 1
2B511 LR114034
BRACKET - BRAKE CALIPER
LH / To: MG575834 		$143.36 1
2B511 LR140643
BRACKET - BRAKE CALIPER
RH/LH / From: MG575835 		$212.21 1
2C500 LR091306
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / To: MG575834 		$21.62 2
2C500 LR140649
KIT - LOCATING PIN BOLTS
Caliper Set, Pin And Boot / From: MG575835 		$21.06 2
2K004 LR118812
SHIELD - SPLASH
RH 		$63.95 1
2K004 LR118811
SHIELD - SPLASH
LH 		$63.95 1
2L126 STC1913
CAP - BLEED SCREW
IN STOCK 		$6.17 2
2M032 LR086604
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set / To: MG575834 		$30.80 2
2M032 LR140732
KIT - CALIPER BRAKE PAD MTG PARTS
Caliper Set / From: MG575834 		$34.51 2
14A382 LR115018
WIRE - BRAKE PAD WEAR WARNING 		$40.26 1
14C022A LR091307
BRACKET - WIRING
Mounted To Caliper 		$32.45 1
14C022B LR115016
BRACKET - WIRING
RH, Front, Mounted To Damper 		$26.62 1
14C022B LR115017
BRACKET - WIRING
LH, Front, Mounted To Damper 		$25.34 1
1125 LR115006
DISC - BRAKE - VENTED
349MM, For 18" Brakes, RH/LH 		$203.81 2
2001 LR091308
BRAKE PADS - LESS SPRINGS
Axle Set, For 18" Brakes, Less Clips, Standard Performance / To: MG575834 		$257.38 1
2001 LR140696
BRAKE PADS - WITH SPRINGS
Axle Set, For 18" Brakes, Less Clips, Standard Performance / From: MG575835 		$256.62 1
2208 LR015523
SCREW - BLEED
IN STOCK 		$6.76 2
9069 LR015525
COVER - DUST
Boot 		$24.78 2
19584 LR090821
GREASE - CHASSIS LUBRICATION 		$8.34 1
