Front Axle Case (2.0L Aj20P4 Petrol Mid Pta, Changsu (China), All Wheel Drive)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Front Axle Case (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), All Wheel Drive)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT $0.82 To Order
Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR051077 NUT $13.05 To Order
Photo Part No Description Price (each) Stock
LR117570 SCREW $5.69 To Order
Photo Part No Description Price (each) Stock
LR116238 CAP - PED RAIL $10.17 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR117580 PIPE - CONNECTING $19.08 To Order
Photo Part No Description Price (each) Stock
LR117556 MOTOR - REAR DIFFERENTIAL $609.64 To Order
Photo Part No Description Price (each) Stock
LR117560 PLUG - MAGNETIC TYPE $10.10 To Order
Photo Part No Description Price (each) Stock
LR118436 CONTROL UNIT - AXLE $366.12 To Order
Photo Part No Description Price (each) Stock
LR117581 PLUG - DRAIN $10.16 To Order
Photo Part No Description Price (each) Stock
LR114110 TUBE - BREATHER $59.92 To Order
Photo Part No Description Price (each) Stock
LR114254 HEAT SHIELD - TRANSFER CASE $22.55 To Order
Photo Part No Description Price (each) Stock
LR051288 SEAL - POWER TRANSFER UNIT $22.40 To Order
Photo Part No Description Price (each) Stock
LR117516 POWER TRANSFER UNIT $4,623.50 To Order
Photo Part No Description Price (each) Stock
LR118095 KIT $106.16 To Order
Photo Part No Description Price (each) Stock
LR003153 RING - SEALING $17.07 To Order
Photo Part No Description Price (each) Stock
LR120548 SEAL - POWER TRANSFER UNIT $17.07 To Order
Photo Part No Description Price (each) Stock
LR001950 RING - SEALING $17.11 To Order
Photo Part No Description Price (each) Stock
LR003155 RING - SEALING $32.94 To Order
View All

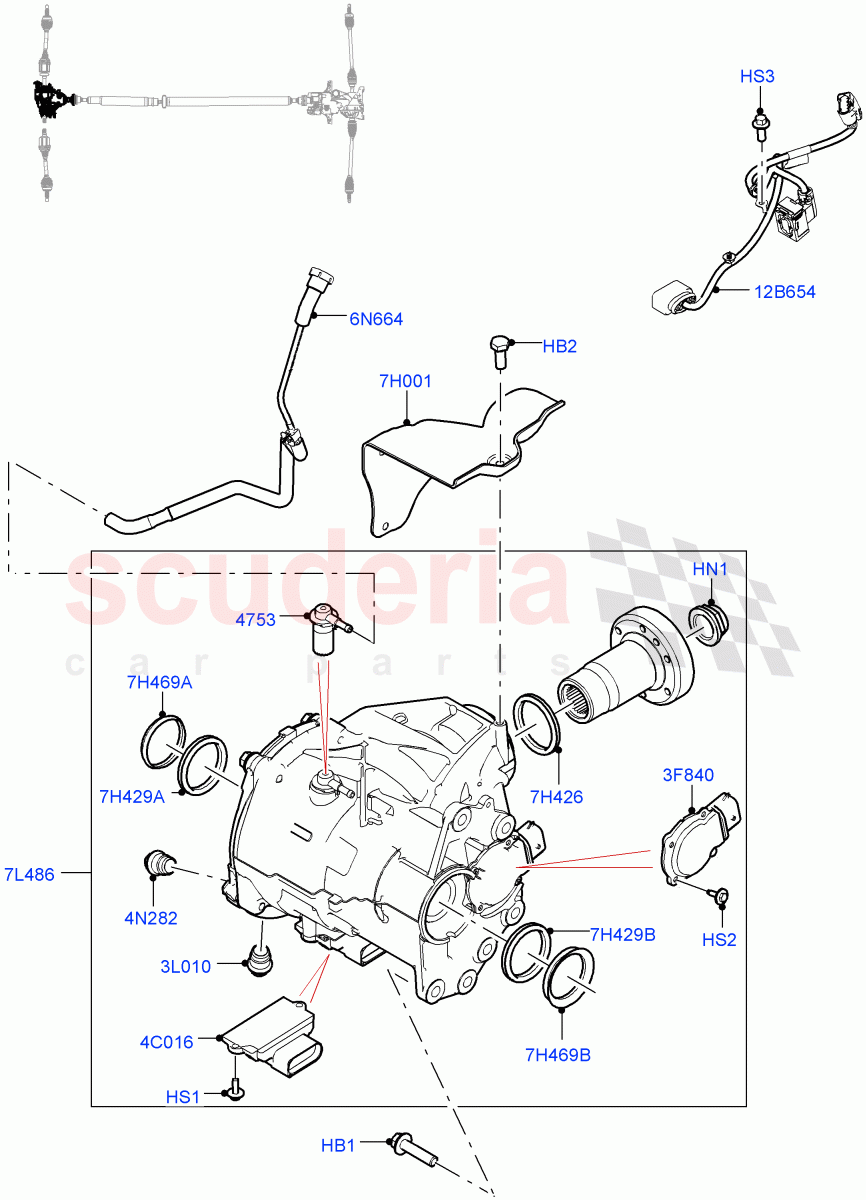

Front Axle Case (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), All Wheel Drive) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
Hexagonal Head, M10 x 40MM, PTU To Gearbox 		$0.82 6
HB2 RYG500800
BOLT
Hexagonal Head, M6 X 16MM 		$0.52 3
HN1 LR051077
NUT
PTU Flange 		$13.05 1
HS1 LR117570
SCREW
Control Unit Mounting 		$5.69 2
HS2 LR116238
CAP - PED RAIL
Black Coated, M5 x 25MM, Motor Mounting 		$10.17 2
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.23 1
3F840 LR117556
MOTOR - REAR DIFFERENTIAL 		$609.64 1
3L010 LR117560
PLUG - MAGNETIC TYPE 		$10.10 1
4C016 LR118436
CONTROL UNIT - AXLE 		$366.12 1
4N282 LR117581
PLUG - DRAIN 		$10.16 1
6N664 LR114110
TUBE - BREATHER
Breather Pipe 		$59.92 1
7H001 LR114254
HEAT SHIELD - TRANSFER CASE 		$22.55 1
7H426 LR051288
SEAL - POWER TRANSFER UNIT
For Differential Flange 		$22.40 1
7H429A LR003153
RING - SEALING
RH, Driveshaft, Inner 		$17.07 1
7H429B LR120548
SEAL - POWER TRANSFER UNIT
LH, Driveshaft, Inner 		$17.07 1
7H469A LR001950
RING - SEALING
RH, Driveshaft, Outer 		$17.11 1
7H469B LR003155
RING - SEALING
LH, Driveshaft, Outer 		$32.94 1
7L486 LR117516
POWER TRANSFER UNIT 		$4,623.50 1
12B654 LR118095
KIT
2.0L AJ20P4 Petrol Mid PTA / Power Transfer Unit, Wiring Harness 		$106.16 1
4753 LR117580
PIPE - CONNECTING
Breather Pipe, Connection 		$19.08 1
