Name: Timing Gear Covers (1.5L AJ20P3 Petrol High PHEV, Changsu (China), 1.5L AJ20P3 Petrol High)
Rating: 5.0 (1 reviews)

View All

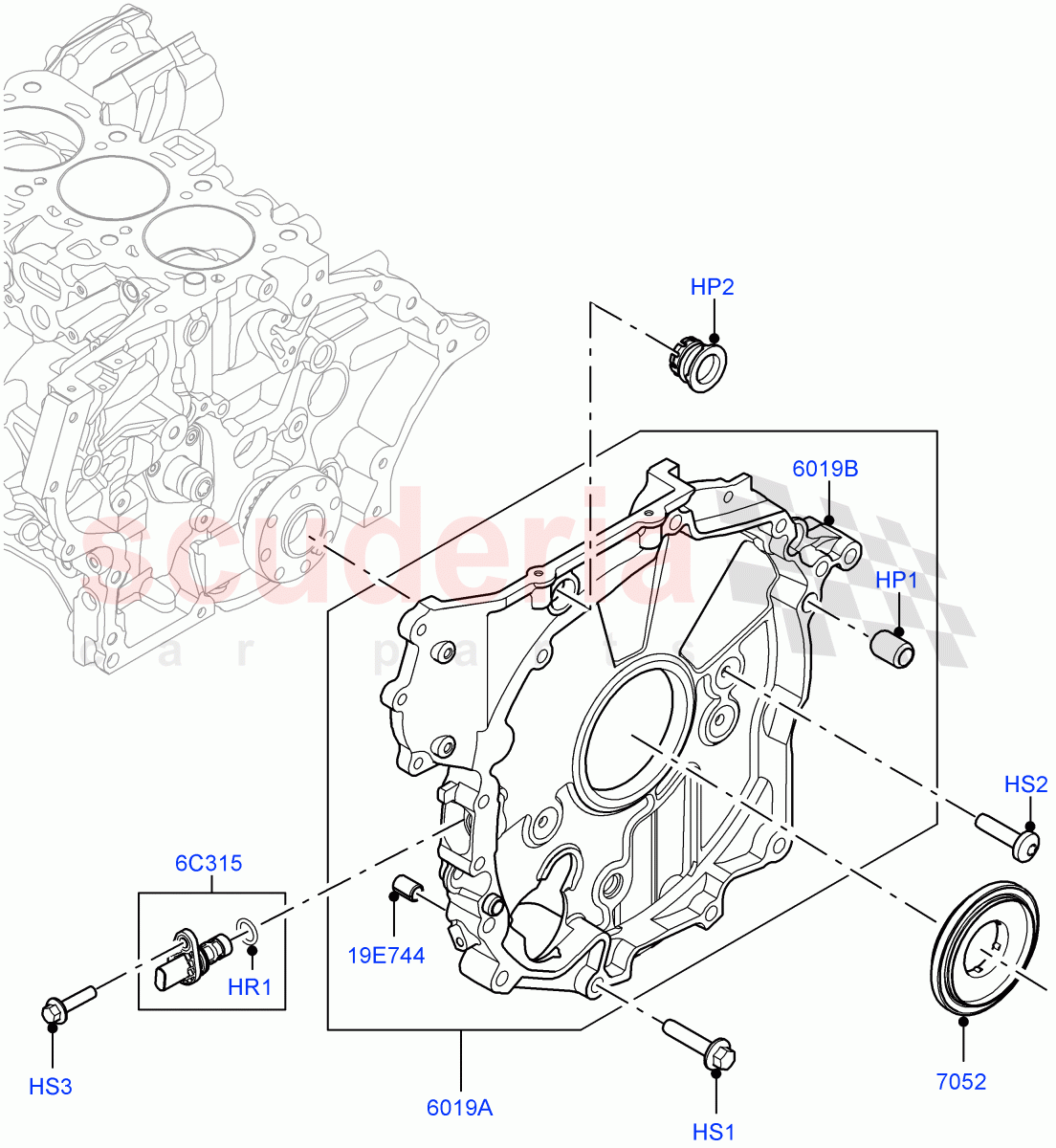

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073787	PIN - CENTERING	$4.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095782	O-RING	$4.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073786	SCREW	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071842	SCREW AND WASHER - HEX HEAD	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172770	RETAINER - CRANKSHAFT OIL SEAL	$458.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125452	RETAINER AND SEAL - CRANKSHAFT	$397.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	$149.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.52	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	LR073787	PIN - CENTERING	LR073787 PIN - CENTERING 15.7MM, Pin - Dowell	$4.07	2
HP2	LR135851	PLUG - ENGINE	LR135851 PLUG - ENGINE Blanking, Chain Drive, Includes O'Ring / To: LG563482	$14.71	1
HP2	LR135858	PLUG - ENGINE IN STOCK	LR135858 PLUG - ENGINE Blanking, Chain Drive, Includes O'Ring / From: LG563483 IN STOCK	$6.69	1
HR1	LR095782	O-RING IN STOCK	LR095782 O-RING 17.0MM, Sensor - Crankshaft Position - CPS IN STOCK	$4.81	1
HS1	LR073676	SCREW	LR073676 SCREW M8 x 35mm, Timing Chain Cover	$2.35	9
HS2	LR073786	SCREW	LR073786 SCREW M8 X 30MM, Timing Chain Cover	$2.24	3
HS3	LR071842	SCREW AND WASHER - HEX HEAD	LR071842 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 25MM, Sensor - Crankshaft Position - CPS	$1.35	1
6C315	LR126181	SENSOR - CRANKSHAFT POSITION - CPS	LR126181 SENSOR - CRANKSHAFT POSITION - CPS	$149.84	1
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN IN STOCK	$3.52	2
6019A	LR172770	RETAINER - CRANKSHAFT OIL SEAL	LR172770 RETAINER - CRANKSHAFT OIL SEAL	$458.61	1
6019B	LR125452	RETAINER AND SEAL - CRANKSHAFT	LR125452 RETAINER AND SEAL - CRANKSHAFT	$397.08	1
7052	LR084639	SEAL - CRANKSHAFT OIL - REAR	LR084639 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal / To: KG102622	$49.61	1
7052	LR122697	SEAL - CRANKSHAFT OIL - REAR IN STOCK	LR122697 SEAL - CRANKSHAFT OIL - REAR Crankshaft Oil Seal, Rear / From: KG102623 IN STOCK	$51.82	1

Timing Gear Covers (1.5L Aj20P3 Petrol High Phev, Changsu (China), 1.5L Aj20P3 Petrol High)

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]
