Name: Cooling System Pipes And Hoses (Electric Unit, Front Section) (1.5L AJ20P3 Petrol High PHEV, Changsu (China)) ((V) FROMMG575835)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (Electric Unit, Front Section) (1.5L AJ20P3 Petrol High PHEV, Changsu (China)) ((V) FROMMG575835) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

View All

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cooling System Pipes And Hoses (Electric Unit, Front Section) (1.5L AJ20P3 Petrol High PHEV,...

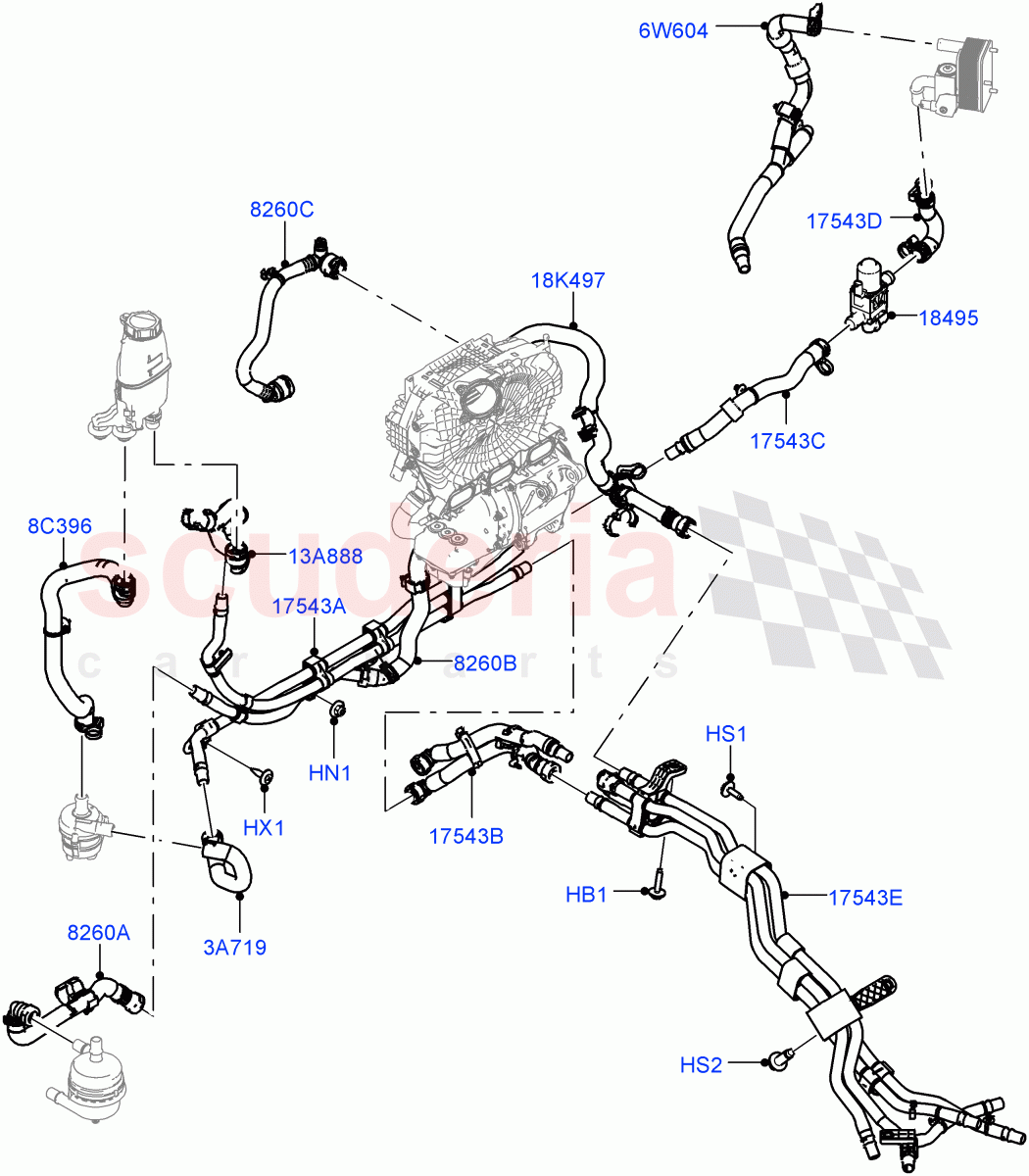

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR115317	BOLT AND WASHER - HEX.HEAD	$1.08	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FYP500550	SCREW	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR132398	VALVE - HEATER WATER	$356.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135268	HOSE - RESERVOIR TO PUMP	$97.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153966	TUBE - WATER INLET	$89.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135310	HOSE - RADIATOR	$59.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135257	HOSE - WATER	$70.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135256	HOSE - WATER	$51.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135283	HOSE - HEATER WATER	$89.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135405	RESERVOIR - EXPANSION	$113.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143952	HOSE - TRACTION BATTERY COOLING	$132.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135411	HOSE - TRACTION BATTERY COOLING	$128.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135347	HOSE - COOLING SYSTEM	$61.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135244	HOSE - TRACTION BATTERY COOLING	$25.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144560	HOSE - TRACTION BATTERY COOLING	$235.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135337	HOSE - COOLING SYSTEM	$109.20	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR115317	BOLT AND WASHER - HEX.HEAD	LR115317 BOLT AND WASHER - HEX.HEAD M6x28 / From: MG575835	$1.08	1
HN1	RYH500420	NUT AND WASHER - HEX. IN STOCK	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: MG575835 IN STOCK	$0.44	3
HS1	FYP500550	SCREW	FYP500550 SCREW Hexagonal Head, M6 X 20MM / From: MG575835	$1.04	2
HS2	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM / From: MG575835	$0.61	2
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin / From: MG575835 IN STOCK	$1.49	1
3A719	LR135268	HOSE - RESERVOIR TO PUMP	LR135268 HOSE - RESERVOIR TO PUMP From: MG575835	$97.04	1
6W604	LR153966	TUBE - WATER INLET	LR153966 TUBE - WATER INLET To Valve / From: MG575835	$89.35	1
8C396	LR135283	HOSE - HEATER WATER	LR135283 HOSE - HEATER WATER LH, Upper / From: MG575835	$89.98	1
13A888	LR135405	RESERVOIR - EXPANSION	LR135405 RESERVOIR - EXPANSION To Expansion Tank / From: MG575835	$113.02	1
18K497	LR135337	HOSE - COOLING SYSTEM	LR135337 HOSE - COOLING SYSTEM RH / From: MG575835	$109.20	1
8260A	LR135310	HOSE - RADIATOR	LR135310 HOSE - RADIATOR Separator / From: MG575835	$59.37	1
8260B	LR135257	HOSE - WATER	LR135257 HOSE - WATER Starter Motor / From: MG575835	$70.48	1
8260C	LR135256	HOSE - WATER	LR135256 HOSE - WATER Intercooler Outlet / From: MG575835	$51.68	1
17543A	LR143952	HOSE - TRACTION BATTERY COOLING	LR143952 HOSE - TRACTION BATTERY COOLING Bottom, Center Location / From: MG575835	$132.42	1
17543B	LR135411	HOSE - TRACTION BATTERY COOLING	LR135411 HOSE - TRACTION BATTERY COOLING Bottom, Right Side / From: MG575835	$128.68	1
17543C	LR135347	HOSE - COOLING SYSTEM	LR135347 HOSE - COOLING SYSTEM To Valve / From: MG575835	$61.54	1
17543D	LR135244	HOSE - TRACTION BATTERY COOLING	LR135244 HOSE - TRACTION BATTERY COOLING For Battery Chiller, Inlet / From: MG575835	$25.18	1
17543E	LR144560	HOSE - TRACTION BATTERY COOLING	LR144560 HOSE - TRACTION BATTERY COOLING PHEV Battery And Cooling, Rear Section / From: MG575835	$235.39	1
18495	LR132398	VALVE - HEATER WATER	LR132398 VALVE - HEATER WATER Heater / From: MG575835	$356.69	1
