Cylinder Block And Plugs (1.5L Aj20P3 Petrol High, Changsu (China))

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] - Cylinder Block And Plugs (1.5L AJ20P3 Petrol High, Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR126157 CLIP - WIRING $1.51 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.48 To Order
Photo Part No Description Price (each) Stock
LR045542 NUT $1.37 To Order
Photo Part No Description Price (each) Stock
LR092764 NUT - FLANGED $3.69 To Order
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING $4.42 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.68 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.59 To Order
Photo Part No Description Price (each) Stock
LR126058 STUD $3.20 To Order
Photo Part No Description Price (each) Stock
LR125450 COVER - CYLINDER FRONT $148.23 To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG $198.75 IN STOCK
Photo Part No Description Price (each) Stock
LR109352 NOZZLE - PISTON COOLING $33.93 To Order
Photo Part No Description Price (each) Stock
LR118109 SEAL - CRANKSHAFT OIL - FRONT $36.07 To Order
Photo Part No Description Price (each) Stock
LR125380 JET - CHAIN LUBRICATING $20.67 To Order
Photo Part No Description Price (each) Stock
LR144654 STUD $4.85 To Order
Photo Part No Description Price (each) Stock
LR074067 SENSOR - ENGINE TEMPERATURE $43.70 To Order
Photo Part No Description Price (each) Stock
LR100574 CONNECTOR - VACUUM TUBE $28.71 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.52 IN STOCK
Photo Part No Description Price (each) Stock
LR125457 INSULATOR - ENGINE COMPARTMENT $279.19 To Order
Photo Part No Description Price (each) Stock
LR125456 INSULATOR - ENGINE COMPARTMENT $113.06 To Order
Photo Part No Description Price (each) Stock
LR125455 COVER - INSULATOR $39.82 To Order
Photo Part No Description Price (each) Stock
LR125454 COVER - INSULATOR $37.52 To Order
Photo Part No Description Price (each) Stock
LR125446 INSULATOR - CYLINDER HEAD $23.66 To Order
Photo Part No Description Price (each) Stock
LR125448 INSULATOR - CYLINDER HEAD $79.63 To Order
Photo Part No Description Price (each) Stock
LR125447 INSULATOR - CYLINDER HEAD $113.09 To Order
Photo Part No Description Price (each) Stock
LR125449 INSULATOR - CYLINDER HEAD $34.53 To Order
Photo Part No Description Price (each) Stock
LR155117 SENSOR - ENGINE KNOCK $142.26 To Order
View All

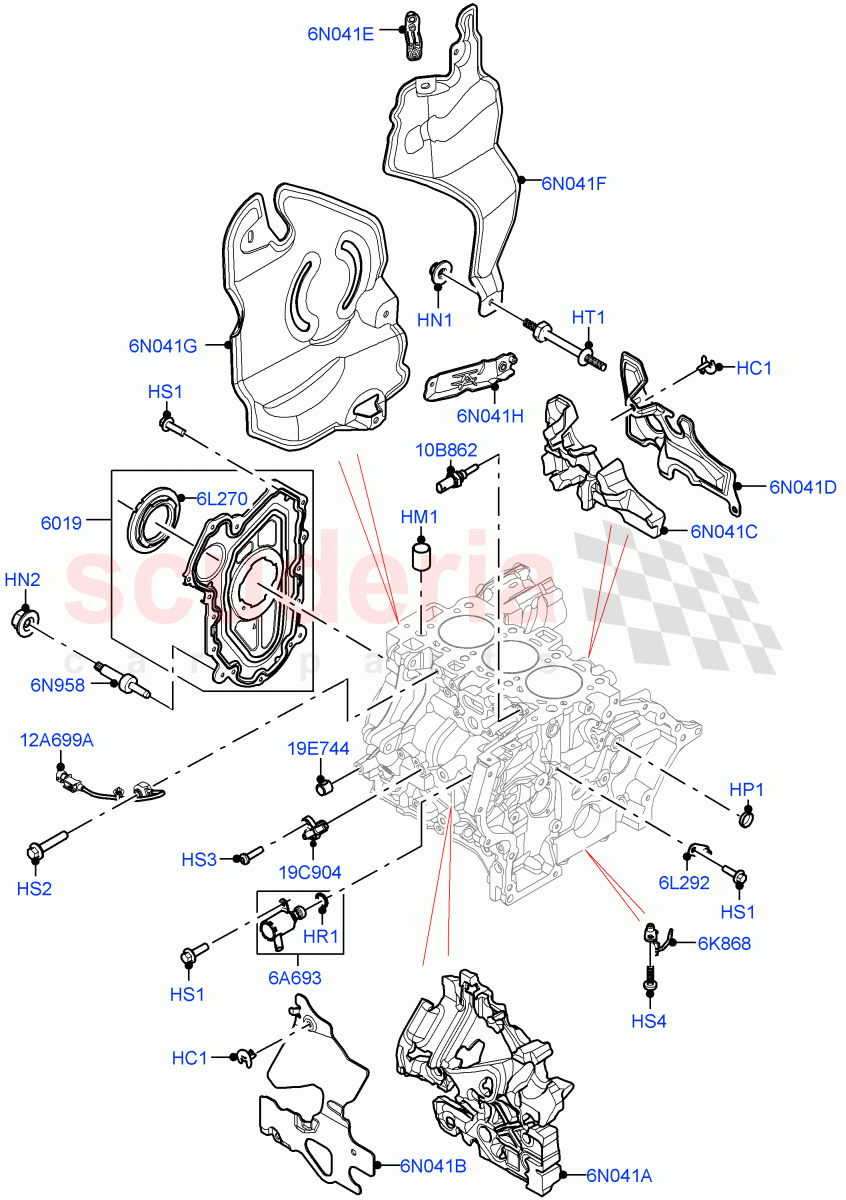

Cylinder Block And Plugs (1.5L AJ20P3 Petrol High, Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR126157
CLIP - WIRING
Insulator 		$1.51 5
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell 		$2.48 2
HN1 LR045542
NUT
M6, Nut And Washer / From: MG575835 		$1.37 1
HN2 LR092764
NUT - FLANGED
M8 		$3.69 3
HP1 LR073636
PLUG - BLANKING
18MM, Blanking 		$4.42 4
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling
IN STOCK 		$4.68 1
HS1 LR073655
SCREW
Front Cover to Cyl Block, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.60 14
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling
IN STOCK 		$1.60 1
HS2 LR073649
SCREW
Anti-Knock Sensor, M8 x 40MM 		$2.52 1
HS3 LR073666
SCREW
M5 x 20MM, Vacuum Connector 		$1.43 1
HS4 LR073720
SCREW
M6 X 20MM, Oil Lubrication Jet 		$1.59 3
HT1 LR126058
STUD
M6 x 15MM, M6 x 18MM 		$3.20 1
6A693 LR073684
VALVE - PISTON OIL COOLNG
IN STOCK 		$198.75 1
6K868 LR109352
NOZZLE - PISTON COOLING 		$33.93 3
6L270 LR118109
SEAL - CRANKSHAFT OIL - FRONT 		$36.07 1
6L292 LR125380
JET - CHAIN LUBRICATING
Chain Drive 		$20.67 1
6N041A LR125457
INSULATOR - ENGINE COMPARTMENT
Front, Inside 		$279.19 1
6N041B LR125456
INSULATOR - ENGINE COMPARTMENT
Front 		$113.06 1
6N041C LR125455
COVER - INSULATOR
Inside, Rear 		$39.82 1
6N041D LR125454
COVER - INSULATOR
Rear 		$37.52 1
6N041E LR125446
INSULATOR - CYLINDER HEAD
Bracket, RH Upper 		$23.66 1
6N041F LR125448
INSULATOR - CYLINDER HEAD
RH Upper 		$79.63 1
6N041G LR125447
INSULATOR - CYLINDER HEAD
RH Lower 		$113.09 1
6N041H LR125449
INSULATOR - CYLINDER HEAD
Bracket, RH Lower 		$34.53 1
6N958 LR144654
STUD
M6 X 20MM, M8 X 25MM 		$4.85 1
10B862 LR074067
SENSOR - ENGINE TEMPERATURE 		$43.70 1
12A699A LR155117
SENSOR - ENGINE KNOCK
Engine Front 		$142.26 1
19C904 LR100574
CONNECTOR - VACUUM TUBE 		$28.71 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.52 1
6019 LR125450
COVER - CYLINDER FRONT
Engine Front, Includes Seal 		$148.23 1
