Name: Front Seat Pads/Valances & Heating (Halewood (UK)) ((V) FROMEH000001, (V) TOFH999999)
Rating: 5.0 (1 reviews)

Front Seat Pads/Valances & Heating (Halewood (UK)) ((V) FROMEH000001, (V) TOFH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Front Seat Pads/Valances & Heating (Halewood (UK)) ((V) FROMEH000001, (V) TOFH999999)

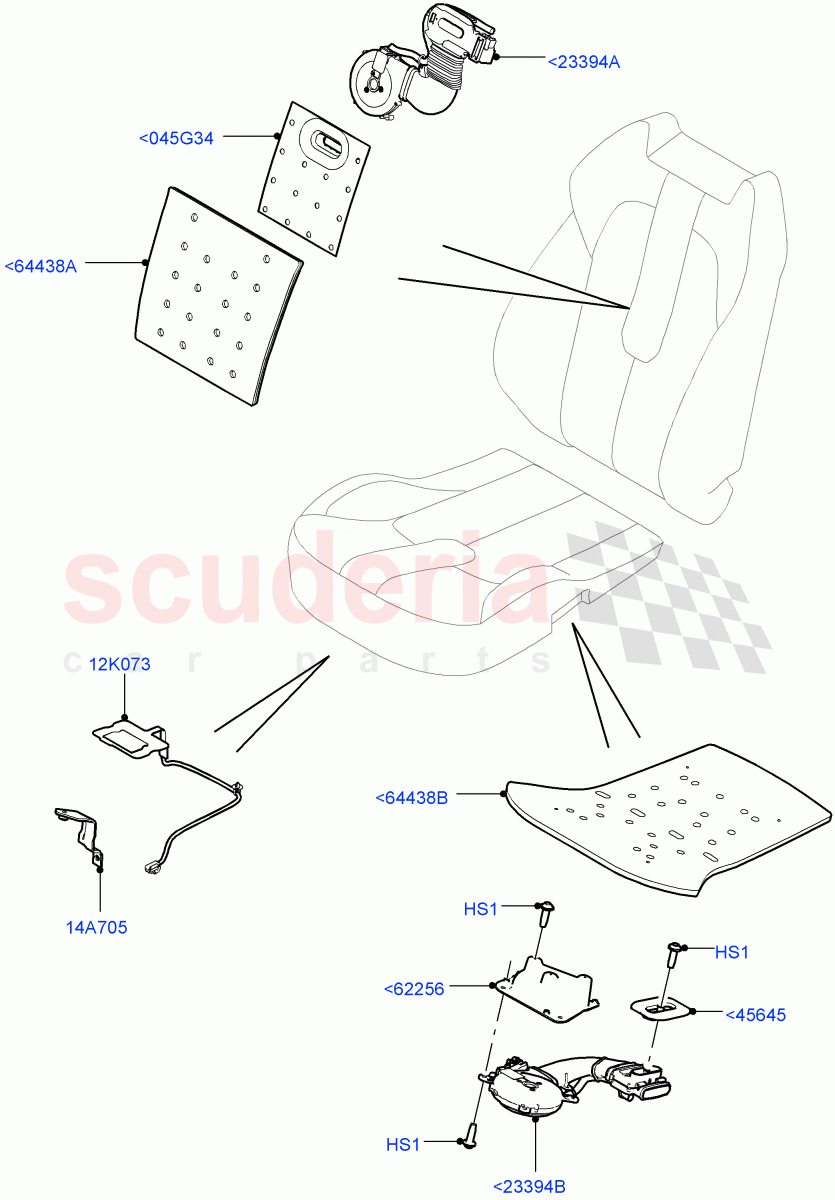

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066535	SCREW	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049607	RETAINER - SEAT DUCT	$37.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049602	BRACKET - SEAT CUSHION	$40.57	To Order
	LR049604	BRACKET - SEAT CUSHION	$41.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028237	SENSOR - BODY WEIGHT - AIRBAG	$86.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049591	BRACKET - SENSOR MOUNTING	$19.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049608	MAT - SEAT VENT	$296.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049594	DUCT - SEAT - AIR	$373.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049595	MOTOR AND DUCT - SEAT VENT	$849.94	To Order
	LR049596	MOTOR AND DUCT - SEAT VENT	$452.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047745	FILLER - SEAT INSERT	$60.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047746	FILLER - SEAT INSERT	$68.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<045G34	LR049608	MAT - SEAT VENT	LR049608 MAT - SEAT VENT Heated/Cooled Front - Heated Rear / From: EH000001	$296.30	2
<23394A	LR049594	DUCT - SEAT - AIR	LR049594 DUCT - SEAT - AIR Heated/Cooled Front - Heated Rear / RH/LH, Seat Back / From: EH000001	$373.61	2
<23394B	LR049595	MOTOR AND DUCT - SEAT VENT	LR049595 MOTOR AND DUCT - SEAT VENT Heated/Cooled Front - Heated Rear / RH, For Seat Cushion / From: EH000001	$849.94	1
<23394B	LR049596	MOTOR AND DUCT - SEAT VENT	LR049596 MOTOR AND DUCT - SEAT VENT Heated/Cooled Front - Heated Rear / LH, For Seat Cushion / From: EH000001	$452.29	1
<45645	LR049607	RETAINER - SEAT DUCT	LR049607 RETAINER - SEAT DUCT Heated/Cooled Front - Heated Rear / Air Duct / From: EH000001	$37.46	1
<62256	LR049602	BRACKET - SEAT CUSHION	LR049602 BRACKET - SEAT CUSHION Heated/Cooled Front - Heated Rear / RH, For Seat Cushion / From: EH000001	$40.57	1
<62256	LR049604	BRACKET - SEAT CUSHION	LR049604 BRACKET - SEAT CUSHION Heated/Cooled Front - Heated Rear / LH, For Seat Cushion / From: EH000001	$41.69	1
<64438A	LR047745	FILLER - SEAT INSERT	LR047745 FILLER - SEAT INSERT Heated/Cooled Front - Heated Rear / For Seat Back, Insert / From: EH000001	$60.36	2
<64438B	LR047746	FILLER - SEAT INSERT	LR047746 FILLER - SEAT INSERT Heated/Cooled Front - Heated Rear / For Seat Cushion, Insert / From: EH000001	$68.53	2
HS1	LR066535	SCREW	LR066535 SCREW Heated/Cooled Front - Heated Rear / 4 X 12MM / From: EH000001	$2.65	7
12K073	LR028237	SENSOR - BODY WEIGHT - AIRBAG	LR028237 SENSOR - BODY WEIGHT - AIRBAG (-)"CDN/MEX/USA", With Occupant Sensor / For Passenger Front Seat / From: EH000001	$86.62	1
14A705	LR049591	BRACKET - SENSOR MOUNTING	LR049591 BRACKET - SENSOR MOUNTING With Head Impact Crash Criteria / For Passenger Front Seat / From: EH000001	$19.84	1

Front Seat Pads/Valances & Heating (Halewood (Uk)) ((V) Fromeh000001, (V) Tofh999999)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Front Seat Pads/Valances & Heating (Halewood (UK)) ((V) FROMEH000001, (V) TOFH999999)
