Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Air Conditioning System (2.2L CR DI 16V Diesel, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010925 BOLT $2.97 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
LR002724 O-RING $5.37 To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING $4.40 To Order
Photo Part No Description Price (each) Stock
LR002720 O-RING $4.89 To Order
Photo Part No Description Price (each) Stock
LR002718 O-RING $13.08 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.35 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.93 To Order
Photo Part No Description Price (each) Stock
LR027790 HOSE - AIR CONDITIONING $38.23 To Order
LR105245 HOSE - AIR CONDITIONING $206.96 To Order
Photo Part No Description Price (each) Stock
LR020017 SLEEVE - INSULATING $26.07 To Order
Photo Part No Description Price (each) Stock
LR027792 TUBE- A/C EVAPORATOR INLET & OUTLET $213.92 To Order
LR048483 TUBE - A/C EVAPORATOR INLET & OUTLET $248.06 To Order
LR032972 TUBE- A/C EVAPORATOR INLET & OUTLET $213.92 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012018 SWITCH - AIR CONDIT.SYSTEM - VACUUM $165.21 To Order
Photo Part No Description Price (each) Stock
LR088548 VALVE - AIR CONDITIONING $4.96 To Order
Photo Part No Description Price (each) Stock
LR003186 INSERT - RING $16.61 To Order
Photo Part No Description Price (each) Stock
LR003185 INSERT - RING $16.61 To Order
Photo Part No Description Price (each) Stock
LR003187 INSERT - RING $16.61 To Order
Photo Part No Description Price (each) Stock
LR002653 CAP - VALVE $28.14 To Order
Photo Part No Description Price (each) Stock
LR002654 CAP $20.06 To Order
Photo Part No Description Price (each) Stock
LR010311 BRACKET - A/C PIPE $7.89 To Order
Photo Part No Description Price (each) Stock
LR002655 BRACKET - COOLING HOSE $1.71 To Order
Photo Part No Description Price (each) Stock
LR002629 BRACKET - A/C PIPE $10.20 To Order
Photo Part No Description Price (each) Stock
LR027799 TUBE AND HOSE-A/C COMPRESSOR INLET $132.21 To Order
LR067705 TUBE AND HOSE-A/C COMPRESSOR INLET $192.22 To Order
Photo Part No Description Price (each) Stock
LR027803 TUBE AND HOSE-A/C COMPRESSOR OUTLET $91.73 To Order
LR039620 TUBE AND HOSE-A/C COMPRESSOR OUTLET $137.56 To Order
View All

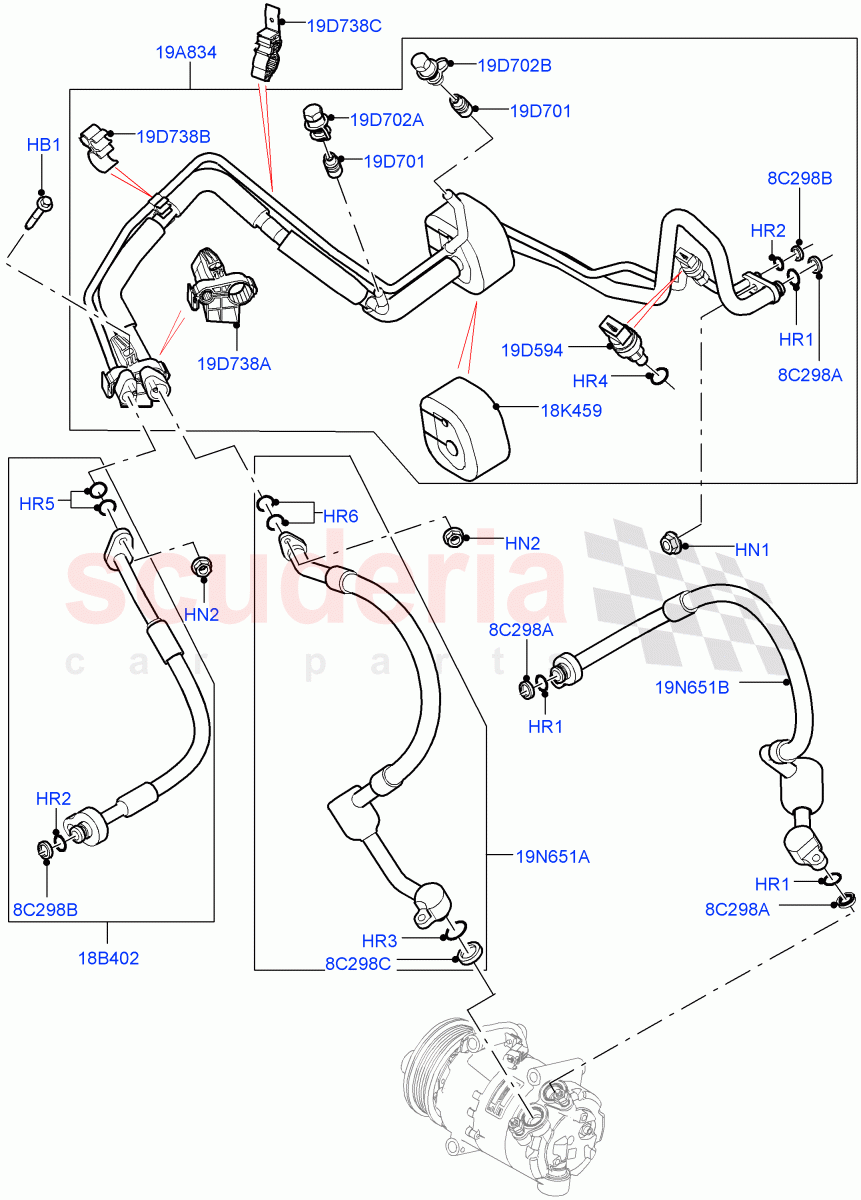

Air Conditioning System (2.2L CR DI 16V Diesel, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010925
BOLT
Hexagonal Head, M6 x 50MM 		$2.97 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.47 3
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 		$1.97 4
HR1 LR002724
O-RING
13.7 X 2.5MM 		$5.37 3
HR2 LR002719
O-RING
9.5 X 2.5MM 		$4.40 2
HR3 LR002720
O-RING
16.25 X 2.5MM 		$4.89 2
HR4 LR002718
O-RING
7.66 x 1.78mm 		$13.08 1
HR5 LR044466
O-RING
7.65 X 1.78 		$4.35 2
HR6 LR044465
O-RING
14 X 1.78 		$2.93 2
8C298A LR003186
INSERT - RING 		$16.61 3
8C298B LR003185
INSERT - RING 		$16.61 2
8C298C LR003187
INSERT - RING 		$16.61 2
18B402 LR027790
HOSE - AIR CONDITIONING
To: HH999999 		$38.23 1
18B402 LR105245
HOSE - AIR CONDITIONING
From: JH000001 		$206.96 1
18K459 LR020017
SLEEVE - INSULATING 		$26.07 1
19A834 LR027792
TUBE- A/C EVAPORATOR INLET & OUTLET
To: CH627103 		$213.92 1
19A834 LR048483
TUBE - A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / From: EH000001 / To: FH999999 		$248.06 1
19A834 LR032972
TUBE- A/C EVAPORATOR INLET & OUTLET
From: CH627104 / To: CH999999 		$213.92 1
19A834 LR032972
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: DH000001 / To: DH740902 		$213.92 1
19A834 LR044679
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: DH740903 / To: DH810029 		$211.83 1
19A834 LR052263
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: DH810030 / To: DH999999 		$218.21 1
19A834 LR040134
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / From: DH000001 / To: DH807009 		$291.63 1
19A834 LR052265
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / From: DH807010 / To: DH999999 		$285.88 1
19A834 LR048509
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: EH000001 / To: EH958924 		$212.30 1
19A834 LR066209
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: EH958925 / To: FH999999 		$242.38 1
19A834 LR070474
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: GH000001 		$347.35 1
19D594 LR012018
SWITCH - AIR CONDIT.SYSTEM - VACUUM
Pressure Sensor 		$165.21 1
19D701 LR088548
VALVE - AIR CONDITIONING
From: DH000001 / To: FH999999 		$4.96 2
19D702A LR002653
CAP - VALVE
High Pressure Servicing Connection 		$28.14 1
19D702B LR002654
CAP
Low Pressure Servicing Connection 		$20.06 1
19D738A LR010311
BRACKET - A/C PIPE 		$7.89 1
19D738B LR002655
BRACKET - COOLING HOSE
Triple 		$1.71 1
19D738C LR002629
BRACKET - A/C PIPE
For Air Conditioning 		$10.20 1
19N651A LR027799
TUBE AND HOSE-A/C COMPRESSOR INLET
Inlet / To: FH003103 		$132.21 1
19N651A LR067705
TUBE AND HOSE-A/C COMPRESSOR INLET
Inlet / From: FH003104 		$192.22 1
19N651B LR027803
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Outlet / To: CH640817 		$91.73 1
19N651B LR039620
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Outlet / From: CH640818 		$137.56 1
