Front Axle Case (Halewood (Uk), Dynamic Driveline) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Front Axle Case (Halewood (UK), Dynamic Driveline) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001192 BOLT $0.83 To Order
Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR051077 NUT $13.24 To Order
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG $3.62 IN STOCK
Photo Part No Description Price (each) Stock
LR051083 PIPE - CONNECTING $11.63 To Order
LR095326 PIPE - CONNECTING $19.63 To Order
Photo Part No Description Price (each) Stock
LR049836 TUBE - BREATHER $42.10 To Order
LR049837 TUBE - BREATHER $50.00 To Order
LR049838 TUBE - BREATHER $44.36 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051289 FLANGE - DIFFERENTIAL $278.60 To Order
Photo Part No Description Price (each) Stock
LR051288 SEAL - POWER TRANSFER UNIT $22.72 To Order
Photo Part No Description Price (each) Stock
LR051076 POWER TRANSFER UNIT $2,893.35 To Order
LR066500 POWER TRANSFER UNIT $2,104.24 To Order
Photo Part No Description Price (each) Stock
LR051510 CAP - BLANKING $10.97 To Order
LR084600 PLUG - BLANKING $36.33 To Order
Photo Part No Description Price (each) Stock
LR002877 PLUG - FILLER $10.88 To Order
Photo Part No Description Price (each) Stock
LR051294 PLUG - DRAIN $12.01 To Order
Photo Part No Description Price (each) Stock
LR049847 HEAT SHIELD - TRANSFER CASE $51.53 To Order
LR061466 HEAT SHIELD - TRANSFER CASE $82.10 To Order
LR068975 HEAT SHIELD - TRANSFER CASE $24.50 To Order
Photo Part No Description Price (each) Stock
LR054809 HEAT SHIELD - TRANSFER CASE $98.64 To Order
Photo Part No Description Price (each) Stock
LR003153 RING - SEALING $17.32 To Order
Photo Part No Description Price (each) Stock
LR051397 SEAL - POWER TRANSFER UNIT $18.65 To Order
Photo Part No Description Price (each) Stock
LR001950 RING - SEALING $17.36 To Order
Photo Part No Description Price (each) Stock
LR003155 RING - SEALING $33.42 To Order
View All

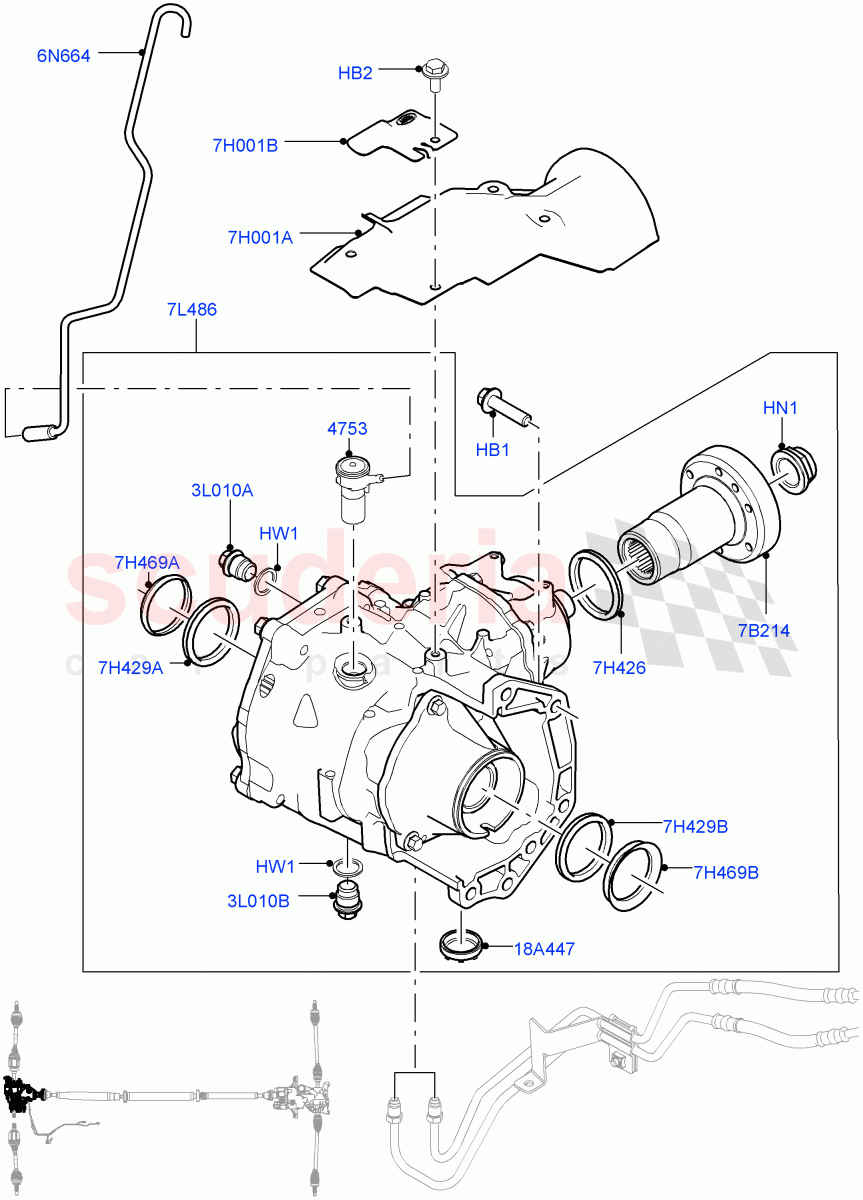

Front Axle Case (Halewood (UK), Dynamic Driveline) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001192
BOLT
Hexagonal Head, M10 x 40MM, PTU To Gearbox / From: EH000001 		$0.83 6
HB2 RYG500800
BOLT
Heat Shield, Hexagonal Head, M6 X 16MM / From: EH000001 		$0.52 4
HN1 LR051077
NUT
PTU Flange / From: EH000001 		$13.24 1
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5, Sealing Washer / From: EH000001
IN STOCK 		$3.62 1
3L010A LR002877
PLUG - FILLER
Filler Plug / From: EH000001 		$10.88 1
3L010B LR051294
PLUG - DRAIN
Drain Plug / From: EH000001 		$12.01 1
6N664 LR049836
TUBE - BREATHER
2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD / Breather Pipe / From: EH000001 / To: EH961192 		$42.10 1
6N664 LR049837
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: EH000001 / To: EH953756 		$50.00 1
6N664 LR049838
TUBE - BREATHER
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD / Breather Pipe / From: EH000001 / To: FH984095 		$44.36 1
6N664 LR065709
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: EH953757 / To: FH047925 		$28.16 1
6N664 LR065707
TUBE - BREATHER
2.0L 16V TIVCT T/C Gen2 Petrol, 9 Speed Auto AWD / Breather Pipe / From: EH961193 		$53.56 1
6N664 LR065708
TUBE - BREATHER
2.2L CR DI 16V Diesel, 6 Speed Manual Trans M66 - AWD / Breather Pipe / From: FH984096 		$46.58 1
6N664 LR072224
TUBE
2.0L I4 DSL MID DOHC AJ200 / Breather Pipe / From: GH000001 		$45.89 1
6N664 LR094079
TUBE - BREATHER
2.0L I4 High DOHC AJ200 Petrol / Breather Pipe / From: JH000001 		$38.55 1
6N664 LR072630
TUBE - BREATHER
2.2L CR DI 16V Diesel, 9 Speed Auto AWD / Breather Pipe / From: FH047926 		$38.82 1
7B214 LR051289
FLANGE - DIFFERENTIAL
PTU Flange / From: EH000001 		$278.60 1
7H001A LR049847
HEAT SHIELD - TRANSFER CASE
Main / From: EH000001 / To: EH872916 		$51.53 1
7H001A LR061466
HEAT SHIELD - TRANSFER CASE
Main / From: EH872917 / To: FH035327 		$82.10 1
7H001A LR068975
HEAT SHIELD - TRANSFER CASE
Main / From: FH035328 		$24.50 1
7H001B LR054809
HEAT SHIELD - TRANSFER CASE
2.0L 16V TIVCT T/C Gen2 Petrol / Additional / From: EH000001 		$98.64 1
7H426 LR051288
SEAL - POWER TRANSFER UNIT
For Differential Flange / From: EH000001 		$22.72 1
7H429A LR003153
RING - SEALING
RH, Driveshaft, Inner / From: EH000001 		$17.32 1
7H429B LR051397
SEAL - POWER TRANSFER UNIT
LH, Driveshaft, Inner / From: EH000001 		$18.65 1
7H469A LR001950
RING - SEALING
RH, Driveshaft, Outer / From: EH000001 		$17.36 1
7H469B LR003155
RING - SEALING
LH, Driveshaft, Outer / From: EH000001 		$33.42 1
7L486 LR051076
POWER TRANSFER UNIT
New Part - Please Check For Remanufactured Version / From: EH000001 		$2,893.35 1
7L486 LR066500
POWER TRANSFER UNIT
Remanufactured Part / From: EH000001 		$2,104.24 1
18A447 LR051510
CAP - BLANKING
20MM / From: EH000001 / To: EH999999 		$10.97 1
18A447 LR084600
PLUG - BLANKING
20MM / From: FH000001 		$36.33 1
4753 LR051083
PIPE - CONNECTING
Breather Pipe, Connection / From: EH000001 / To: HH190580 		$11.63 1
4753 LR095326
PIPE - CONNECTING
Breather Pipe, Connection / From: HH190581 		$19.63 1
