| Photo | Part No | Description | Price (each) | Stock |
 |
LR000653 | BOLT | $2.12 | To Order |
|
LR076010 | BOLT | $4.85 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR005486 | BOLT | $3.05 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR002965 | DOWEL - PIN | $7.08 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR032908 | NUT | $7.80 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR021622 | STUD - SPECIAL | $14.21 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR001251 | GEAR - CAMSHAFT DRIVE | $124.69 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR000664 | SPACER - CAMSHAFT | $12.42 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR000665 | GEAR - CRANKSHAFT | $150.52 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |

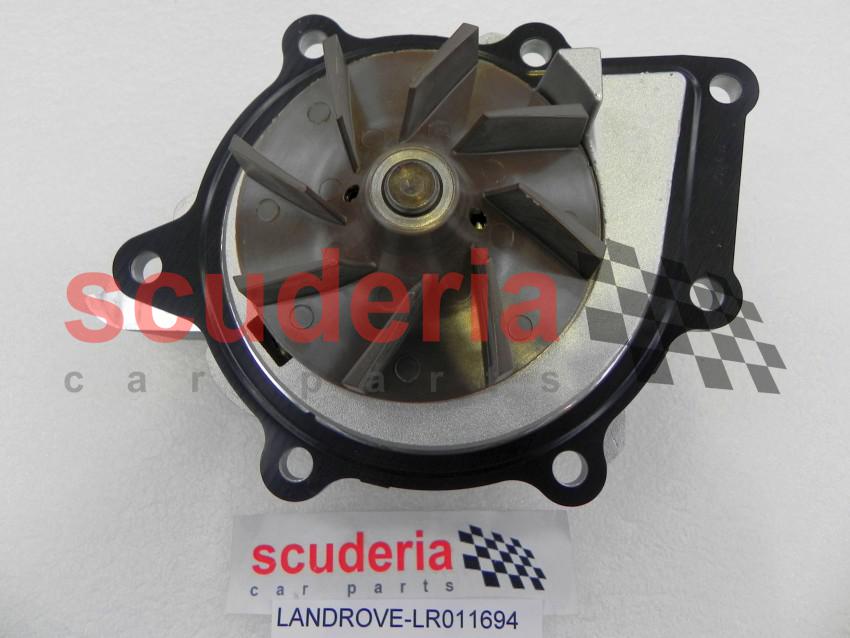

LR011694 | PUMP - WATER | $225.12 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR009395 | PULLEY - TENSION | $174.88 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR004257 | BELT - TIMING | $111.53 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR000660 | IDLER - TIMING BELT | $86.12 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR032526 | KIT - TIMING BELT | $262.62 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR032527 | KIT - TIMING BELT & WATER PUMP | $491.81 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HB1 |
LR000653 BOLT M10 x 40MM / To: CH630565 |
$2.12 | 1 | |
| HB1 |
LR076010 BOLT M10 x 40MM / From: CH630566 |
$4.85 | 1 | |
| HB2 |
LR005486 BOLT Hexagonal Head, M10 x 82mm |
$3.05 | 1 | |
| HM1 |
LR002965 DOWEL - PIN Pin - Dowell |
$7.08 | 1 | |
| HN1 |
LR032908 NUT M8 Hex, Tensioner |
$7.80 | 1 | |
| HT1 |
LR021622 STUD - SPECIAL M8 X 56MM, Tensioner |
$14.21 | 1 | |
| 6B217 |
LR009395 PULLEY - TENSION |
$174.88 | 1 | |
| 6K288 |
LR004257 BELT - TIMING |
$111.53 | 1 | |
| 6M250 |
LR000660 IDLER - TIMING BELT |
$86.12 | 1 | |
| 6M260 |
LR032526 KIT - TIMING BELT Less Pump |
$262.62 | 1 | |
| 8B596 |
LR032527 KIT - TIMING BELT & WATER PUMP With Pump |
$491.81 | 1 | |
| 6256 |
LR001251 GEAR - CAMSHAFT DRIVE |
$124.69 | 1 | |
| 6278 |
LR000664 SPACER - CAMSHAFT |
$12.42 | 1 | |
| 6306 |
LR000665 GEAR - CRANKSHAFT |
$150.52 | 1 | |
| 8501 |
LR011694 PUMP - WATER IN STOCK |
$225.12 | 1 |
Haven't found what you're looking for?

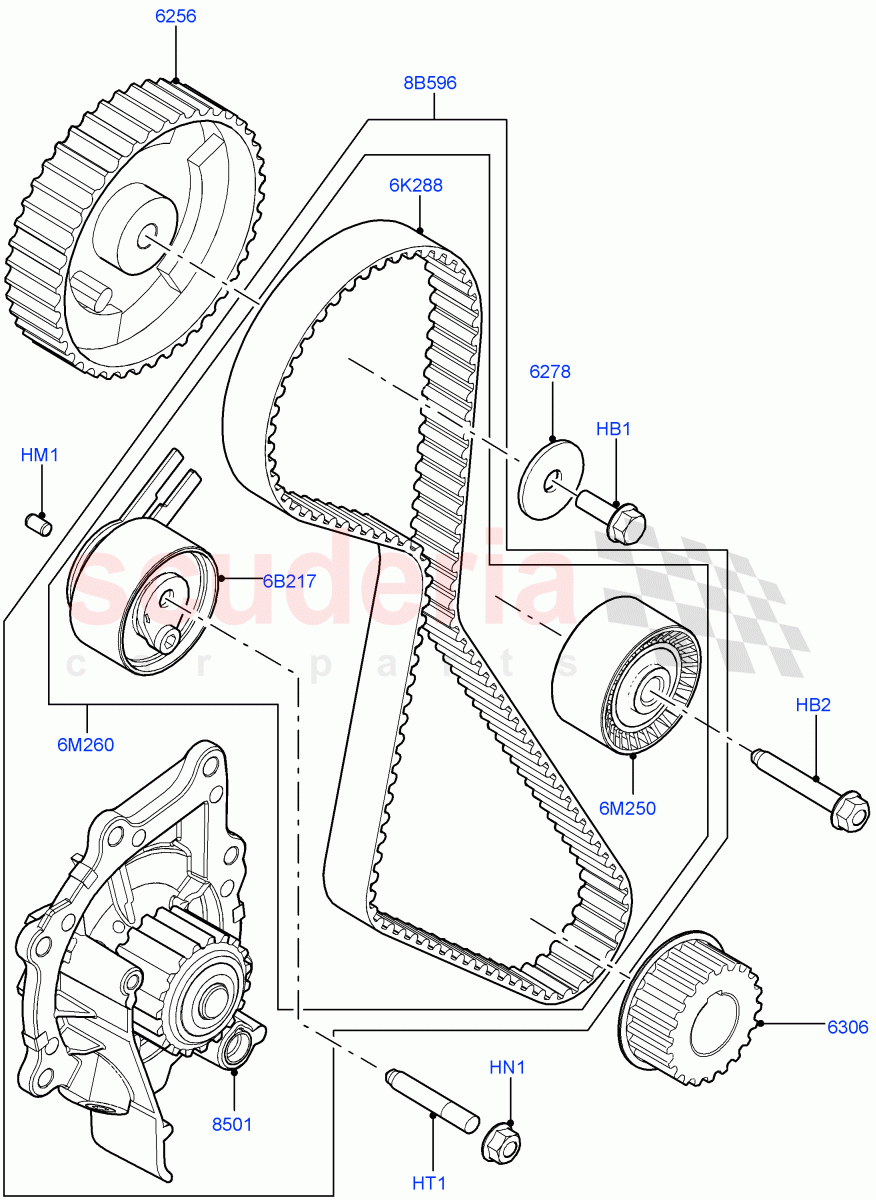

![Camshaft Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]](/images/diagrams/landrover/Q5ZFGRF4CYA9WNYMWQMY.gif)
