Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Fuel Lines (Centre And Front) (2.2L CR DI 16V Diesel)

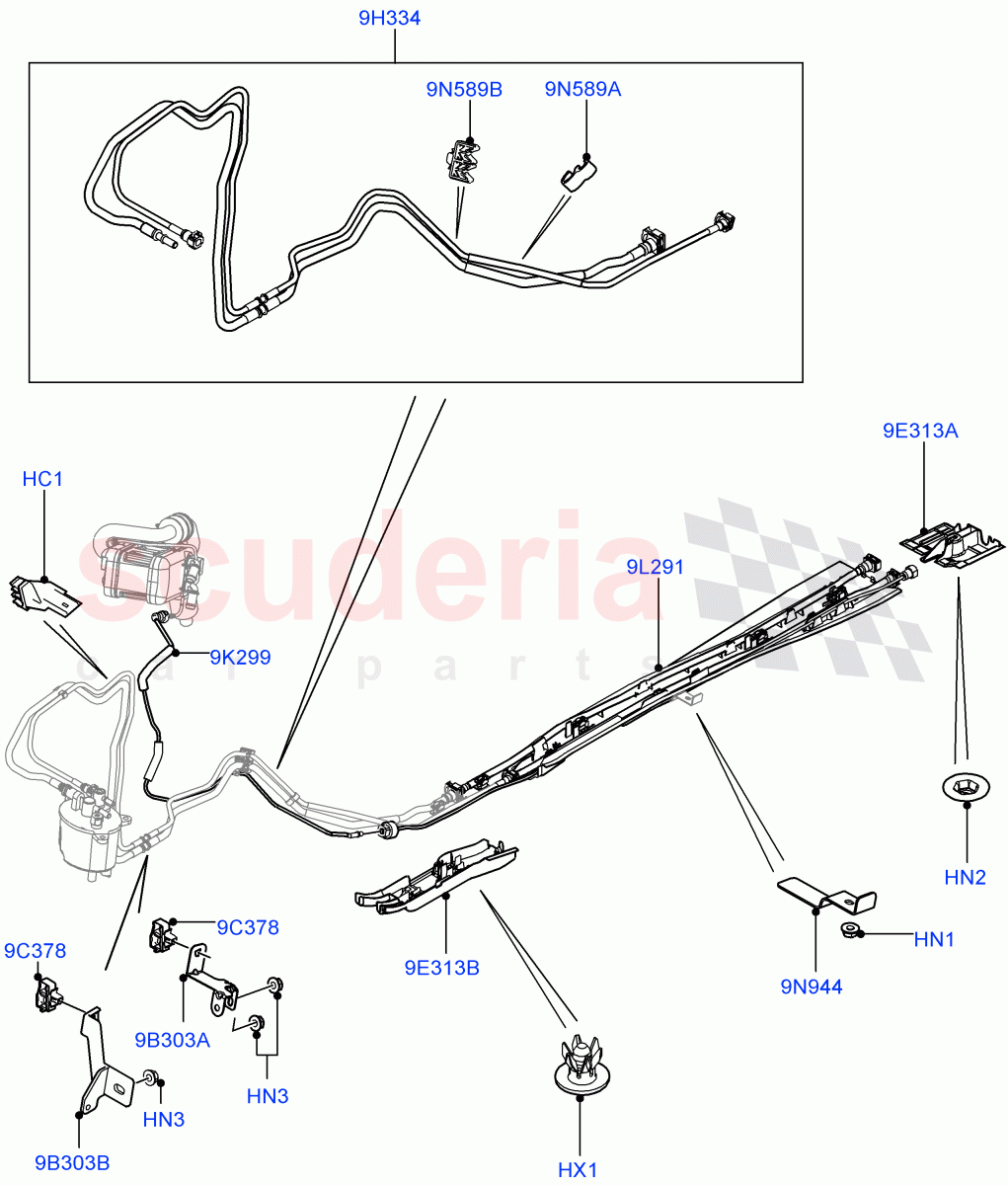

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028434 CLIP - HOSE $2.93 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR003643 NUT - SPECIAL $0.61 To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR004550 RETAINER $3.68 To Order
Photo Part No Description Price (each) Stock
LR027885 TUBE - FUEL SUPPLY $166.37 To Order
LR076610 TUBE - FUEL SUPPLY $148.48 IN STOCK
Photo Part No Description Price (each) Stock
LR027884 PIPE - FUEL $47.56 To Order
Photo Part No Description Price (each) Stock
LR023085 TUBE - FUEL SUPPLY $61.40 To Order
LR023084 TUBE - FUEL SUPPLY $62.56 To Order
Photo Part No Description Price (each) Stock
LR005291 BRACKET - FUEL LINES $44.25 To Order
Photo Part No Description Price (each) Stock
LR003892 BRACKET - FUEL TUBE SUPPORT $3.01 To Order
Photo Part No Description Price (each) Stock
LR049860 BRACKET - FUEL TUBE SUPPORT $23.19 To Order
Photo Part No Description Price (each) Stock
LR003826 SHIELD - FUEL TUBES $7.74 To Order
Photo Part No Description Price (each) Stock
LR005634 SHIELD - FUEL TUBES $6.16 To Order
Photo Part No Description Price (each) Stock
LR027888 CLIP - PIPE $1.36 To Order
Photo Part No Description Price (each) Stock
LR027889 CLIP - PIPE $2.75 To Order
View All
Fuel Lines (Centre And Front) (2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR028434
CLIP - HOSE
For Fuel Tube 		$2.93 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 1
HN2 LR003643
NUT - SPECIAL
Fuel Fired Heater With Park Heat / M5 		$0.61 1
HN3 FN108046
NUT - HEX.
Hexagonal Head, M8 		$1.97 2
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5
IN STOCK 		$1.46 1
9B303A LR003892
BRACKET - FUEL TUBE SUPPORT
To: DH999999 		$3.01 1
9B303B LR049860
BRACKET - FUEL TUBE SUPPORT
From: EH000001 		$23.19 1
9C378 LR004550
RETAINER 		$3.68 2
9E313A LR003826
SHIELD - FUEL TUBES
Rear 		$7.74 1
9E313B LR005634
SHIELD - FUEL TUBES
Front 		$6.16 1
9H334 LR027885
TUBE - FUEL SUPPLY
To: FH075740 		$166.37 1
9H334 LR076610
TUBE - FUEL SUPPLY
From: FH075741
IN STOCK 		$148.48 1
9K299 LR027884
PIPE - FUEL
With Fuel Fired Heater / Fuel Supply 		$47.56 1
9L291 LR023085
TUBE - FUEL SUPPLY
With Ptc Heater 		$61.40 1
9L291 LR023084
TUBE - FUEL SUPPLY
Fuel Heater W/Pk Heat With Remote 		$62.56 1
9N589A LR027888
CLIP - PIPE 		$1.36 1
9N589B LR027889
CLIP - PIPE 		$2.75 1
9N944 LR005291
BRACKET - FUEL LINES
Support Bracket 		$44.25 1
