Name: Turbocharger (2.2L CR DI 16V Diesel) ((V) FROMBH000001)
Rating: 4.2 (1 reviews)

Turbocharger (2.2L CR DI 16V Diesel) ((V) FROMBH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Turbocharger (2.2L CR DI 16V Diesel) ((V) FROMBH000001)

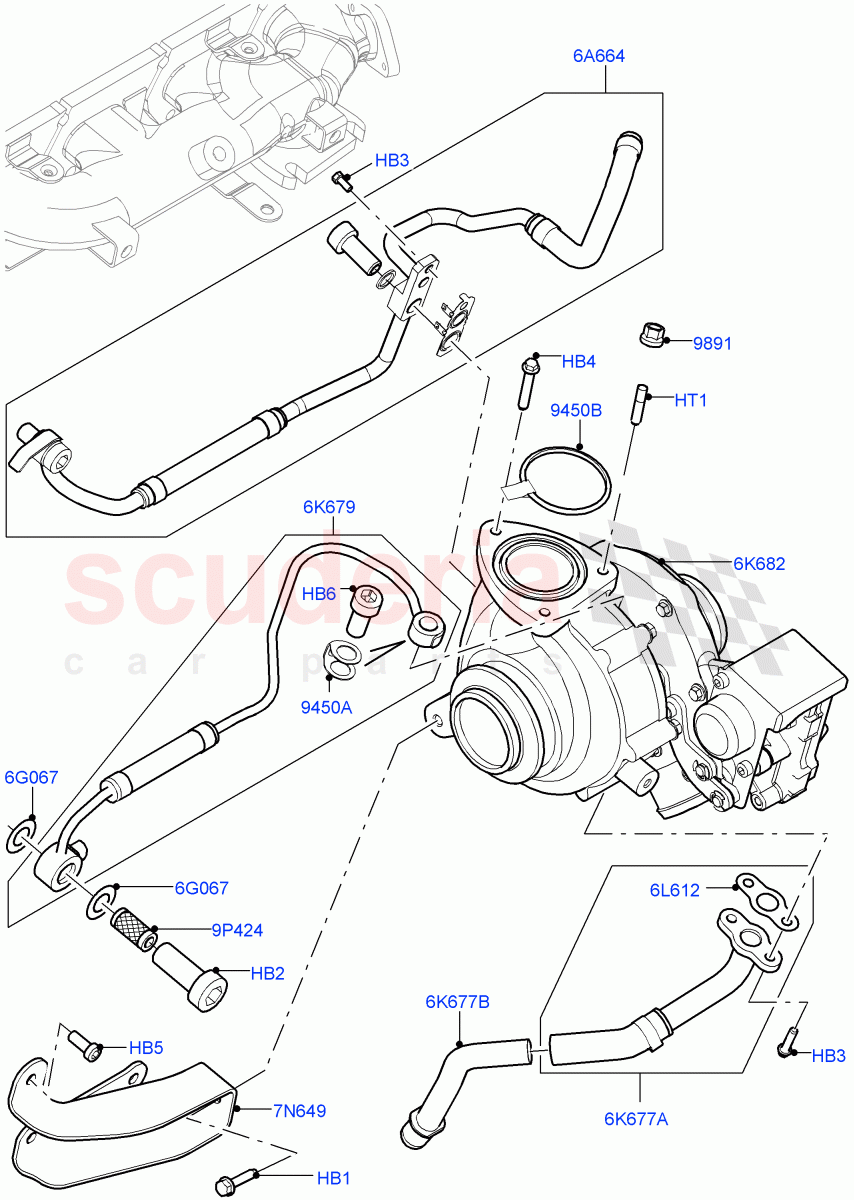

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR021746	BOLT - HEX.HEAD	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006812	BOLT - BANJO	$12.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019628	BOLT - HEX.HEAD	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002839	BOLT	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002853	BOLT - HEX.HEAD	$5.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023174	BOLT	$7.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019985	STUD	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019984	NUT - HEX.	$4.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025919	TUBE - WATER OUTLET	$144.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013022	RING - SEALING	$13.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031769	PIPE - OIL FEED	$127.52	To Order
	LR045473	PIPE - OIL FEED	$86.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022358	TURBOCHARGER	$3,013.20	To Order
	LR038322	TURBOCHARGER	$2,491.02	To Order
	LR065510	TURBOCHARGER	$2,206.50	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR023208	GASKET - TURBOCHARGER	$8.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR022299	BRACKET - TURBOCHARGER	$70.67	To Order
	LR069003	BRACKET - TURBOCHARGER	$66.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023175	WASHER - BANJO BOLT	$12.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025920	GASKET - EXHAUST MANIFOLD	$22.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016682	FILTER - TURBOCHARGER OIL FEED	$54.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022101	HOSE - OIL RETURN	$182.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009341	HOSE - CONNECTING	$22.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR021746	BOLT - HEX.HEAD	LR021746 BOLT - HEX.HEAD Bracket, Hexagonal Head, M8 x 50MM, Turbocharger Assembly	$5.14	1
HB2	LR006812	BOLT - BANJO	LR006812 BOLT - BANJO Banjo Bolt	$12.97	1
HB3	LR019628	BOLT - HEX.HEAD	LR019628 BOLT - HEX.HEAD Hexagonal Head, M6 X 16MM	$1.76	3
HB4	LR002839	BOLT	LR002839 BOLT M8 X 35MM, Turbocharger Assembly	$1.81	1
HB5	LR002853	BOLT - HEX.HEAD	LR002853 BOLT - HEX.HEAD Bracket, M8 X 20MM(TORX)	$5.77	3
HB6	LR023174	BOLT	LR023174 BOLT Feed, Hose Assy	$7.20	1
HT1	LR019985	STUD	LR019985 STUD M8 x 10MM, M8 X 25MM, Turbocharger Assembly	$5.90	2
6A664	LR025919	TUBE - WATER OUTLET	LR025919 TUBE - WATER OUTLET Cooling For Turbocharger	$144.19	1
6G067	LR013022	RING - SEALING	LR013022 RING - SEALING Filter - Turbocharger Oil Feed Hose	$13.76	2
6K677A	LR022101	HOSE - OIL RETURN	LR022101 HOSE - OIL RETURN	$182.74	1
6K677B	LR009341	HOSE - CONNECTING	LR009341 HOSE - CONNECTING Lower	$22.89	1
6K679	LR031769	PIPE - OIL FEED	LR031769 PIPE - OIL FEED To: DH741651	$127.52	1
6K679	LR045473	PIPE - OIL FEED	LR045473 PIPE - OIL FEED From: DH741652	$86.78	1
6K682	LR022358	TURBOCHARGER	LR022358 TURBOCHARGER New Part-Please Check For Reman Version / To: CH703770	$3,013.20	1
6K682	LR038322	TURBOCHARGER	LR038322 TURBOCHARGER New Part-Please Check For Reman Version / From: CH703771 / To: EH886203	$2,491.02	1
6K682	LR065510	TURBOCHARGER	LR065510 TURBOCHARGER New Part-Please Check For Reman Version / From: EH886204	$2,206.50	1
6K682	LR065511	TURBOCHARGER	LR065511 TURBOCHARGER Remanufactured Part	$1,537.96	1
6L612	LR023208	GASKET - TURBOCHARGER IN STOCK	LR023208 GASKET - TURBOCHARGER Oil - Drain IN STOCK	$8.76	1
7N649	LR022299	BRACKET - TURBOCHARGER	LR022299 BRACKET - TURBOCHARGER To: EH856720	$70.67	1
7N649	LR069003	BRACKET - TURBOCHARGER	LR069003 BRACKET - TURBOCHARGER From: EH856721	$66.74	1
9P424	LR016682	FILTER - TURBOCHARGER OIL FEED	LR016682 FILTER - TURBOCHARGER OIL FEED	$54.93	1
9450A	LR023175	WASHER - BANJO BOLT IN STOCK	LR023175 WASHER - BANJO BOLT Turbocharger Oil Feed IN STOCK	$12.30	1
9450B	LR025920	GASKET - EXHAUST MANIFOLD	LR025920 GASKET - EXHAUST MANIFOLD Exhaust Manifold	$22.82	1
9891	LR019984	NUT - HEX.	LR019984 NUT - HEX. Turbocharger Assembly	$4.27	2

Turbocharger (2.2L Cr Di 16V Diesel) ((V) Frombh000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Turbocharger (2.2L CR DI 16V Diesel) ((V) FROMBH000001)
