Name: Exhaust System (2.2L CR DI 16V Diesel, EU2, Euro Stage 4 Emissions, EU4 - India)
Rating: 4.5 (1 reviews)

View All

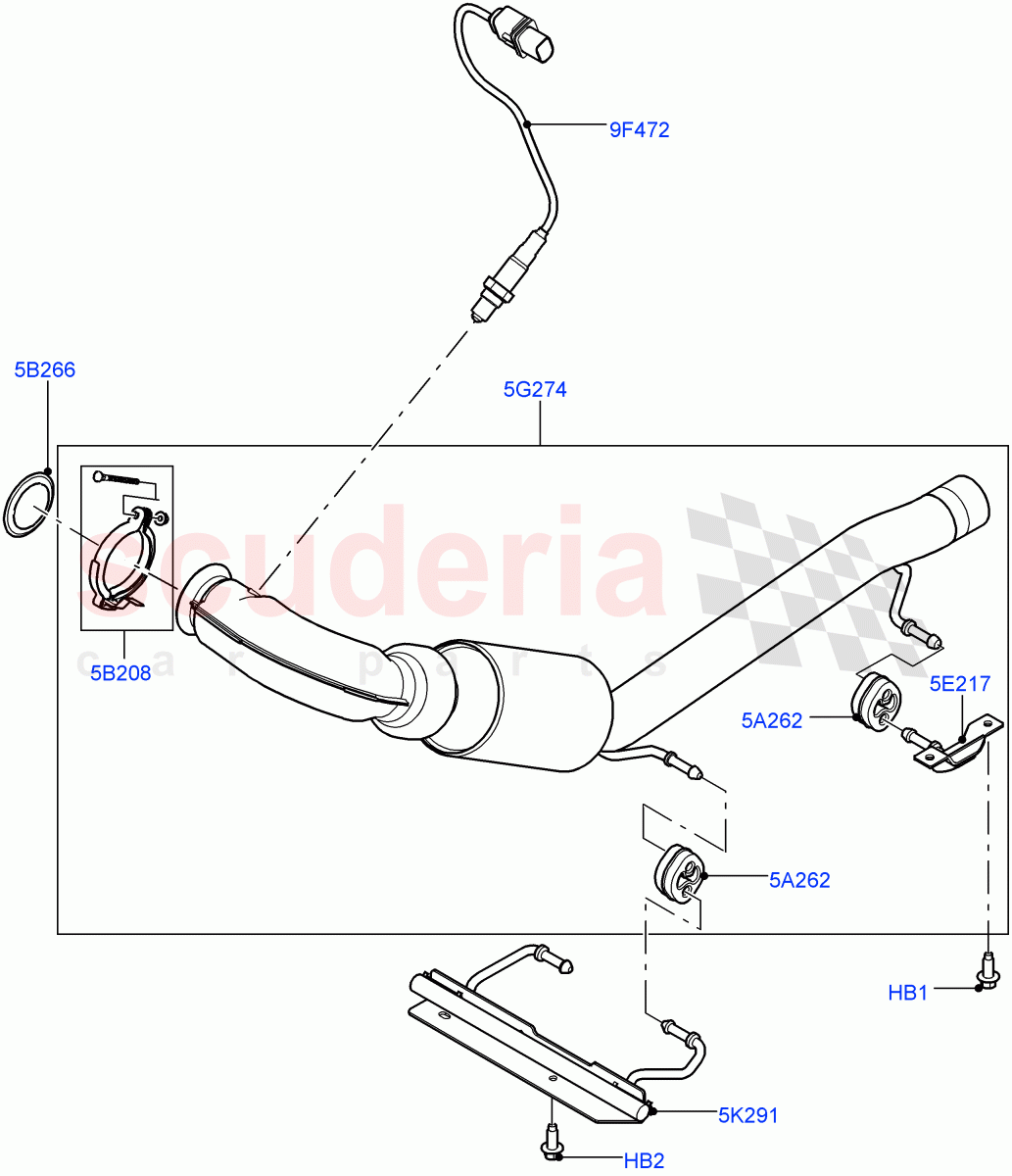

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001115	CLAMP - EXHAUST	$13.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000954	GASKET - EXHAUST PIPE	$19.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025109	BRACKET - EXHAUST PIPE MOUNTING	$36.82	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024227	BRACKET - EXHAUST PIPE MOUNTING	$39.60	To Order
	LR077874	BRACKET - EXHAUST PIPE MOUNTING	$25.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001370	SENSOR - EXHAUST GAS - OXYGEN	$350.25	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$1.03	2
HB2	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM IN STOCK	$1.43	2
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER	$11.74	3
5B208	LR001115	CLAMP - EXHAUST	LR001115 CLAMP - EXHAUST	$13.76	1
5B266	LR000954	GASKET - EXHAUST PIPE	LR000954 GASKET - EXHAUST PIPE Front	$19.20	1
5E217	LR025109	BRACKET - EXHAUST PIPE MOUNTING	LR025109 BRACKET - EXHAUST PIPE MOUNTING Middle, Single	$36.82	1
5G274	LR024240	PIPE - EXHAUST	LR024240 PIPE - EXHAUST Catalyst Assy / To: CH681628	$1,869.45	1
5G274	LR041436	PIPE - EXHAUST	LR041436 PIPE - EXHAUST Catalyst Assy / From: CH681629 / To: DH844723	$1,557.85	1
5G274	LR049952	PIPE - EXHAUST	LR049952 PIPE - EXHAUST Catalyst Assy / From: EH000001 / To: FH982400	$1,509.89	1
5G274	LR056994	PIPE - EXHAUST	LR056994 PIPE - EXHAUST Catalyst Assy / From: DH844724 / To: DH999999	$1,527.30	1
5G274	LR067415	PIPE - EXHAUST	LR067415 PIPE - EXHAUST Catalyst Assy / From: FH982401	$1,375.42	1
5K291	LR024227	BRACKET - EXHAUST PIPE MOUNTING	LR024227 BRACKET - EXHAUST PIPE MOUNTING Double, Front / To: GH123008	$39.60	1
5K291	LR077874	BRACKET - EXHAUST PIPE MOUNTING	LR077874 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: GH123009	$25.93	1
9F472	LR001370	SENSOR - EXHAUST GAS - OXYGEN	LR001370 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen	$350.25	1

Exhaust System (2.2L Cr Di 16V Diesel, Eu2, Euro Stage 4 Emissions, Eu4 - India)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]
