| Photo | Part No | Description | Price (each) | Stock |
 |
FN108042 | NUT | $1.40 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR009408 | STUD | $8.71 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR000680 | SEAL - PLUG | $2.25 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR001262 | GASKET - OIL FILTER | $31.18 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
 |
LR001247 | FILTER - OIL - ELEMENT AND SEAL | $22.27 | IN STOCK |
| Photo | Part No | Description | Price (each) | Stock |
|
LR002840 | CLAMP - HOSE | $2.14 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR005365 | SWITCH - OIL PRESSURE | $30.61 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR006205 | COVER - OIL FILTER | $59.00 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR006653 | OIL FILTER AND COOLER | $446.94 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR021623 | TUBE - WATER INLET | $41.62 | To Order |
| Photo | Part No | Description | Price (each) | Stock |
|
LR006660 | CONNECTOR - OIL COOLER | $12.33 | To Order |
| # | Part Details | Price (each) |
Qty on Diagram |
Add to Cart |
|---|---|---|---|---|
| HN1 |
FN108042 NUT M8 |
$1.40 | 4 | |
| HT1 |
LR009408 STUD M8 x 31MM |
$8.71 | 4 | |
| 6A832 |
LR006205 COVER - OIL FILTER |
$59.00 | 1 | |
| 6B624 |
LR006653 OIL FILTER AND COOLER |
$446.94 | 1 | |
| 8A520 |
LR021623 TUBE - WATER INLET |
$41.62 | 1 | |
| 8A560 |
LR006660 CONNECTOR - OIL COOLER Engine, Oil Cooler, Return |
$12.33 | 1 | |
| 6424 |
LR000680 SEAL - PLUG Sealing Washer |
$2.25 | 1 | |
| 6619 |
LR001262 GASKET - OIL FILTER |
$31.18 | 1 | |
| 6731 |
LR001247 FILTER - OIL - ELEMENT AND SEAL Element And Seal IN STOCK |
$22.27 | 1 | |
| 8287 |
LR002840 CLAMP - HOSE |
$2.14 | 1 | |
| 9278 |
LR005365 SWITCH - OIL PRESSURE |
$30.61 | 1 |
Haven't found what you're looking for?

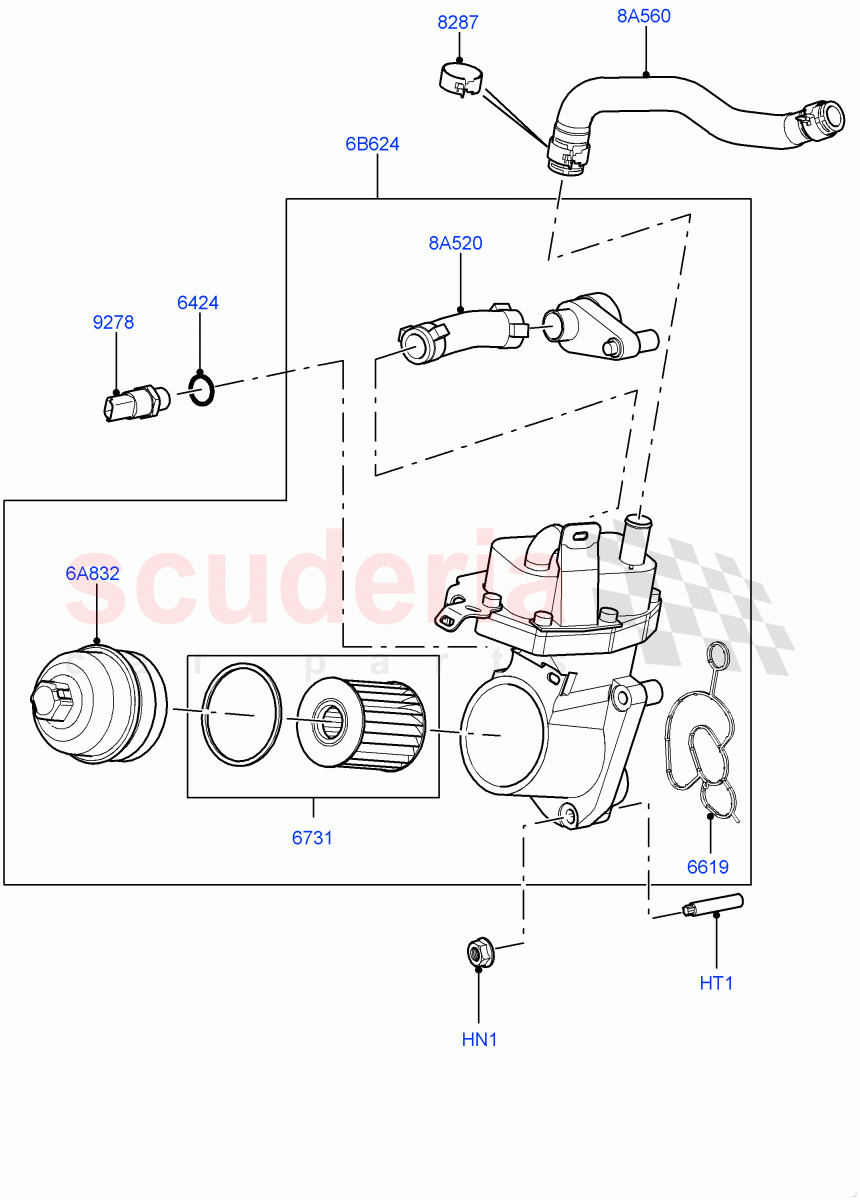

![Oil Cooler And Filter (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]](/images/diagrams/landrover/Y6ELWQF852KHAYC5SZET.gif)
