Exhaust Gas Recirculation (2.2L Cr Di 16V Diesel) ((V) Frombh000001)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Exhaust Gas Recirculation (2.2L CR DI 16V Diesel) ((V) FROMBH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003430 SCREW $3.67 To Order
Photo Part No Description Price (each) Stock
LR003429 SCREW $1.41 To Order
Photo Part No Description Price (each) Stock
LR003426 BOLT $5.97 To Order
Photo Part No Description Price (each) Stock
LR013333 SCREW $5.60 To Order
Photo Part No Description Price (each) Stock
LR023279 STUD $2.55 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
FN106047L NUT - FLANGED $1.78 IN STOCK
Photo Part No Description Price (each) Stock
LR022852 SCREW $8.32 To Order
Photo Part No Description Price (each) Stock
LR082289 KIT - EGR COOLER REPAIR $145.64 To Order
Photo Part No Description Price (each) Stock
LR000997 VALVE - EXHAUST GAS RECIRCULATION $500.21 To Order
Photo Part No Description Price (each) Stock
LR000998 GASKET - EGR COOLER $20.25 IN STOCK
Photo Part No Description Price (each) Stock
LR004245 TUBE - CONNECTING $289.41 To Order
Photo Part No Description Price (each) Stock
LR017782 VALVE - EGR VACUUM CONTROL $395.39 To Order
Photo Part No Description Price (each) Stock
LR022354 COOLER - EGR $537.42 To Order
LR057662 COOLER - EGR $653.66 To Order
Photo Part No Description Price (each) Stock
LR003652 CONNECTOR - EXHAUST $20.68 To Order
Photo Part No Description Price (each) Stock
LR022515 GASKET - EGR COOLER $11.54 To Order
Photo Part No Description Price (each) Stock
LR078480 HOSE - EGR COOLER $92.87 To Order
LR073552 HOSE - EGR COOLER $121.58 To Order
LR078480 HOSE - EGR COOLER $92.87 To Order
Photo Part No Description Price (each) Stock
LR009785 HOSE - VACUUM $45.61 To Order
Photo Part No Description Price (each) Stock
LR054615 HOSE - VACUUM $45.58 To Order
LR023020 HOSE - VACUUM $38.39 To Order
Photo Part No Description Price (each) Stock
LR022516 HOSE - VACUUM $41.79 To Order
Photo Part No Description Price (each) Stock
LR006656 BRACKET - VALVE $67.38 To Order
Photo Part No Description Price (each) Stock
LR022654 BRACKET - VALVE $68.34 To Order
View All

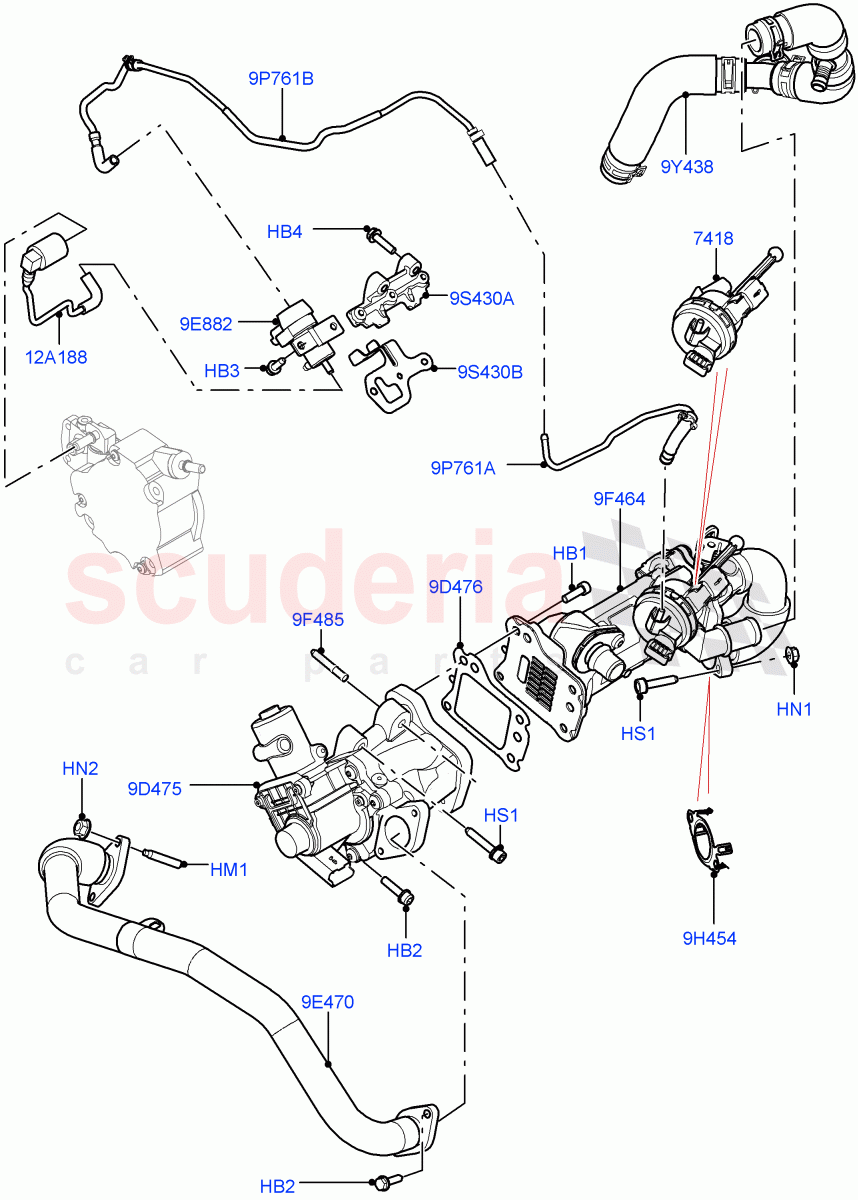

Exhaust Gas Recirculation (2.2L CR DI 16V Diesel) ((V) FROMBH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR003430
SCREW
EGR Cooler To EGR Valve, M6 X 20MM 		$3.67 4
HB2 LR003429
SCREW
EGR Valve, M6 X 25MM 		$1.41 4
HB3 LR003426
BOLT
M6 X 20MM 		$5.97 2
HB4 LR013333
SCREW
M6 x 25MM 		$5.60 2
HM1 LR023279
STUD
M6 X 22.5, Stud 		$2.55 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 3
HN2 FN106047L
NUT - FLANGED
M6
IN STOCK 		$1.78 2
HS1 LR022852
SCREW
M6 x 22MM 		$8.32 3
9D475 LR000997
VALVE - EXHAUST GAS RECIRCULATION 		$500.21 1
9D476 LR000998
GASKET - EGR COOLER
EGR Cooler To EGR Valve
IN STOCK 		$20.25 1
9E470 LR004245
TUBE - CONNECTING
EGR Valve To Inlet Manifold 		$289.41 1
9E882 LR017782
VALVE - EGR VACUUM CONTROL 		$395.39 1
9F464 LR022354
COOLER - EGR
To: CH599999 		$537.42 1
9F464 LR057662
COOLER - EGR
From: CH600000 		$653.66 1
9F485 LR003652
CONNECTOR - EXHAUST
M6 X 40MM, Stud 		$20.68 1
9H454 LR022515
GASKET - EGR COOLER
Exhaust Manifold To EGR Cooler 		$11.54 1
9P761A LR054615
HOSE - VACUUM
Control Valve To EGR Cooler - Shorter / From: EH000001 		$45.58 1
9P761A LR023020
HOSE - VACUUM
Control Valve To EGR Cooler - Shorter, Vacuum EGR Cooler Bypass Actuator / To: DH999999 		$38.39 1
9P761B LR022516
HOSE - VACUUM
Control Valve To EGR Cooler - Longer 		$41.79 1
9S430A LR006656
BRACKET - VALVE
Valve Assembly 		$67.38 1
9S430B LR022654
BRACKET - VALVE
Clip, To Vacuum 		$68.34 1
9Y438 LR078480
HOSE - EGR COOLER
Cooled EGR, Inlet / To: DH999999 		$92.87 1
9Y438 LR073552
HOSE - EGR COOLER
Cooled EGR, Inlet / From: EH000001 / To: FH303026 		$121.58 1
9Y438 LR078480
HOSE - EGR COOLER
Cooled EGR, Inlet / From: FH303027 		$92.87 1
12A188 LR009785
HOSE - VACUUM
Vacuum Pump To Control Valve 		$45.61 1
7418 LR082289
KIT - EGR COOLER REPAIR 		$145.64 1
