Air Cleaner (2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Air Cleaner (2.2L CR DI 16V Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000033 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
LR030371 BOLT $1.32 To Order
Photo Part No Description Price (each) Stock
LR024316 PIN $3.43 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR066535 SCREW $2.63 To Order
Photo Part No Description Price (each) Stock
LR024309 CLEANER - AIR $141.81 To Order
LR053013 CLEANER - AIR $509.30 To Order
Photo Part No Description Price (each) Stock
LR161844 FILTER - AIR CLEANER $33.89 IN STOCK
Photo Part No Description Price (each) Stock
LR024311 TUBE - AIR CLEANER INTAKE $69.59 To Order
Photo Part No Description Price (each) Stock
LR025326 CONNECTION - AIR INLET $98.77 To Order
Photo Part No Description Price (each) Stock
LR022464 DUCT - AIR $198.42 To Order
LR049679 DUCT - AIR $260.68 To Order
Photo Part No Description Price (each) Stock
LR024308 DUCT - AIR $154.66 To Order
LR049681 DUCT - AIR $187.47 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.93 IN STOCK
Photo Part No Description Price (each) Stock
LR019830 SENSOR - MASS AIR FLOW $149.92 To Order
Photo Part No Description Price (each) Stock
LR060069 INSULATOR - AIR CLEANER HOUSING $14.80 To Order
View All

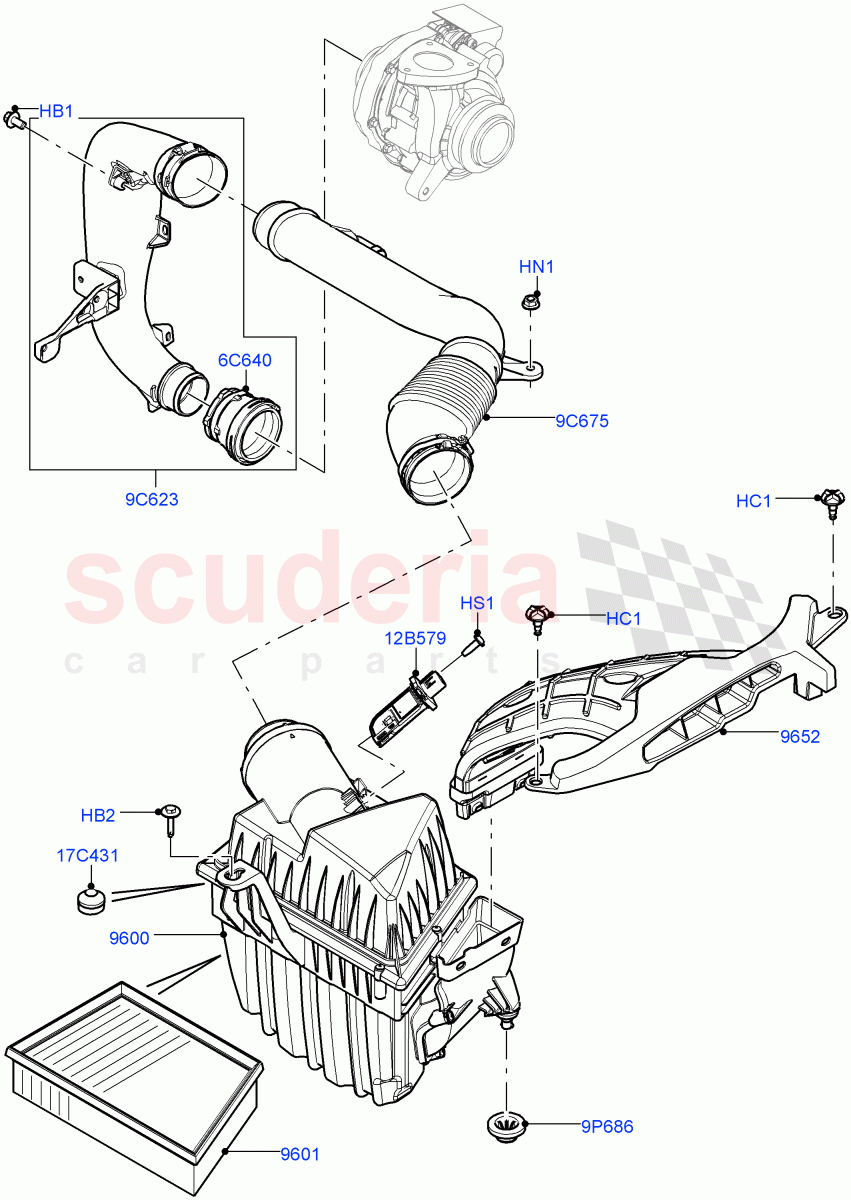

Air Cleaner (2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR000033
SCREW
Hexagonal Head, M6 x 12MM 		$0.52 1
HB2 LR030371
BOLT
Bolt And Washer, Hexagonal Head, M6 x 25MM 		$1.32 1
HC1 LR024316
PIN
Rivet Blind 9.4 X 13
IN STOCK 		$3.43 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 1
HS1 LR066535
SCREW
4 X 12MM 		$2.63 2
6C640 LR025326
CONNECTION - AIR INLET
Connection, Turbocharger Inlet 		$98.77 1
9C623 LR022464
DUCT - AIR
Turbocharger Inlet / To: DH999999 		$198.42 1
9C623 LR049679
DUCT - AIR
Turbocharger Inlet / From: EH000001 		$260.68 1
9C675 LR024308
DUCT - AIR
Air Filter Housing To Turbocharger Inlet Tube / To: DH999999 		$154.66 1
9C675 LR049681
DUCT - AIR
Air Filter Housing To Turbocharger Inlet Tube / From: EH000001 		$187.47 1
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown
IN STOCK 		$4.93 4
12B579 LR019830
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		$149.92 1
17C431 LR060069
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown 		$14.80 1
9600 LR024309
CLEANER - AIR
Housing Assy / To: DH999999 		$141.81 1
9600 LR053013
CLEANER - AIR
Housing Assy / From: EH000001 		$509.30 1
9601 LR161844
FILTER - AIR CLEANER
IN STOCK 		$33.89 1
9652 LR024311
TUBE - AIR CLEANER INTAKE 		$69.59 1
