Air Conditioning System (2.0L 16V Tivct T/C 240Ps Petrol, Itatiaia (Brazil), 2.0L I4 Dsl Mid Dohc...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Air Conditioning System (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil), 2.0L I4 DSL MID DOHC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010925 BOLT $2.97 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
LR002724 O-RING $5.37 To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING $4.39 To Order
Photo Part No Description Price (each) Stock
LR002720 O-RING $4.89 To Order
Photo Part No Description Price (each) Stock
LR002718 O-RING $13.06 To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.34 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.93 To Order
Photo Part No Description Price (each) Stock
LR027790 HOSE - AIR CONDITIONING $38.19 To Order
LR105245 HOSE - AIR CONDITIONING $206.75 To Order
Photo Part No Description Price (each) Stock
LR020017 SLEEVE - INSULATING $26.04 To Order
Photo Part No Description Price (each) Stock
LR070473 TUBE- A/C EVAPORATOR INLET & OUTLET $429.25 To Order
LR079428 TUBE- A/C EVAPORATOR INLET & OUTLET $170.51 To Order
LR094351 TUBE- A/C EVAPORATOR INLET & OUTLET $265.28 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012018 SWITCH - AIR CONDIT.SYSTEM - VACUUM $165.04 To Order
Photo Part No Description Price (each) Stock
LR003186 INSERT - RING $16.59 To Order
Photo Part No Description Price (each) Stock
LR003185 INSERT - RING $16.59 To Order
Photo Part No Description Price (each) Stock
LR003187 INSERT - RING $16.59 To Order
Photo Part No Description Price (each) Stock
LR002653 CAP - VALVE $28.11 To Order
Photo Part No Description Price (each) Stock
LR002654 CAP $20.04 To Order
Photo Part No Description Price (each) Stock
LR010311 BRACKET - A/C PIPE $7.88 To Order
Photo Part No Description Price (each) Stock
LR002655 BRACKET - COOLING HOSE $1.70 To Order
Photo Part No Description Price (each) Stock
LR002629 BRACKET - A/C PIPE $10.19 To Order
Photo Part No Description Price (each) Stock
LR070475 TUBE AND HOSE-A/C COMPRESSOR OUTLET $214.22 To Order
LR070476 TUBE AND HOSE-A/C COMPRESSOR OUTLET $233.59 To Order
Photo Part No Description Price (each) Stock
LR061889 TUBE AND HOSE-A/C COMPRESSOR INLET $200.59 To Order
LR070477 TUBE - COMPRESSOR DELIVERY $233.59 To Order
View All

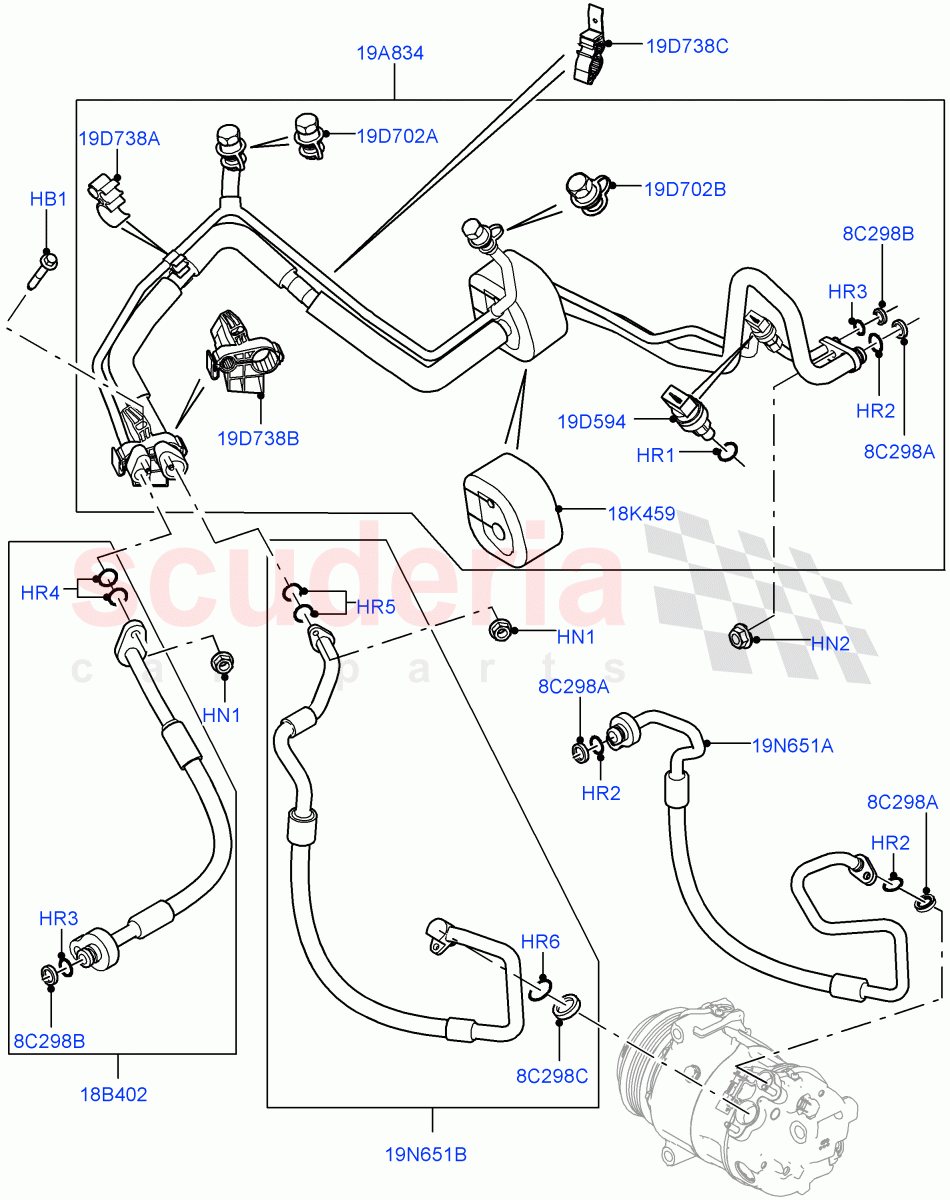

Air Conditioning System (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil), 2.0L I4 DSL MID DOHC AJ200, 2.0L I4 Mid AJ200 Petrol E100, 2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010925
BOLT
Hexagonal Head, M6 x 50MM / From: GT000001 		$2.97 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: GT000001
IN STOCK 		$1.46 3
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: GT000001 		$1.97 4
HR1 LR002724
O-RING
13.7 X 2.5MM / From: GT000001 		$5.37 3
HR2 LR002719
O-RING
9.5 X 2.5MM / From: GT000001 		$4.39 2
HR3 LR002720
O-RING
16.25 X 2.5MM / From: GT000001 		$4.89 2
HR4 LR002718
O-RING
7.66 x 1.78mm / From: GT000001 		$13.06 1
HR5 LR044466
O-RING
7.65 X 1.78 / From: GT000001 		$4.34 2
HR6 LR044465
O-RING
14 X 1.78 / From: GT000001 		$2.93 2
8C298A LR003186
INSERT - RING 		$16.59 2
8C298B LR003185
INSERT - RING
From: GT000001 		$16.59 2
8C298C LR003187
INSERT - RING
From: GT000001 		$16.59 2
18B402 LR027790
HOSE - AIR CONDITIONING
From: GT000001 / To: HT999999 		$38.19 1
18B402 LR105245
HOSE - AIR CONDITIONING
From: JT000001 		$206.75 1
18K459 LR020017
SLEEVE - INSULATING
From: GT000001 		$26.04 1
19A834 LR070473
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / From: GT000001 / To: HT999999 		$429.25 1
19A834 LR079428
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: GT000001 / To: HT999999 		$170.51 1
19A834 LR094351
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Con Refrigerant-HF01234YF / From: JT000001 		$265.28 1
19A834 LR094352
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: JT000001 		$278.57 1
19D594 LR012018
SWITCH - AIR CONDIT.SYSTEM - VACUUM
Pressure Sensor / From: GT000001 		$165.04 1
19D702A LR002653
CAP - VALVE
High Pressure Servicing Connection / From: GT000001 		$28.11 1
19D702B LR002654
CAP
Low Pressure Servicing Connection / From: GT000001 		$20.04 1
19D738A LR010311
BRACKET - A/C PIPE
From: GT000001 		$7.88 1
19D738B LR002655
BRACKET - COOLING HOSE
Triple / From: GT000001 		$1.70 1
19D738C LR002629
BRACKET - A/C PIPE
For Air Conditioning / From: GT000001 		$10.19 1
19N651A LR070475
TUBE AND HOSE-A/C COMPRESSOR OUTLET
2.0L 16V TIVCT T/C 240PS Petrol / Outlet / From: GT000001 		$214.22 1
19N651A LR070476
TUBE AND HOSE-A/C COMPRESSOR OUTLET
2.0L I4 DSL MID DOHC AJ200 / Outlet / From: GT000001 		$233.59 1
19N651B LR061889
TUBE AND HOSE-A/C COMPRESSOR INLET
2.0L 16V TIVCT T/C 240PS Petrol / Inlet / From: GT000001 		$200.59 1
19N651B LR070477
TUBE - COMPRESSOR DELIVERY
2.0L I4 DSL MID DOHC AJ200 / Inlet / From: GT000001 		$233.59 1
