Name: Front Knuckle And Hub (Changsu (China)) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

Front Knuckle And Hub (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Knuckle And Hub (Changsu (China)) ((V) FROMEG000001)

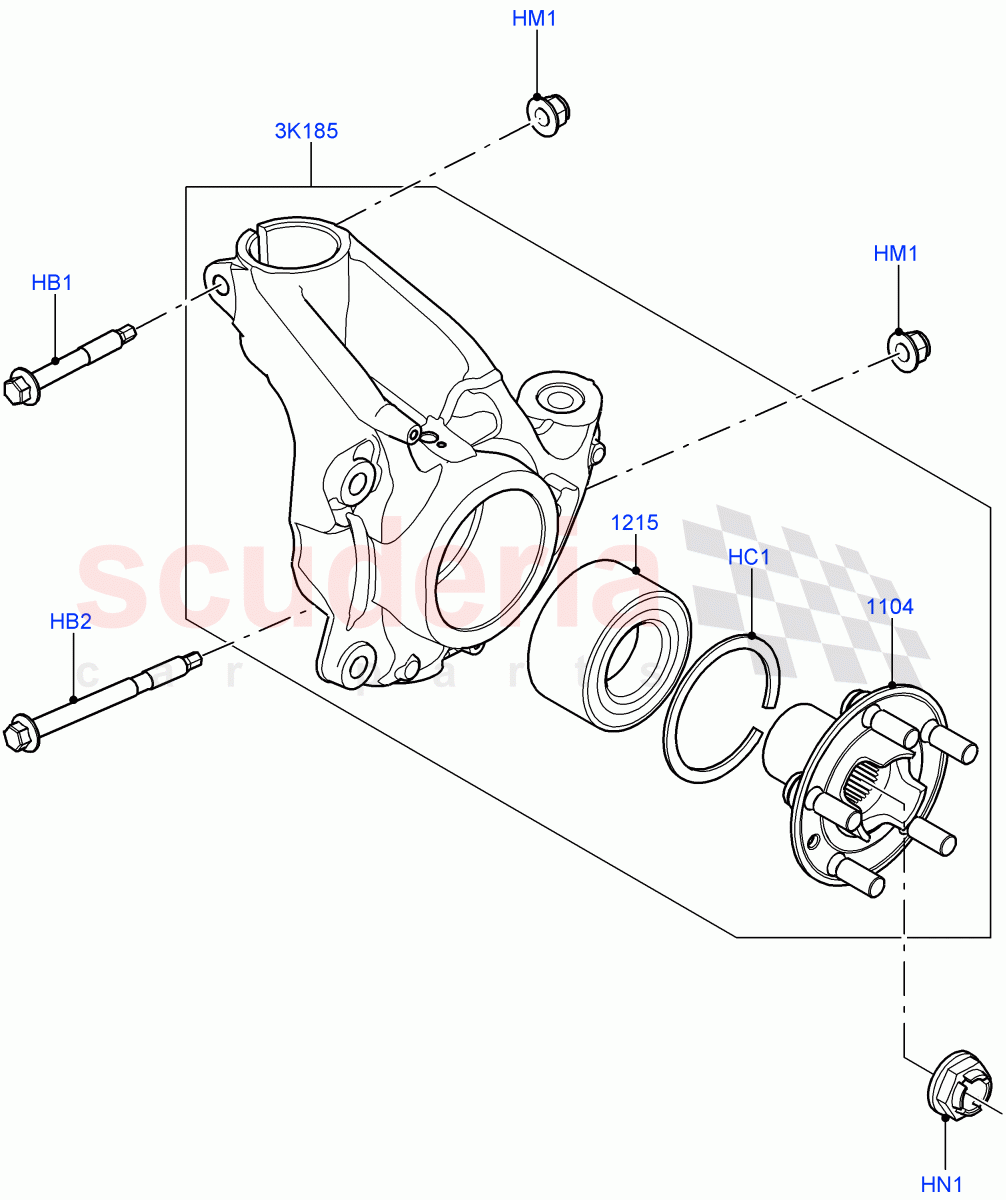

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR096556	BOLT	$4.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024506	BOLT	$5.46	To Order

Photo	Part No	Description	Price (each)	Stock
	RUE000010	CIRCLIP	$8.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	$1.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	$10.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025107	HUB - WHEEL	$250.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122585	BEARING - WHEEL HUB	$119.93	IN STOCK
	LR179001	BEARING - WHEEL HUB	$126.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055289	KNUCKLE - FRONT WHEEL	$571.02	To Order
	LR055290	KNUCKLE - FRONT WHEEL	$571.02	To Order
	LR072483	KNUCKLE - FRONT WHEEL	$2,161.90	To Order

...and 7 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR096556	BOLT	LR096556 BOLT Hexagonal Head, M12 x 90MM / From: EG000001	$4.42	2
HB2	LR024506	BOLT	LR024506 BOLT Hex Head, Lower, M12 x 130MM / From: EG000001	$5.46	2
HC1	RUE000010	CIRCLIP	RUE000010 CIRCLIP	$8.36	1
HM1	FY112056	NUT - HEX. IN STOCK	FY112056 NUT - HEX. With Standard Suspension / Hex Nut Type, M12 / From: EG000001 IN STOCK	$1.94	4
HN1	LR024151	NUT AND WASHER - HEX. IN STOCK	LR024151 NUT AND WASHER - HEX. M24X2.0 / From: EG000001 IN STOCK	$10.19	2
3K185	LR055289	KNUCKLE - FRONT WHEEL	LR055289 KNUCKLE - FRONT WHEEL RH / From: EG000001 / To: FG100152	$571.02	1
3K185	LR055290	KNUCKLE - FRONT WHEEL	LR055290 KNUCKLE - FRONT WHEEL LH / From: EG000001 / To: FG100152	$571.02	1
3K185	LR072483	KNUCKLE - FRONT WHEEL	LR072483 KNUCKLE - FRONT WHEEL RH / From: FG100153 / To: FG109583	$2,161.90	1
3K185	LR072485	KNUCKLE - FRONT WHEEL	LR072485 KNUCKLE - FRONT WHEEL LH / From: FG100153 / To: FG109583	$2,316.30	1
3K185	LR071963	KNUCKLE - FRONT WHEEL	LR071963 KNUCKLE - FRONT WHEEL LH / From: FG109584 / To: GG134105	$735.07	1
3K185	LR072036	KNUCKLE - FRONT WHEEL	LR072036 KNUCKLE - FRONT WHEEL RH / From: FG109584 / To: GG134105	$735.07	1
3K185	LR078179	KNUCKLE - FRONT WHEEL	LR078179 KNUCKLE - FRONT WHEEL LH / From: GG134106 / To: HG162217	$637.07	1
3K185	LR077913	KNUCKLE - FRONT WHEEL	LR077913 KNUCKLE - FRONT WHEEL RH / From: GG134106 / To: HG162217	$637.07	1
3K185	LR109399	KNUCKLE - FRONT WHEEL	LR109399 KNUCKLE - FRONT WHEEL RH / From: HG162218	$735.54	1
3K185	LR109400	KNUCKLE - FRONT WHEEL	LR109400 KNUCKLE - FRONT WHEEL LH / From: HG162218	$723.19	1
1104	LR025107	HUB - WHEEL	LR025107 HUB - WHEEL RH/LH / From: EG000001	$250.53	2
1215	LR122585	BEARING - WHEEL HUB IN STOCK	LR122585 BEARING - WHEEL HUB RH/LH / From: EG000001 / To: FG100153 IN STOCK	$119.93	2
1215	LR179001	BEARING - WHEEL HUB	LR179001 BEARING - WHEEL HUB RH/LH / From: FG100154	$126.23	2

Front Knuckle And Hub (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Front Knuckle And Hub (Changsu (China)) ((V) FROMEG000001)
