Timing Gear (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025016 BOLT $4.93 To Order
Photo Part No Description Price (each) Stock
LR025654 PIN $4.48 To Order
Photo Part No Description Price (each) Stock
LR025653 BOLT $2.72 To Order
Photo Part No Description Price (each) Stock
RYG500150 SCREW $1.61 To Order
Photo Part No Description Price (each) Stock
LR025263 CHAIN - TIMING $95.28 To Order
Photo Part No Description Price (each) Stock
LR025305 WASHER - CAMSHAFT SPROCKET $12.67 To Order
Photo Part No Description Price (each) Stock
LR095137 TENSIONER - TIMING BELT $156.36 To Order
Photo Part No Description Price (each) Stock
LR025264 GEAR $58.54 To Order
Photo Part No Description Price (each) Stock
LR025011 WASHER - CRANKSHAFT DAMPER $14.67 To Order
Photo Part No Description Price (each) Stock
LR033733 SPROCKET - CAMSHAFT $226.08 IN STOCK
Photo Part No Description Price (each) Stock
LR050849 SPROCKET - CAMSHAFT $186.41 To Order
Photo Part No Description Price (each) Stock
LR025632 ARM - TIMING CHAIN TENSIONER $46.10 To Order
LR111078 ARM - TIMING CHAIN TENSIONER $53.05 IN STOCK
Photo Part No Description Price (each) Stock
LR025008 BOLT $2.61 To Order
Photo Part No Description Price (each) Stock
LR025000 GUIDE - TIMING CHAIN $28.68 IN STOCK
Photo Part No Description Price (each) Stock
LR025652 SOLENOID - ENGINE VARIABLE TIMING $139.50 To Order
Photo Part No Description Price (each) Stock
LR024995 SOLENOID - ENGINE VARIABLE TIMING $139.50 To Order
View All

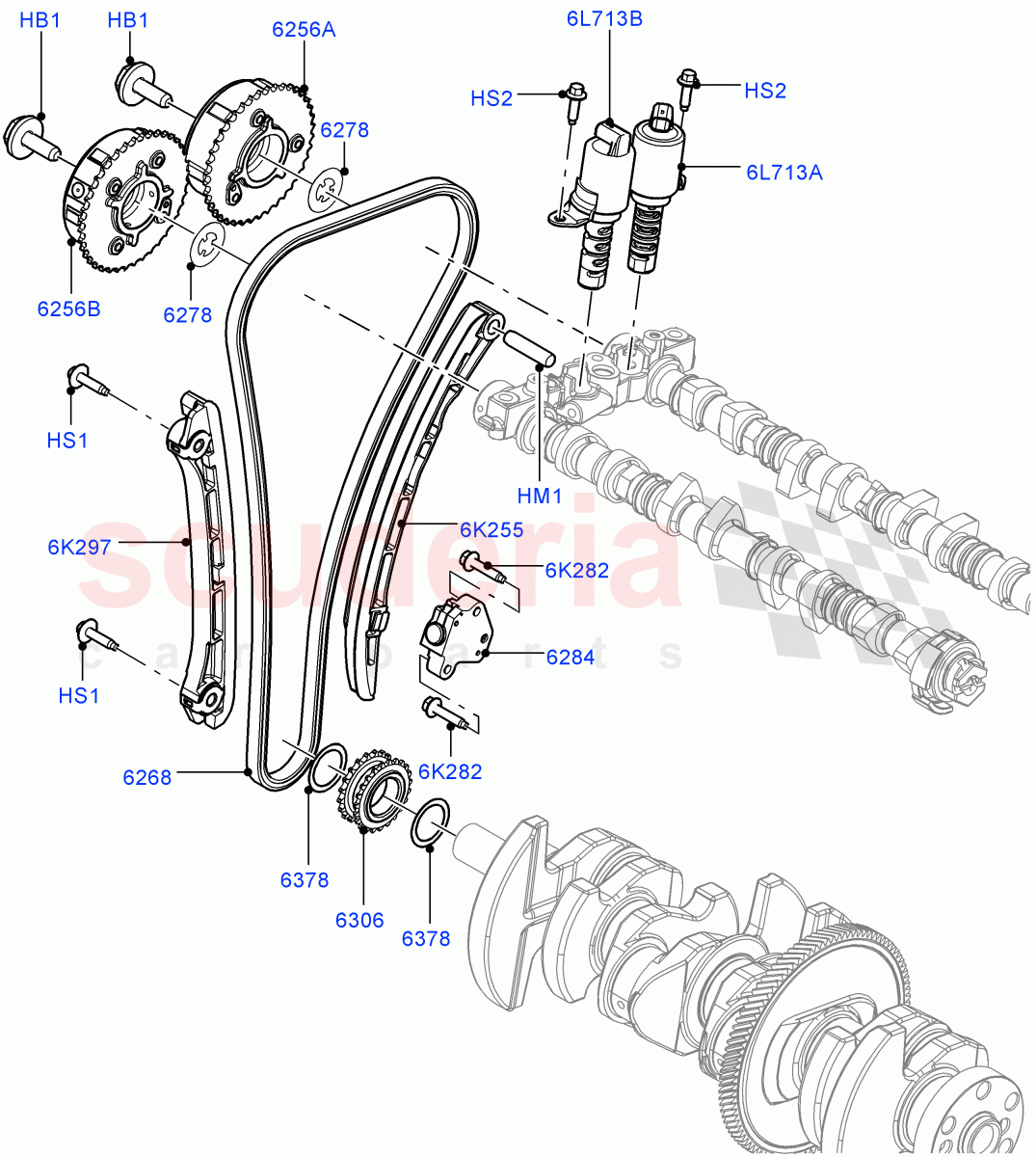

Timing Gear (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR025016
BOLT
Sprocket - Drive / From: EG000001 		$4.93 2
HM1 LR025654
PIN
Pin, Tensioner / From: EG000001 		$4.48 1
HS1 LR025653
BOLT
Chain Guide, M6 X 23MM / From: EG000001 		$2.72 2
HS2 RYG500150
SCREW
M6 x 12MM / From: EG000001 		$1.61 2
6K255 LR025632
ARM - TIMING CHAIN TENSIONER
From: EG000001 / To: HG161787 		$46.10 1
6K255 LR111078
ARM - TIMING CHAIN TENSIONER
From: HG161788
IN STOCK 		$53.05 1
6K282 LR025008
BOLT
M6 X 1.0 X 30, Tensioner / From: EG000001 		$2.61 2
6K297 LR025000
GUIDE - TIMING CHAIN
Main, Timing Chain / From: EG000001
IN STOCK 		$28.68 1
6L713A LR025652
SOLENOID - ENGINE VARIABLE TIMING
Exhaust / From: EG000001 		$139.50 1
6L713B LR024995
SOLENOID - ENGINE VARIABLE TIMING
Intake / From: EG000001 		$139.50 1
6256A LR033733
SPROCKET - CAMSHAFT
Exhaust / From: EG000001
IN STOCK 		$226.08 1
6256B LR050849
SPROCKET - CAMSHAFT
Intake / From: EG000001 		$186.41 1
6268 LR025263
CHAIN - TIMING
Timing Chain / From: EG000001 		$95.28 1
6278 LR025305
WASHER - CAMSHAFT SPROCKET
From: EG000001 		$12.67 2
6284 LR095137
TENSIONER - TIMING BELT
From: EG000001 		$156.36 1
6306 LR025264
GEAR
Use With Washers 6378 / From: EG000001 		$58.54 1
6378 LR025011
WASHER - CRANKSHAFT DAMPER
Crankshaft / From: EG000001 		$14.67 2
