Name: Exhaust System (Front) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

Exhaust System (Front) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Exhaust System (Front) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

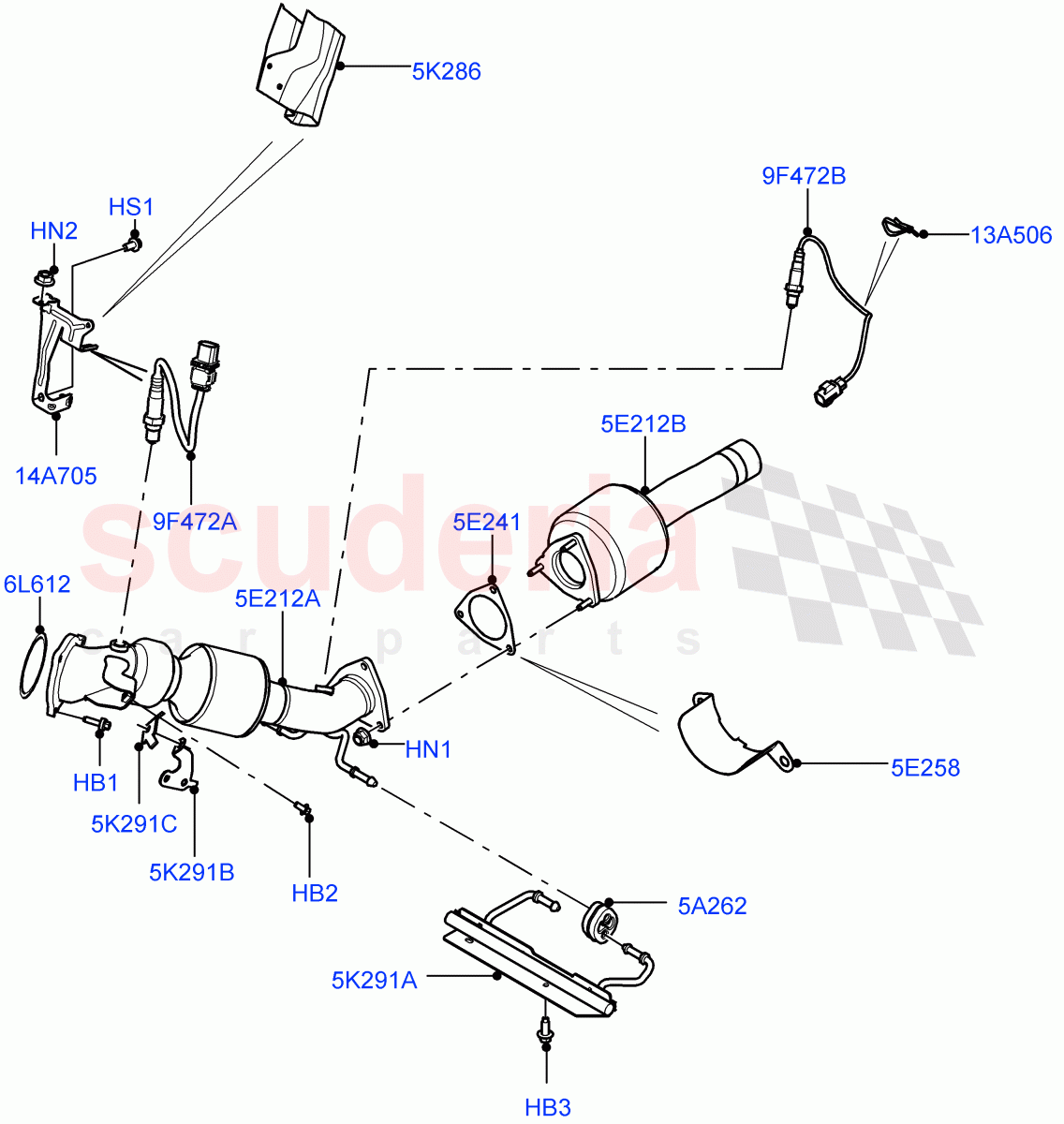

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005738	BOLT	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057202	BOLT AND WASHER - HEX.HEAD	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500230	BOLT - HEX.HEAD	$1.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027177	NUT	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.69	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	$12.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR032162	SHIELD - EXHAUST PIPE	$50.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032384	HEAT SHIELD - SENSOR	$44.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025110	GASKET - EXHAUST PIPE	$16.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR043993	BRACKET - ENGINE HARNESS	$14.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067412	CATALYTIC CONVERTER	$1,282.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068416	CATALYTIC CONVERTER	$702.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024227	BRACKET - EXHAUST PIPE MOUNTING	$39.45	To Order
	LR077874	BRACKET - EXHAUST PIPE MOUNTING	$25.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049879	BRACKET - EXHAUST PIPE MOUNTING	$64.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028996	BRACKET - EXHAUST PIPE MOUNTING	$9.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049882	SENSOR - EXHAUST GAS - OXYGEN	$328.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049883	SENSOR - EXHAUST GAS - OXYGEN	$203.33	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR005738	BOLT	LR005738 BOLT M8 x 31MM / From: EG000001	$2.64	3
HB2	LR057202	BOLT AND WASHER - HEX.HEAD	LR057202 BOLT AND WASHER - HEX.HEAD M8 x 40MM / From: EG000001	$2.43	2
HB3	RYG500230	BOLT - HEX.HEAD IN STOCK	RYG500230 BOLT - HEX.HEAD Hexagonal Head, M8 X 20MM / From: EG000001 IN STOCK	$1.42	2
HN1	LR027177	NUT	LR027177 NUT M8 / From: EG000001	$0.81	3
HN2	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: EG000001 IN STOCK	$1.02	1
HS1	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM / From: EG000001	$0.78	1
5A262	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front / From: EG000001	$11.69	2
5E212A	LR067412	CATALYTIC CONVERTER	LR067412 CATALYTIC CONVERTER Catalyst Assy, Primary / From: EG000001	$1,282.75	1
5E212B	LR068416	CATALYTIC CONVERTER	LR068416 CATALYTIC CONVERTER Catalyst Assy, Secondary / From: EG000001	$702.04	1
5E241	WCM500120	GASKET - EXHAUST PIPE IN STOCK	WCM500120 GASKET - EXHAUST PIPE Catalyst Assy, Rear / From: EG000001 IN STOCK	$12.52	1
5E258	LR032162	SHIELD - EXHAUST PIPE	LR032162 SHIELD - EXHAUST PIPE Catalyst Assy, Primary / From: EG000001	$50.47	1
5K286	LR032384	HEAT SHIELD - SENSOR IN STOCK	LR032384 HEAT SHIELD - SENSOR Oxygen Sensor / From: EG000001 IN STOCK	$44.34	1
5K291A	LR024227	BRACKET - EXHAUST PIPE MOUNTING	LR024227 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: EG000001 / To: GG132841	$39.45	1
5K291A	LR077874	BRACKET - EXHAUST PIPE MOUNTING	LR077874 BRACKET - EXHAUST PIPE MOUNTING Double, Front / From: GG132842	$25.83	1
5K291B	LR049879	BRACKET - EXHAUST PIPE MOUNTING	LR049879 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front / From: EG000001	$64.07	1
5K291C	LR028996	BRACKET - EXHAUST PIPE MOUNTING	LR028996 BRACKET - EXHAUST PIPE MOUNTING Catalyst Assy, Front / From: EG000001	$9.72	1
6L612	LR025110	GASKET - EXHAUST PIPE IN STOCK	LR025110 GASKET - EXHAUST PIPE Catalyst Assy, Front / From: EG000001 IN STOCK	$16.76	1
9F472A	LR049882	SENSOR - EXHAUST GAS - OXYGEN	LR049882 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Front / From: EG000001	$328.93	1
9F472B	LR049883	SENSOR - EXHAUST GAS - OXYGEN	LR049883 SENSOR - EXHAUST GAS - OXYGEN Exhaust Gas Oxygen, Rear / From: EG000001	$203.33	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: EG000001 IN STOCK	$0.78	1
14A705	LR043993	BRACKET - ENGINE HARNESS	LR043993 BRACKET - ENGINE HARNESS Oxygen Sensor / From: EG000001	$14.93	1

Exhaust System (Front) (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Exhaust System (Front) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
