Name: Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999)

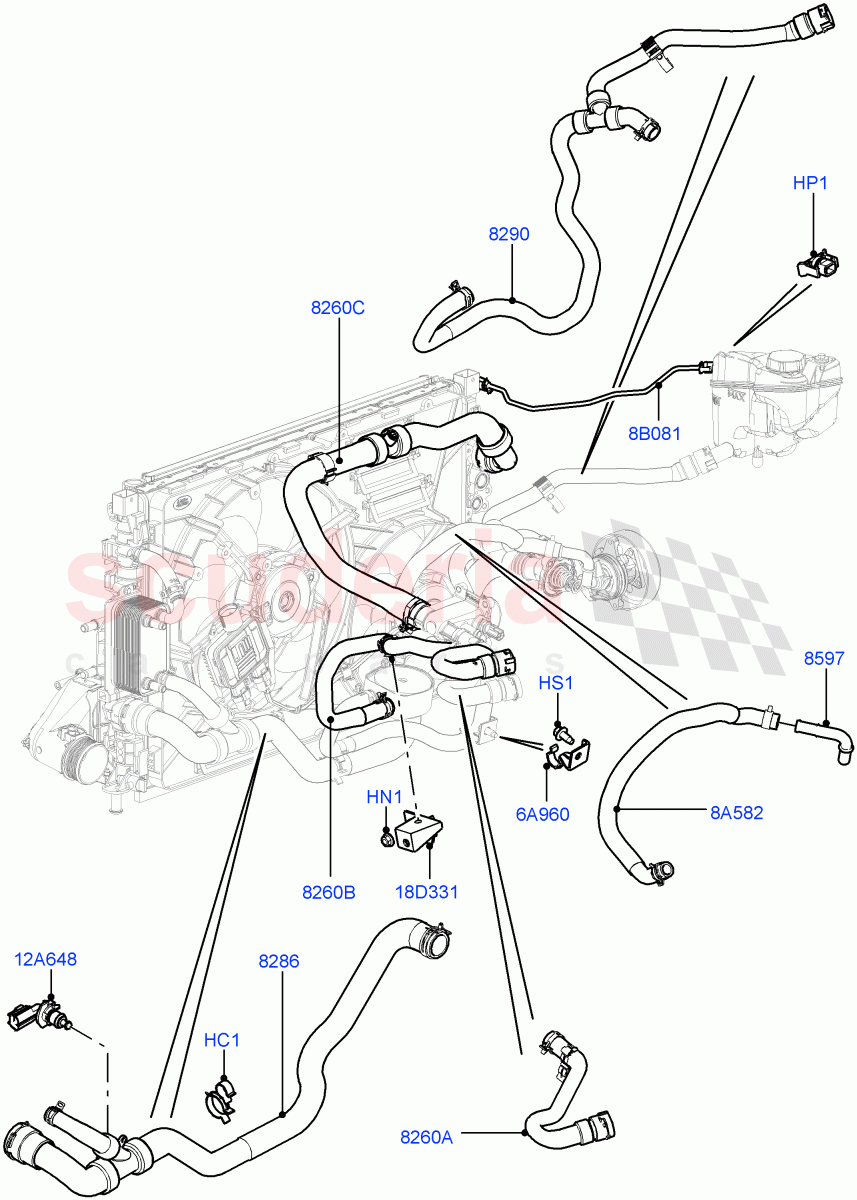

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024297	CLIP - HOSE	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024196	PLUG - EXPANSION TANK	$8.75	To Order
	LR044290	PLUG - EXPANSION TANK	$8.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4556037	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024238	HOSE - RADIATOR	$97.99	To Order
	LR024236	HOSE - RADIATOR	$140.13	To Order
	LR040733	HOSE - RADIATOR	$100.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024241	HOSE - COOLING SYSTEM	$47.66	To Order
	LR035435	HOSE - COOLING SYSTEM	$79.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025015	CONNECTION - WATER	$53.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024255	BRACKET - COOLING HOSE	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024233	HOSE - COOLING SYSTEM	$21.29	To Order
	LR038125	HOSE - COOLING SYSTEM	$22.53	To Order
	LR044291	HOSE - COOLING SYSTEM	$24.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024630	HOSE - OUTLET	$45.04	To Order
	LR054981	HOSE - OUTLET	$56.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094509	HOSE - RADIATOR	$69.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024968	HOSE - COOLING SYSTEM	$27.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024251	HOSE - DEGAS COOLING SYSTEM	$15.72	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$59.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024258	BRACKET - HEATER HOSE	$2.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR024297	CLIP - HOSE	LR024297 CLIP - HOSE Double	$1.63	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 IN STOCK	$0.60	1
HP1	LR024196	PLUG - EXPANSION TANK	LR024196 PLUG - EXPANSION TANK Expansion Tank / To: DH748086	$8.75	1
HP1	LR044290	PLUG - EXPANSION TANK	LR044290 PLUG - EXPANSION TANK Expansion Tank / From: DH748087	$8.28	1
HS1	4556037	SCREW	4556037 SCREW Hexagonal Head, M10 x 16MM	$0.76	1
6A960	LR024255	BRACKET - COOLING HOSE	LR024255 BRACKET - COOLING HOSE Oil Cooler Hose, Outlet	$2.29	1
8A582	LR024968	HOSE - COOLING SYSTEM	LR024968 HOSE - COOLING SYSTEM	$27.40	1
8B081	LR024251	HOSE - DEGAS COOLING SYSTEM	LR024251 HOSE - DEGAS COOLING SYSTEM Radiator Degas Line, Top Of Radiator To Top Of Supply Tank	$15.72	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE (+)"CDN/MEX/USA"	$59.86	1
18D331	LR024258	BRACKET - HEATER HOSE	LR024258 BRACKET - HEATER HOSE Inlet, Oil Cooler Hose	$2.60	1
8260A	LR024233	HOSE - COOLING SYSTEM	LR024233 HOSE - COOLING SYSTEM Heater, Inlet / To: CH665915	$21.29	1
8260A	LR038125	HOSE - COOLING SYSTEM	LR038125 HOSE - COOLING SYSTEM Heater, Inlet / From: CH665916 / To: DH714486	$22.53	1
8260A	LR044291	HOSE - COOLING SYSTEM	LR044291 HOSE - COOLING SYSTEM Heater, Inlet / From: DH714487	$24.36	1
8260B	LR024630	HOSE - OUTLET	LR024630 HOSE - OUTLET Oil Cooler Inlet Pipe / To: EH869525	$45.04	1
8260B	LR054981	HOSE - OUTLET	LR054981 HOSE - OUTLET Oil Cooler Inlet Pipe / From: EH869526	$56.03	1
8260C	LR094509	HOSE - RADIATOR	LR094509 HOSE - RADIATOR Radiator Hose, Top	$69.65	1
8286	LR024238	HOSE - RADIATOR	LR024238 HOSE - RADIATOR ULEV II Requirements / Bottom, Includes Sensor, Radiator Hose / To: DH741651	$97.99	1
8286	LR024236	HOSE - RADIATOR	LR024236 HOSE - RADIATOR Stage V European Emissions / Bottom, Less Sensor, Radiator Hose	$140.13	1
8286	LR040733	HOSE - RADIATOR	LR040733 HOSE - RADIATOR ULEV II Requirements / Bottom, Includes Sensor, Radiator Hose / From: DH741652	$100.22	1
8290	LR024241	HOSE - COOLING SYSTEM	LR024241 HOSE - COOLING SYSTEM Oil Cooler Outlet Pipe / To: CH641676	$47.66	1
8290	LR035435	HOSE - COOLING SYSTEM	LR035435 HOSE - COOLING SYSTEM Oil Cooler Outlet Pipe / From: CH641677	$79.39	1
8597	LR025015	CONNECTION - WATER	LR025015 CONNECTION - WATER Outlet, Water Pump	$53.29	1

Cooling System Pipes And Hoses (2.0L 16V Tivct T/C 240Ps Petrol, Halewood (Uk)) ((V) Todh999999)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cooling System Pipes And Hoses (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) ((V) TODH999999)
