Name: Pulleys And Drive Belts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
Rating: 4.6 (1 reviews)

Pulleys And Drive Belts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Pulleys And Drive Belts (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

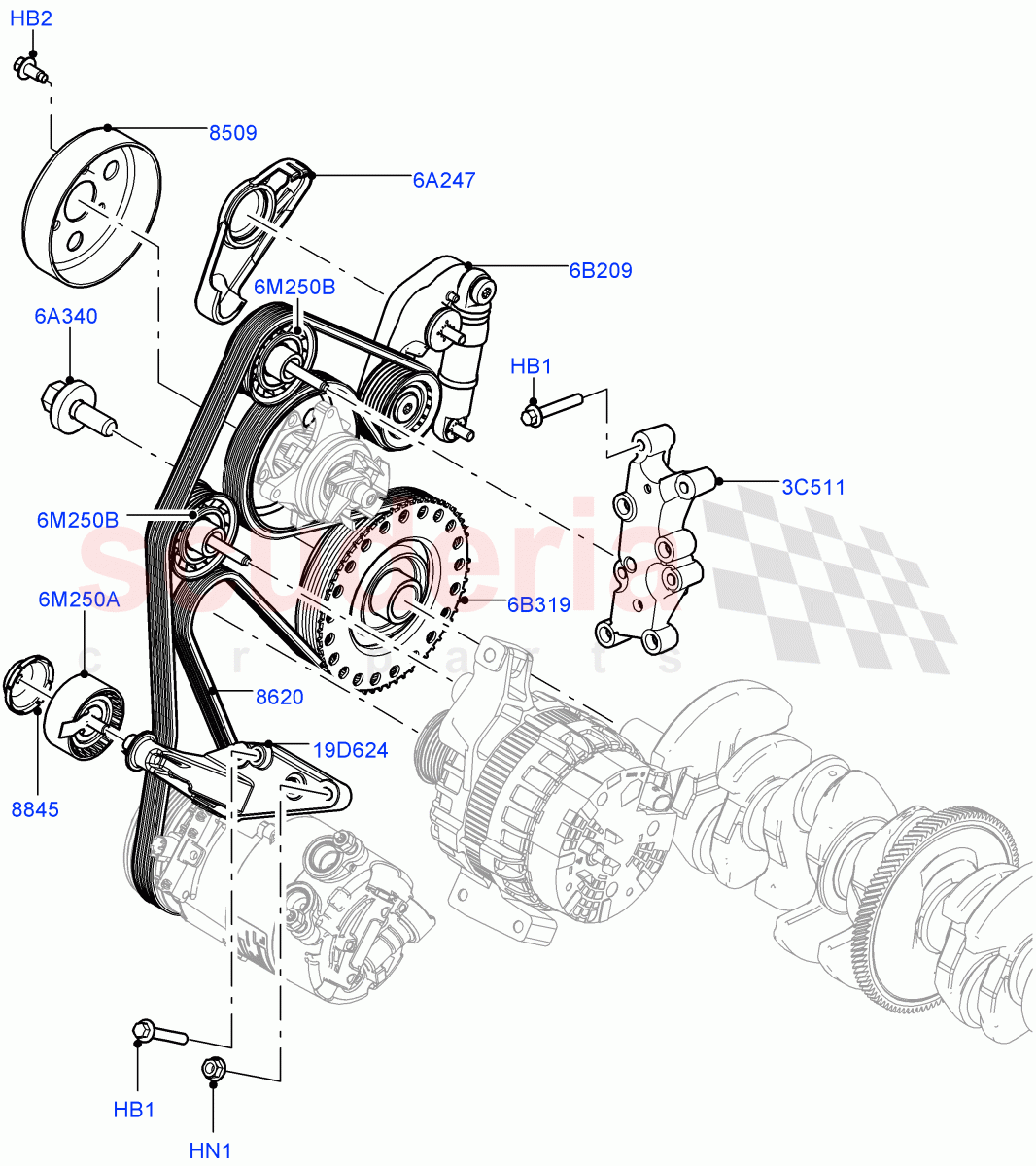

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.96	To Order

Photo	Part No	Description	Price (each)	Stock
	1310106	BOLT - HEX.HEAD	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025020	PULLEY - WATER PUMP	$31.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066153	BELT - ACCESSORY DRIVE	$87.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056659	BRACKET - IDLER PULLEY	$114.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028295	COVER - ACCESSORY DRIVE	$59.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025009	BOLT	$9.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034128	PULLEY - TENSION	$188.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068885	PULLEY - CRANKSHAFT	$335.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028882	BRACKET - COMPRESSOR	$366.00	To Order
	LR079504	BRACKET - COMPRESSOR	$51.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028879	IDLER - ACCESSORY DRIVE	$80.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028878	IDLER - ACCESSORY DRIVE	$43.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FB108106	BOLT	FB108106 BOLT Bracket, Hexagonal Head, M8 x 50MM / From: EG000001	$10.96	5
HB2	1310106	BOLT - HEX.HEAD	1310106 BOLT - HEX.HEAD M8 X 14MM / From: EG000001	$3.08	3
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: EG000001	$1.97	1
3C511	LR056659	BRACKET - IDLER PULLEY	LR056659 BRACKET - IDLER PULLEY From: EG000001	$114.56	1
6A247	LR028295	COVER - ACCESSORY DRIVE	LR028295 COVER - ACCESSORY DRIVE Tensioner / From: EG000001	$59.33	1
6A340	LR025009	BOLT IN STOCK	LR025009 BOLT Pulley And Damper Assembly / From: EG000001 IN STOCK	$9.76	1
6B209	LR034128	PULLEY - TENSION	LR034128 PULLEY - TENSION From: EG000001	$188.37	1
6B319	LR068885	PULLEY - CRANKSHAFT	LR068885 PULLEY - CRANKSHAFT From: EG000001	$335.93	1
6M250A	LR028879	IDLER - ACCESSORY DRIVE	LR028879 IDLER - ACCESSORY DRIVE Lower / From: EG000001	$80.39	1
6M250B	LR028878	IDLER - ACCESSORY DRIVE	LR028878 IDLER - ACCESSORY DRIVE Upper / From: EG000001	$43.36	2
19D624	LR028882	BRACKET - COMPRESSOR	LR028882 BRACKET - COMPRESSOR idler, Lower / From: EG000001 / To: FG119707	$366.00	1
19D624	LR079504	BRACKET - COMPRESSOR	LR079504 BRACKET - COMPRESSOR idler, Lower / From: FG119708	$51.94	1
8509	LR025020	PULLEY - WATER PUMP	LR025020 PULLEY - WATER PUMP From: EG000001	$31.56	1
8620	LR066153	BELT - ACCESSORY DRIVE IN STOCK	LR066153 BELT - ACCESSORY DRIVE From: EG000001 IN STOCK	$87.80	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler / From: EG000001	$3.27	1

Pulleys And Drive Belts (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]
