Transmission Cooling Systems (2.2L Cr Di 16V Diesel, 6 Speed Auto Awf21 Awd)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Transmission Cooling Systems (2.2L CR DI 16V Diesel, 6 Speed Auto AWF21 AWD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003125 RING - SEALING $5.67 To Order
Photo Part No Description Price (each) Stock
LR001101 SCREW $1.10 To Order
Photo Part No Description Price (each) Stock
RYG500630 SCREW AND WASHER $0.66 To Order
Photo Part No Description Price (each) Stock
LR032860 OIL COOLER $32.69 IN STOCK
LR032860 OIL COOLER $32.69 IN STOCK
Photo Part No Description Price (each) Stock
LR032862 HOSE - OIL COOLER $32.69 To Order
LR032862 HOSE - OIL COOLER $32.69 To Order
Photo Part No Description Price (each) Stock
LR003132 HOSE - OIL COOLER $5.07 IN STOCK
Photo Part No Description Price (each) Stock
LR002916 OIL COOLER $213.19 To Order
View All

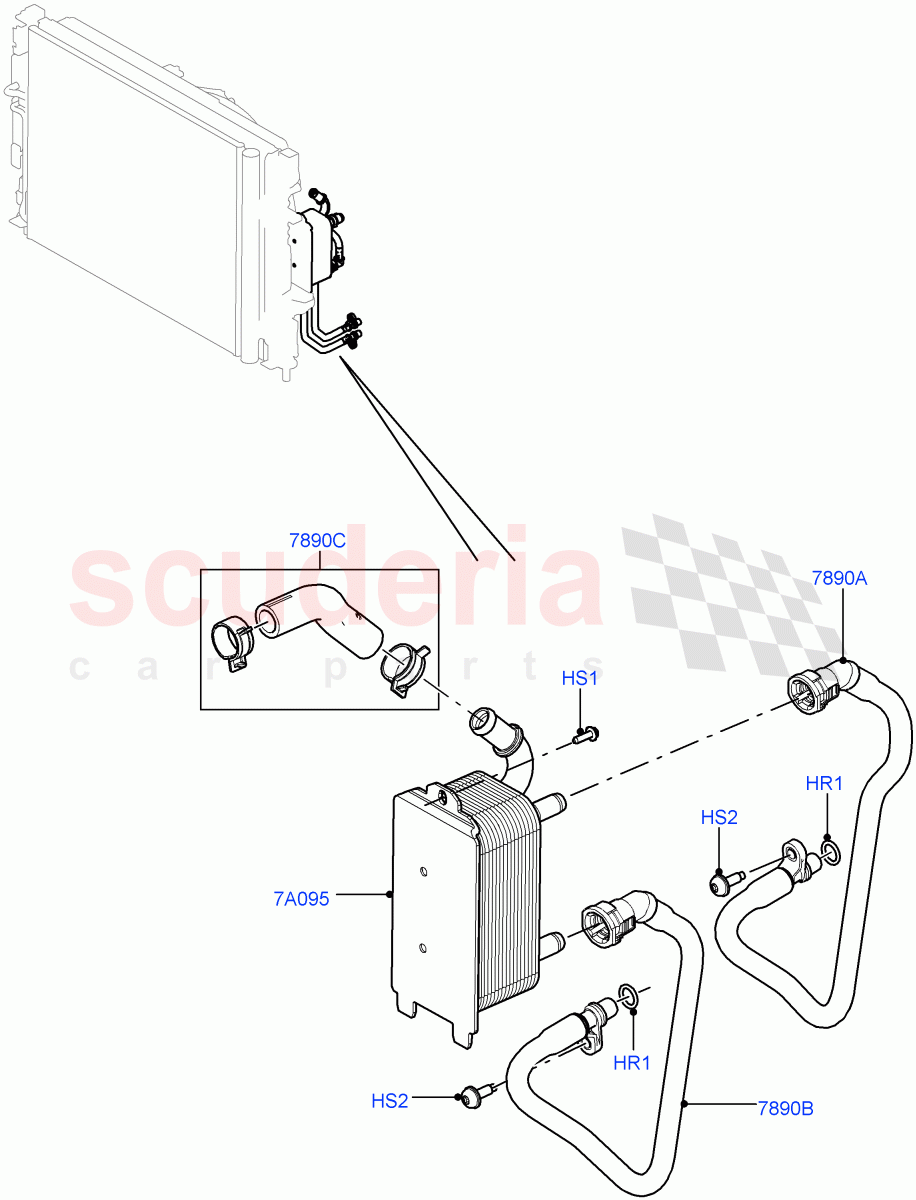

Transmission Cooling Systems (2.2L CR DI 16V Diesel, 6 Speed Auto AWF21 AWD) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR003125
RING - SEALING
11.3 x 2.5MM, O-Ring 		$5.67 2
HS1 LR001101
SCREW
6X20, Hexagonal Head 		$1.10 1
HS2 RYG500630
SCREW AND WASHER
Bolt And Washer, M6X16, Torx 		$0.66 2
7A095 LR002916
OIL COOLER 		$213.19 1
7890A LR032860
OIL COOLER
Cooler, Outlet / To: CH629953
IN STOCK 		$32.69 1
7890A LR032860
OIL COOLER
Cooler, Outlet / From: CH629954
IN STOCK 		$32.69 1
7890B LR032862
HOSE - OIL COOLER
Cooler, Inlet / To: CH631761 		$32.69 1
7890B LR032862
HOSE - OIL COOLER
Cooler, Inlet / From: CH631762 		$32.69 1
7890C LR003132
HOSE - OIL COOLER
Radiator To Cooler
IN STOCK 		$5.07 1
