Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Steering Gear (LHD) (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026277 BOLT $0.89 To Order
Photo Part No Description Price (each) Stock
LR002577 BOLT $3.46 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR026275 NUT - FLANGED $2.29 To Order
Photo Part No Description Price (each) Stock
LR026267 JOINT - BALL $130.87 To Order
LR027570 JOINT - BALL $130.87 To Order
Photo Part No Description Price (each) Stock
LR026273 KIT - CONNECTING ROD BOOT $65.24 To Order
Photo Part No Description Price (each) Stock
LR080310 GEAR - STEERING $3,509.41 To Order
Photo Part No Description Price (each) Stock
LR090888 CLAMP - BOOT $4.82 To Order
Photo Part No Description Price (each) Stock
LR026271 ROD - SPINDLE CONNECTING $125.33 To Order
LR097993 ROD - SPINDLE CONNECTING $129.02 To Order
Photo Part No Description Price (each) Stock
LR032717 NUT - ADJUSTING $6.17 To Order
LR097994 NUT - ADJUSTING $6.20 To Order
Photo Part No Description Price (each) Stock
LR047512 WIRING - POWER STEERING $175.26 To Order
LR096969 WIRING - POWER STEERING $91.59 To Order
LR086529 WIRING - POWER STEERING $99.23 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026262 SHIELD - STEERING GEAR $42.44 To Order
Photo Part No Description Price (each) Stock
LR088613 SHIELD - STEERING GEAR $50.09 To Order
View All

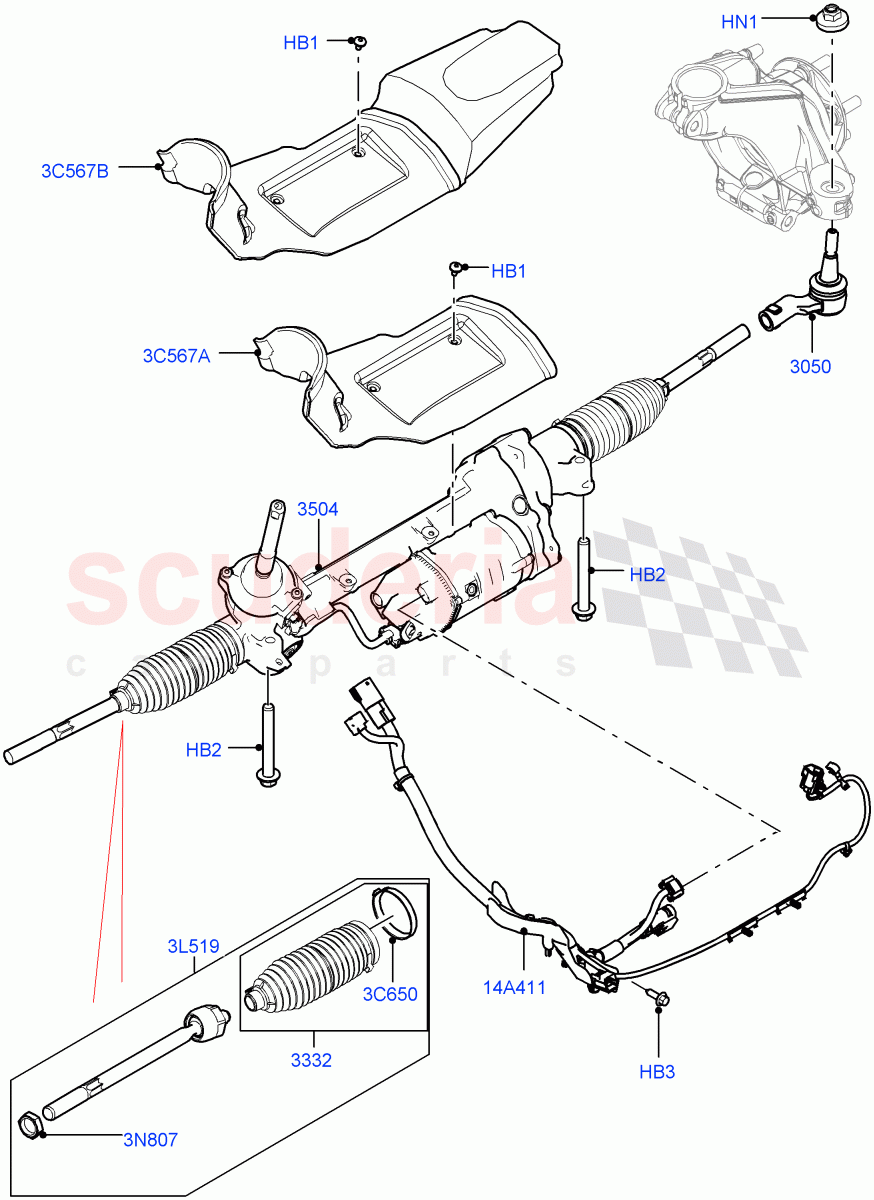

Steering Gear (LHD) (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR026277
BOLT
M6 x 12MM, Torx / From: GT000001 		$0.89 3
HB2 LR002577
BOLT
Hex Head, M14 X 105MM / From: GT000001 		$3.46 2
HB3 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: GT000001
IN STOCK 		$0.68 1
HN1 LR026275
NUT - FLANGED
M14, RH/LH / From: GT000001 		$2.29 2
3C567A LR026262
SHIELD - STEERING GEAR
2.0L 16V TIVCT T/C 240PS Petrol / Heat Shield / From: GT000001 		$42.44 1
3C567B LR088613
SHIELD - STEERING GEAR
2.0L I4 Mid DOHC AJ200 Petrol / Heat Shield / From: HT000001 		$50.09 1
3C650 LR090888
CLAMP - BOOT
RH/LH / From: GT000001 		$4.82 1
3L519 LR026271
ROD - SPINDLE CONNECTING
RH/LH / From: GT000001 / To: HT999999 		$125.33 2
3L519 LR097993
ROD - SPINDLE CONNECTING
RH/LH / From: JT000001 		$129.02 2
3N807 LR032717
NUT - ADJUSTING
Locking, M18 x 1.5, RH/LH, Torx / From: GT000001 / To: HT999999 		$6.17 2
3N807 LR097994
NUT - ADJUSTING
Locking, RH/LH / From: JT000001 		$6.20 2
14A411 LR047512
WIRING - POWER STEERING
2.0L 16V TIVCT T/C 240PS Petrol, Proconve L6 Emissions / From: GT000001 		$175.26 1
14A411 LR096969
WIRING - POWER STEERING
2.0L I4 Mid DOHC AJ200 Petrol / From: JT000001 		$91.59 1
14A411 LR086529
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200 / From: HT000001 / To: HT999999 		$99.23 1
14A411 LR096965
WIRING - POWER STEERING
2.0L I4 DSL MID DOHC AJ200 / From: JT000001 		$104.85 1
3050 LR026267
JOINT - BALL
RH / From: GT000001 		$130.87 1
3050 LR027570
JOINT - BALL
LH / From: GT000001 		$130.87 1
3332 LR026273
KIT - CONNECTING ROD BOOT
RH/LH, With Clamps / From: GT000001 		$65.24 1
3504 LR080310
GEAR - STEERING
From: GT000001 		$3,509.41 1
