Rear Cross Member & Stabilizer Bar (Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Cross Member & Stabilizer Bar (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR021644 BOLT $12.29 To Order
Photo Part No Description Price (each) Stock
LR023457 BOLT $6.14 To Order
Photo Part No Description Price (each) Stock
LR001188 BOLT $4.25 To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT $0.63 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.26 IN STOCK
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
FS110306 BOLT - HEX.HEAD $2.24 To Order
Photo Part No Description Price (each) Stock
LR000095 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
PYG500050 SCREW $1.07 IN STOCK
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $3.04 To Order
Photo Part No Description Price (each) Stock
LR005648 INSULATOR - STABILIZER BAR $8.17 To Order
LR034392 INSULATOR - STABILIZER BAR $27.63 IN STOCK
LR034392 INSULATOR - STABILIZER BAR $27.63 IN STOCK
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025941 STIFFENER - XMEMBER $44.27 To Order
Photo Part No Description Price (each) Stock
LR049444 DAMPER - VIBRATION $193.29 To Order
LR077467 DAMPER - VIBRATION $187.11 To Order
LR049444 DAMPER - VIBRATION $193.29 To Order
Photo Part No Description Price (each) Stock
LR005647 INSULATOR - CROSS MEMBER $66.72 To Order
Photo Part No Description Price (each) Stock
LR005646 INSULATOR - CROSS MEMBER $65.08 To Order
Photo Part No Description Price (each) Stock
LR024277 BAR - REAR STABILIZER $184.01 To Order
LR031964 BAR - REAR STABILIZER $183.15 To Order
LR034326 BAR - REAR STABILIZER $200.07 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR005746 CLAMP - RUBBER BUSH $5.94 To Order
Photo Part No Description Price (each) Stock
LR028449 CROSS MEMBER - REAR $1,345.83 To Order
LR028229 CROSSMEMBER - REAR $1,439.39 To Order
LR048532 CROSS MEMBER - REAR $1,867.55 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR002876 LINK - STABILIZER BAR $58.79 To Order
Photo Part No Description Price (each) Stock
LR001118 INSULATOR - CROSS MEMBER $76.63 To Order
Photo Part No Description Price (each) Stock
LR001119 INSULATOR - CROSS MEMBER $76.19 To Order
Photo Part No Description Price (each) Stock
LR092323 HEAT SHIELD - DIFFERENTIAL $20.46 To Order
Photo Part No Description Price (each) Stock
LR092324 HEAT SHIELD - DIFFERENTIAL $20.08 To Order
Photo Part No Description Price (each) Stock
LR092326 HEAT SHIELD - DIFFERENTIAL $20.08 To Order
View All

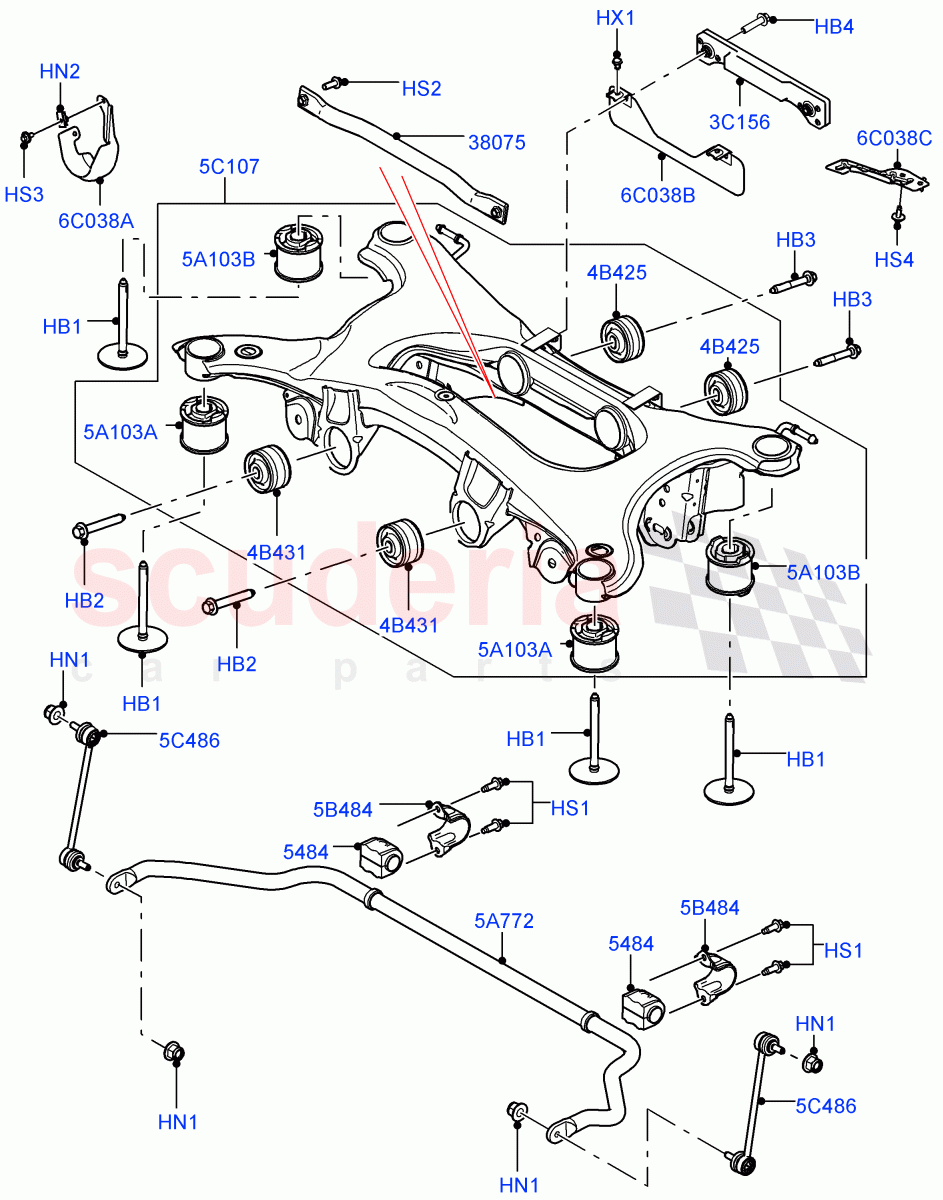

Rear Cross Member & Stabilizer Bar (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR021644
BOLT
Bolt And Washer, Hex Head, M14 X 148MM 		$12.29 4
HB2 LR023457
BOLT
9 Speed Auto AWD / Hex Head, M14 X 90 		$6.14 2
HB3 LR001188
BOLT
9 Speed Auto AWD / Hex Head, Hexagonal Head, M12 x 80MM 		$4.25 2
HB4 FB108076
BOLT
9 Speed Auto AWD / M8 X 35MM / From: EH000001 		$0.63 2
HN1 FY110056
NUT
M10
IN STOCK 		$4.26 4
HN2 LR000053
NUT - FLANGED
2.0L I4 High DOHC AJ200 Petrol / M6 / From: JH000001
IN STOCK 		$1.63 2
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM 		$0.61 4
HS2 FS110306
BOLT - HEX.HEAD
Hexagonal Head, M10 X 30MM 		$2.24 2
HS3 LR000095
SCREW AND WASHER
2.0L I4 High DOHC AJ200 Petrol / M6 X 16 HEX / From: JH000001 		$0.61 2
HS4 PYG500050
SCREW
2.0L I4 High DOHC AJ200 Petrol / M8 X 20MM / From: JH000001
IN STOCK 		$1.07 2
HX1 LR071767
RIVET - PLASTIC
2.0L I4 Mid DOHC AJ200 Petrol, All Wheel Drive / 7.8-9.1 x 4.5-10.5 / From: JH000001 		$3.04 2
3C156 LR049444
DAMPER - VIBRATION
9 Speed Auto AWD / Crossmember / From: EH000001 / To: FH999999 		$193.29 1
3C156 LR077467
DAMPER - VIBRATION
2.0L I4 DSL HIGH DOHC AJ200 / Crossmember / From: GH000001 		$187.11 1
3C156 LR049444
DAMPER - VIBRATION
2.0L 16V TIVCT T/C 240PS Petrol, 9 Speed Auto AWD / Crossmember / From: GH000001 		$193.29 1
4B425 LR005647
INSULATOR - CROSS MEMBER
9 Speed Auto AWD / Differential, Rear 		$66.72 2
4B431 LR005646
INSULATOR - CROSS MEMBER
9 Speed Auto AWD / Differential, Front 		$65.08 2
5A103A LR001118
INSULATOR - CROSS MEMBER
Frame To Body, Front 		$76.63 2
5A103B LR001119
INSULATOR - CROSS MEMBER
Frame To Body, Rear 		$76.19 2
5A772 LR024277
BAR - REAR STABILIZER
2.0L 16V TIVCT T/C 240PS Petrol / To: CH631089 		$184.01 1
5A772 LR031964
BAR - REAR STABILIZER
3 Door, Stabilizer Bar Rear - Class C / From: DH000001 		$183.15 1
5A772 LR034326
BAR - REAR STABILIZER
2.0L 16V TIVCT T/C Gen2 Petrol / From: CH631090 / To: CH999999 		$200.07 1
5A772 LR034326
BAR - REAR STABILIZER
2 Door Convertible, Front Spring Load Class-F / From: GH000001 		$200.07 1
5A772 LR034326
BAR - REAR STABILIZER
3 Door, Stabilizer Bar Rear - Class A / From: DH000001 		$200.07 1
5A772 LR028266
BAR - REAR STABILIZER
2 Door Convertible, Front Spring Load Class-G / From: GH000001 		$160.62 1
5A772 LR028266
BAR - REAR STABILIZER
3 Door, Stabilizer Bar Rear - Class B / From: DH000001 		$160.62 1
5A772 LR028266
BAR - REAR STABILIZER
2.2L CR DI 16V Diesel / To: CH999999 		$160.62 1
5B484 LR005746
CLAMP - RUBBER BUSH
Stabilizer Bar 		$5.94 2
5C107 LR028449
CROSS MEMBER - REAR
6 Speed Auto AWF21 AWD / To: DH999999 		$1,345.83 1
5C107 LR028229
CROSSMEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / To: DH999999 		$1,439.39 1
5C107 LR048532
CROSS MEMBER - REAR
9 Speed Auto AWD / From: EH000001 / To: FH999999 		$1,867.55 1
5C107 LR051506
CROSSMEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: EH000001 / To: FH999999 		$1,345.69 1
5C107 LR068155
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: GH000001 / To: HH999999 		$1,787.10 1
5C107 LR072077
CROSS MEMBER - REAR
6 Speed Manual Trans M66 - AWD / From: GH000001 / To: HH999999 		$2,035.93 1
5C107 LR096550
CROSS MEMBER - REAR
6 Speed Manual Trans M66 - AWD / From: JH000001 		$2,224.70 1
5C107 LR096549
CROSS MEMBER - REAR
6 Speed Manual Trans-JLR M66 2WD / From: JH000001 		$2,224.70 1
5C486 LR002876
LINK - STABILIZER BAR 		$58.79 2
6C038A LR092323
HEAT SHIELD - DIFFERENTIAL
2.0L I4 High DOHC AJ200 Petrol / Crossmember, Front / From: JH000001 		$20.46 1
6C038B LR092324
HEAT SHIELD - DIFFERENTIAL
2.0L I4 Mid DOHC AJ200 Petrol, All Wheel Drive / Crossmember, Rear, Upper / From: JH000001 		$20.08 1
6C038C LR092326
HEAT SHIELD - DIFFERENTIAL
2.0L I4 High DOHC AJ200 Petrol / Crossmember, Lower, Rear / From: JH000001 		$20.08 1
5484 LR005648
INSULATOR - STABILIZER BAR
2.0L 16V TIVCT T/C 240PS Petrol / Stabilizer Bar / To: CH631089 		$8.17 2
5484 LR034392
INSULATOR - STABILIZER BAR
2.0L 16V TIVCT T/C Gen2 Petrol / Stabilizer Bar / From: CH631090 / To: CH999999
IN STOCK 		$27.63 2
5484 LR034392
INSULATOR - STABILIZER BAR
5 Door, Stabilizer Bar Rear - Class A / Stabilizer Bar / From: DH000001
IN STOCK 		$27.63 2
5484 LR034392
INSULATOR - STABILIZER BAR
2 Door Convertible, Front Spring Load Class-F / Stabilizer Bar / From: GH000001
IN STOCK 		$27.63 2
5484 LR113771
INSULATOR - STABILIZER BAR
5 Door, Stabilizer Bar Rear - Class B / In Case Of Availability Problems Please Use LR031310, Stabilizer Bar / From: DH000001 		$56.04 2
5484 LR113771
INSULATOR - STABILIZER BAR
2 Door Convertible, Front Spring Load Class-G / In Case Of Availability Problems Please Use LR031310, Stabilizer Bar / From: GH000001 		$56.04 2
5484 LR113771
INSULATOR - STABILIZER BAR
2.2L CR DI 16V Diesel / In Case Of Availability Problems Please Use LR031310, Stabilizer Bar / To: CH999999 		$56.04 2
38075 LR025941
STIFFENER - XMEMBER
Crossmember / To: GH125983 		$44.27 1
