Manual Transmission External Cmpnts (6 Speed Manual Trans M66 - Awd, Halewood (Uk), 6 Speed Manual...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Manual Transmission External Cmpnts (6 Speed Manual Trans M66 - AWD, Halewood (UK), 6 Speed Manual...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT $3.57 IN STOCK
Photo Part No Description Price (each) Stock
LR002926 SCREW $1.47 To Order
Photo Part No Description Price (each) Stock
LR005632 PIN - SPRING $0.61 To Order
Photo Part No Description Price (each) Stock
LR000766 STRAP - HOSE $5.53 To Order
Photo Part No Description Price (each) Stock
LR002900 PLUG - ENGINE $28.96 To Order
Photo Part No Description Price (each) Stock
LR002927 RING - SEALING $17.11 To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
FS105161 SCREW - PAN HEAD $1.16 To Order
Photo Part No Description Price (each) Stock
LR021315 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
LR019450 VALVE - VENT $21.46 To Order
Photo Part No Description Price (each) Stock
LR031662 SLEEVE - TRANSMISSION $186.86 To Order
Photo Part No Description Price (each) Stock
LR022071 HOUSING - TRANSMISSION GEAR SHIFT $435.19 To Order
Photo Part No Description Price (each) Stock
LR003470 BRACKET - CONTROL CABLE $10.45 To Order
Photo Part No Description Price (each) Stock
LR002304 VALVE - VENT $3.32 To Order
Photo Part No Description Price (each) Stock
LR000772 SEAL - OIL $4.42 To Order
Photo Part No Description Price (each) Stock
LR000770 SEAL - OIL $8.86 To Order
Photo Part No Description Price (each) Stock
LR000771 SEAL - OIL $22.27 To Order
LR024341 SEAL - OIL $72.24 To Order
Photo Part No Description Price (each) Stock
LR002928 SEAL - OIL $22.56 To Order
Photo Part No Description Price (each) Stock
LR002929 SEAL - OIL $38.42 IN STOCK
Photo Part No Description Price (each) Stock
LR000767 PIN $0.67 To Order
Photo Part No Description Price (each) Stock
LR001195 LEVER - GEAR SHIFT $191.39 To Order
Photo Part No Description Price (each) Stock
LR060914 FORK - GEAR SHIFT $150.17 To Order
Photo Part No Description Price (each) Stock
LR000774 SWITCH - REVERSING LAMP $12.26 To Order
Photo Part No Description Price (each) Stock
LR001351 SWITCH - REVERSING LAMP $12.26 To Order
Photo Part No Description Price (each) Stock
LR001372 COVER - GEARBOX $9.96 To Order
LR065427 COVER - GEARBOX $12.41 To Order
Photo Part No Description Price (each) Stock
LR001353 BOLT - HEX.HEAD $3.48 To Order
Photo Part No Description Price (each) Stock
LR001354 BOLT - HEX.HEAD $1.75 To Order
Photo Part No Description Price (each) Stock
LR001355 BOLT - HEX.HEAD $3.12 To Order
Photo Part No Description Price (each) Stock
LR014097 RETAINER - INTERLOCK SPRING $45.33 To Order
Photo Part No Description Price (each) Stock
LR019970 SENSOR - MAN. LEVER POSITION - MLPS $111.68 To Order
Photo Part No Description Price (each) Stock
LR050850 SENSOR - MAN. LEVER POSITION - MLPS $41.22 To Order
View All

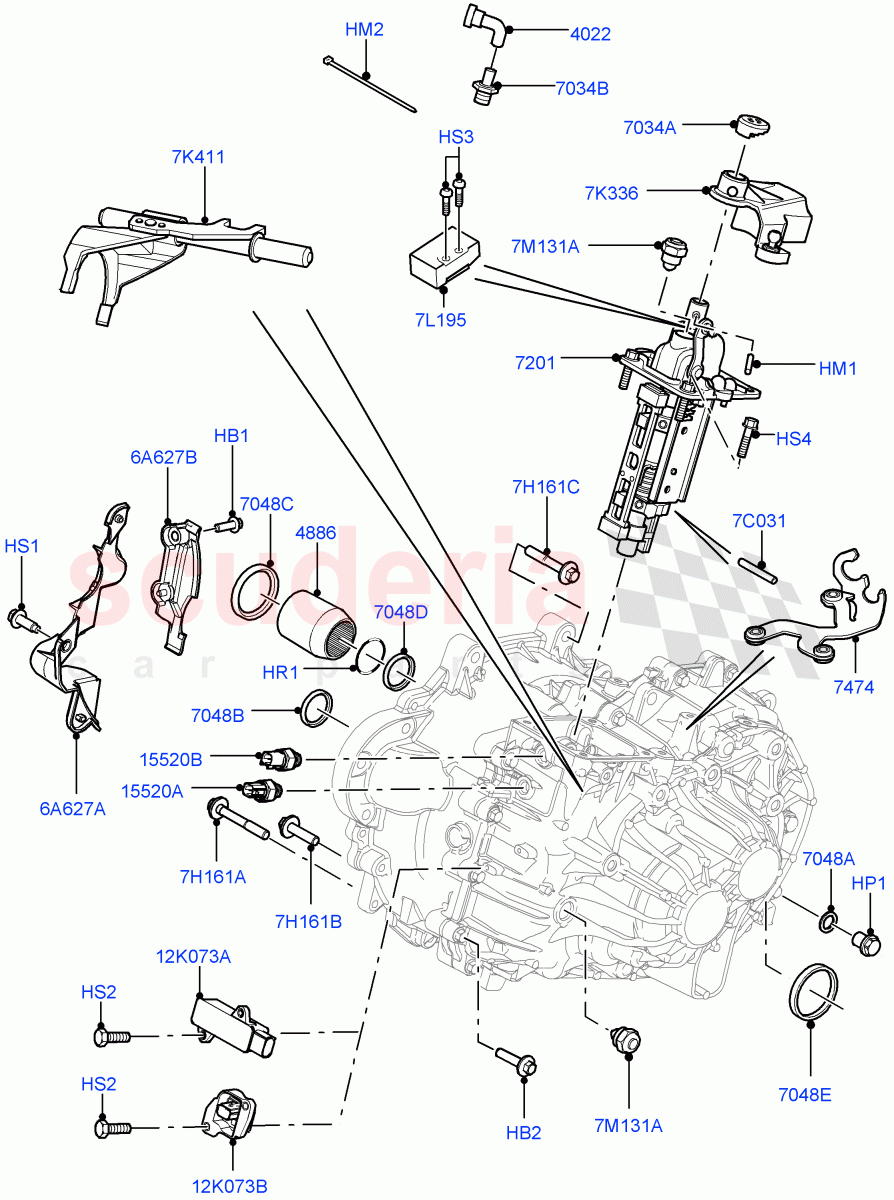

Manual Transmission External Cmpnts (6 Speed Manual Trans M66 - AWD, Halewood (UK), 6 Speed Manual Trans-JLR M66 2WD, 6-Speed Manual Transaxle - M66 2WD) ((V) TOFH999999) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hex Head, Hexagonal Head, M8 X 25MM
IN STOCK 		$3.57 1
HB2 LR002926
SCREW
Case Assy / Transmission 		$1.47 1
HM1 LR005632
PIN - SPRING
8 X 32 		$0.61 1
HM2 LR000766
STRAP - HOSE
270MM x 4.8MM, Cable Tie 		$5.53 1
HP1 LR002900
PLUG - ENGINE
Drain, FILLER 		$28.96 1
HR1 LR002927
RING - SEALING
Input Shaft, O Ring Gasket 		$17.11 1
HS1 RYG500470
SCREW
Hex Head, Hexagonal Head, M10 X 25MM 		$0.61 1
HS2 FS105161
SCREW - PAN HEAD
Gear Neutral Sensor, M5 X 16MM 		$1.16 2
HS4 LR021315
SCREW
M8 X 30MM 		$1.15 4
6A627A LR001372
COVER - GEARBOX
To: EH955078 		$9.96 1
6A627A LR065427
COVER - GEARBOX
From: EH955079 		$12.41 1
7C031 LR000767
PIN 		$0.67 1
7H161A LR001353
BOLT - HEX.HEAD
Bolt Transmission To Engine, M10 x 75MM 		$3.48 2
7H161B LR001354
BOLT - HEX.HEAD
Bolt Transmission To Engine, M10 x 40MM 		$1.75 3
7H161C LR001355
BOLT - HEX.HEAD
Bolt Transmission To Engine, M10 x 63MM 		$3.12 3
7K336 LR001195
LEVER - GEAR SHIFT 		$191.39 1
7K411 LR060914
FORK - GEAR SHIFT 		$150.17 1
7M131A LR014097
RETAINER - INTERLOCK SPRING
Retainer Only 		$45.33 1
12K073A LR019970
SENSOR - MAN. LEVER POSITION - MLPS
Starter - Stop/Start System / Gear Neutral Sensor / To: DH999999 		$111.68 1
12K073B LR050850
SENSOR - MAN. LEVER POSITION - MLPS
Starter - Stop/Start System / Gear Neutral Sensor / From: EH000001 		$41.22 1
4022 LR019450
VALVE - VENT
Breather, Differential 		$21.46 1
4886 LR031662
SLEEVE - TRANSMISSION 		$186.86 1
7034A LR002304
VALVE - VENT 		$3.32 1
7048A LR000772
SEAL - OIL
18.3MM, Drain, FILLER 		$4.42 1
7048B LR000770
SEAL - OIL
45MM 		$8.86 1
7048C LR000771
SEAL - OIL
6 Speed Manual Trans M66 - AWD / 75MM 		$22.27 1
7048C LR024341
SEAL - OIL
6 Speed Manual Trans-JLR M66 2WD / 75MM 		$72.24 1
7048D LR002928
SEAL - OIL
30 X 40MM 		$22.56 1
7048E LR002929
SEAL - OIL
Driveshaft Seal,
IN STOCK 		$38.42 1
7201 LR022071
HOUSING - TRANSMISSION GEAR SHIFT 		$435.19 1
7474 LR003470
BRACKET - CONTROL CABLE 		$10.45 1
15520A LR000774
SWITCH - REVERSING LAMP
1st Gear 		$12.26 1
15520B LR001351
SWITCH - REVERSING LAMP
Reverse 		$12.26 1
