Exhaust System (Front Section) (2.0L I4 Dsl Mid Dohc Aj200, Proconve L6 Emissions, Stage V Plus...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust System (Front Section) (2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions, Stage V Plus...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR057202 BOLT AND WASHER - HEX.HEAD $2.44 To Order
Photo Part No Description Price (each) Stock
RYG500290 BOLT - HEX.HEAD $0.52 IN STOCK
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.40 IN STOCK
Photo Part No Description Price (each) Stock
RYG500470 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR082692 CLAMP - EXHAUST $35.79 To Order
LR111338 CLAMP - EXHAUST $23.95 To Order
Photo Part No Description Price (each) Stock
LR000593 INSULATOR - RUBBER $11.74 To Order
Photo Part No Description Price (each) Stock
LR072251 GASKET - TURBOCHARGER $16.70 To Order
Photo Part No Description Price (each) Stock
LR072729 GASKET - EXHAUST PIPE $23.42 To Order
LR081471 GASKET - EXHAUST PIPE $13.08 To Order
Photo Part No Description Price (each) Stock
LR072207 PIPE - EXHAUST $1,368.09 To Order
LR086932 PIPE - EXHAUST $950.83 To Order
LR094191 PIPE - EXHAUST $1,369.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR136723 BRACKET - EXHAUST PIPE MOUNTING $10.78 To Order
Photo Part No Description Price (each) Stock
LR072209 FILTER - DIESEL PARTICLE $3,623.37 To Order
LR086933 FILTER - DIESEL PARTICLE $3,339.62 To Order
LR116036 FILTER - DIESEL PARTICLE $3,501.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR134914 FILTER - DIESEL PARTICLE $2,243.39 To Order
Photo Part No Description Price (each) Stock
LR072210 BRACKET - EXHAUST PIPE MOUNTING $49.86 To Order
Photo Part No Description Price (each) Stock
LR072222 BRACKET - EXHAUST PIPE MOUNTING $56.99 To Order
LR107787 BRACKET - EXHAUST PIPE MOUNTING $46.45 To Order
Photo Part No Description Price (each) Stock
LR072211 BRACKET - EXHAUST PIPE MOUNTING $18.42 To Order
LR079603 BRACKET - EXHAUST PIPE MOUNTING $29.40 To Order
Photo Part No Description Price (each) Stock
LR092773 PIPE - EXHAUST PRESSURE $51.33 To Order
Photo Part No Description Price (each) Stock
LR136720 PIPE - EXHAUST PRESSURE $52.05 To Order
Photo Part No Description Price (each) Stock
LR136722 PIPE - EXHAUST PRESSURE $56.17 To Order
View All

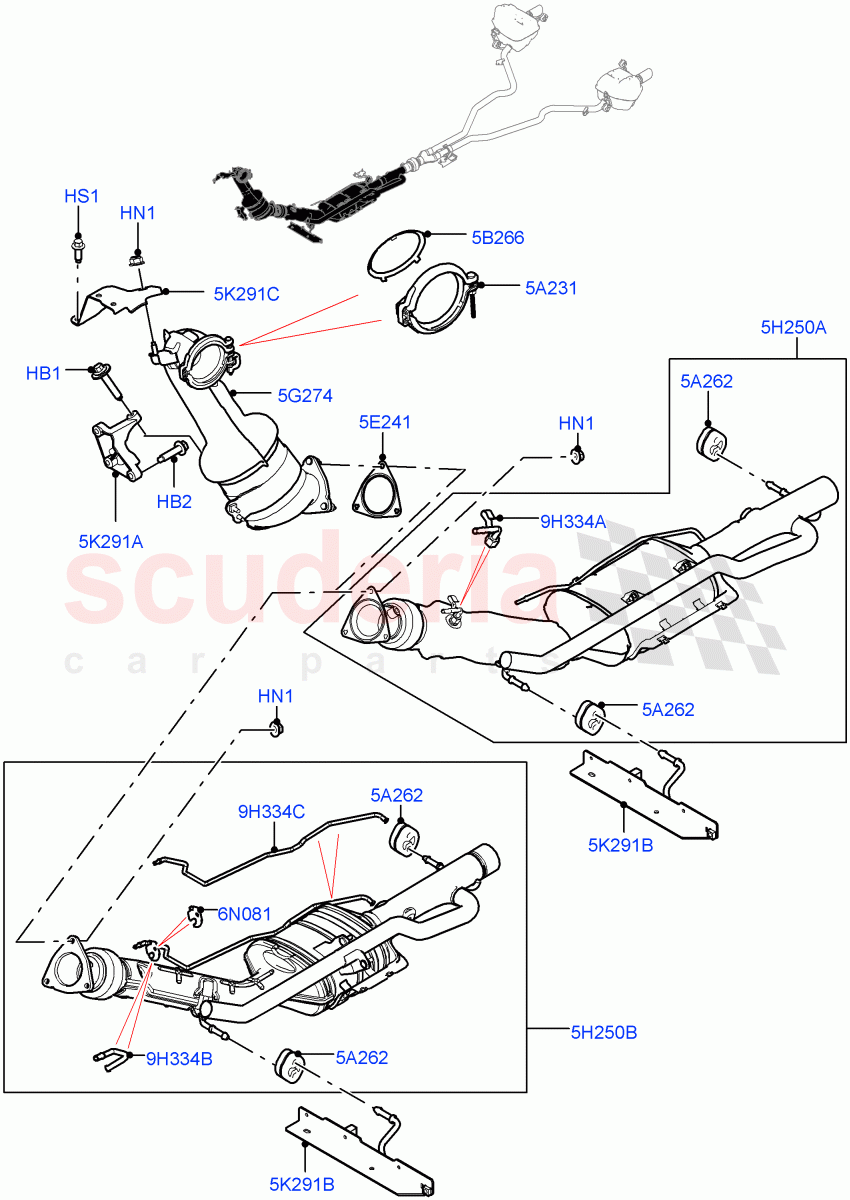

Exhaust System (Front Section) (2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, DPF + DE-SOX) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR057202
BOLT AND WASHER - HEX.HEAD
M8 x 40MM / From: GH000001 		$2.44 1
HB2 RYG500290
BOLT - HEX.HEAD
Hexagonal Head, M8 x 30MM / From: GH000001
IN STOCK 		$0.52 3
HN1 FX108046
NUT - LOCKING
M8 / From: GH000001
IN STOCK 		$0.40 3
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM / From: GH000001 		$0.61 1
5A231 LR082692
CLAMP - EXHAUST
101 mm / From: GH000001 / To: GH999999 		$35.79 1
5A231 LR111338
CLAMP - EXHAUST
101 mm / From: HH000001 		$23.95 1
5A262 LR000593
INSULATOR - RUBBER
From: GH000001 		$11.74 2
5B266 LR072251
GASKET - TURBOCHARGER
101 mm / From: GH000001 		$16.70 1
5E241 LR072729
GASKET - EXHAUST PIPE
From: GH000001 / To: GH099660 		$23.42 1
5E241 LR081471
GASKET - EXHAUST PIPE
From: GH099661 		$13.08 1
5G274 LR072207
PIPE - EXHAUST
From: GH000001 / To: GH166801 		$1,368.09 1
5G274 LR086932
PIPE - EXHAUST
From: GH166802 / To: HH999999 		$950.83 1
5G274 LR094191
PIPE - EXHAUST
2.0L I4 DSL HIGH DOHC AJ200 / From: JH000001 		$1,369.48 1
5G274 LR086932
PIPE - EXHAUST
2.0L I4 DSL MID DOHC AJ200 / From: JH000001 		$950.83 1
5H250A LR072209
FILTER - DIESEL PARTICLE
From: GH000001 / To: GH166801 		$3,623.37 1
5H250A LR086933
FILTER - DIESEL PARTICLE
From: GH166802 / To: HH999999 		$3,339.62 1
5H250A LR116036
FILTER - DIESEL PARTICLE
From: JH000001 / To: JH322288 		$3,501.98 1
5H250A LR117081
FILTER - DIESEL PARTICLE
From: JH322289 / To: JH326288 		$3,290.85 1
5H250B LR134914
FILTER - DIESEL PARTICLE
From: JH326289 		$2,243.39 1
5K291A LR072210
BRACKET - EXHAUST PIPE MOUNTING
From: GH000001 		$49.86 1
5K291B LR072222
BRACKET - EXHAUST PIPE MOUNTING
From: GH000001 / To: JH271734 		$56.99 1
5K291B LR107787
BRACKET - EXHAUST PIPE MOUNTING
From: JH271735 		$46.45 1
5K291C LR072211
BRACKET - EXHAUST PIPE MOUNTING
From: GH000001 / To: GH139739 		$18.42 1
5K291C LR079603
BRACKET - EXHAUST PIPE MOUNTING
From: GH139740 		$29.40 1
6N081 LR136723
BRACKET - EXHAUST PIPE MOUNTING
Exhaust pipe / From: JH326289 		$10.78 1
9H334A LR092773
PIPE - EXHAUST PRESSURE
Exhaust Gas Pressure / From: GH000001 / To: JH326288 		$51.33 1
9H334B LR136720
PIPE - EXHAUST PRESSURE
Exhaust Gas Pressure, Inlet / From: JH326289 		$52.05 1
9H334C LR136722
PIPE - EXHAUST PRESSURE
Exhaust Gas Pressure, Outlet / From: JH326289 		$56.17 1
