Emission Control - Crankcase (2.0L I4 Dsl Mid Dohc Aj200, Halewood (Uk), 2.0L I4 Dsl High Dohc...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Emission Control - Crankcase (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR105417 O-RING $5.90 To Order
Photo Part No Description Price (each) Stock
LR105418 O-RING $5.90 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.35 To Order
LR071842 SCREW AND WASHER - HEX HEAD $1.35 To Order
Photo Part No Description Price (each) Stock
LR105593 GASKET - COVER $78.74 To Order
Photo Part No Description Price (each) Stock
LR073793 COVER - BREATHER $231.03 To Order
LR105980 COVER - BREATHER $218.05 To Order
LR084846 COVER - BREATHER $207.22 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR174796 HEAT SHIELD $98.12 To Order
Photo Part No Description Price (each) Stock
LR073728 HOSE - CRANKCASE VENTILATION $42.25 To Order
LR077852 HOSE - CRANKCASE VENTILATION $83.85 To Order
View All

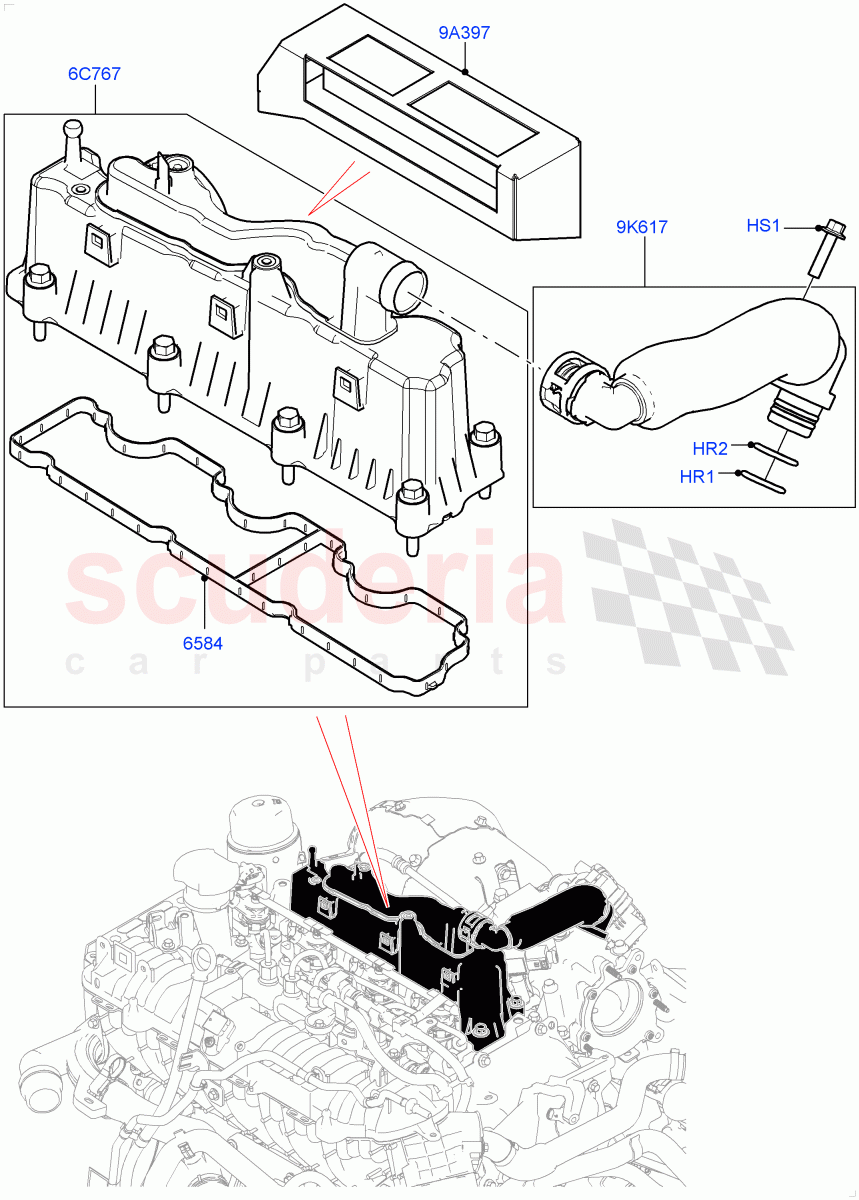

Emission Control - Crankcase (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR105417
O-RING
38MM, Primary / From: GH083601 		$5.90 1
HR2 LR105418
O-RING
38MM, Secondary / From: GH083601 		$5.90 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM / From: GH000001 / To: GH083600 		$1.35 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Engine Ventilation, Hexagonal Head, Hose, M6 X 25MM / From: GH083601 		$1.35 2
6C767 LR073793
COVER - BREATHER
Engine Ventilation / From: GH000001 / To: GH055993 		$231.03 1
6C767 LR105980
COVER - BREATHER
Engine Ventilation / From: GH055994 / To: GH999999 		$218.05 1
6C767 LR084846
COVER - BREATHER
(+)"CDN/MEX/USA" / Engine Ventilation / From: HH000001 / To: HH150000 		$207.22 1
6C767 LR093136
COVER - BREATHER
(+)"CDN/MEX/USA" / Engine Ventilation / From: HH150001 		$220.65 1
6C767 LR105980
COVER - BREATHER
(-)"CDN/MEX/USA" / Engine Ventilation / From: HH000001 / To: HH164495 		$218.05 1
6C767 LR093135
COVER - BREATHER
(-)"CDN/MEX/USA" / Engine Ventilation / From: HH164496 / To: HH262487 		$210.09 1
6C767 LR105980
COVER - BREATHER
(-)"CDN/MEX/USA" / Engine Ventilation / From: HH262488 		$218.05 1
9A397 LR174796
HEAT SHIELD
From: GH000001 		$98.12 1
9K617 LR073728
HOSE - CRANKCASE VENTILATION
Engine Ventilation / From: GH000001 / To: GH083600 		$42.25 1
9K617 LR077852
HOSE - CRANKCASE VENTILATION
Engine Ventilation / From: GH083601 		$83.85 1
6584 LR105593
GASKET - COVER
From: GH000001 		$78.74 1
