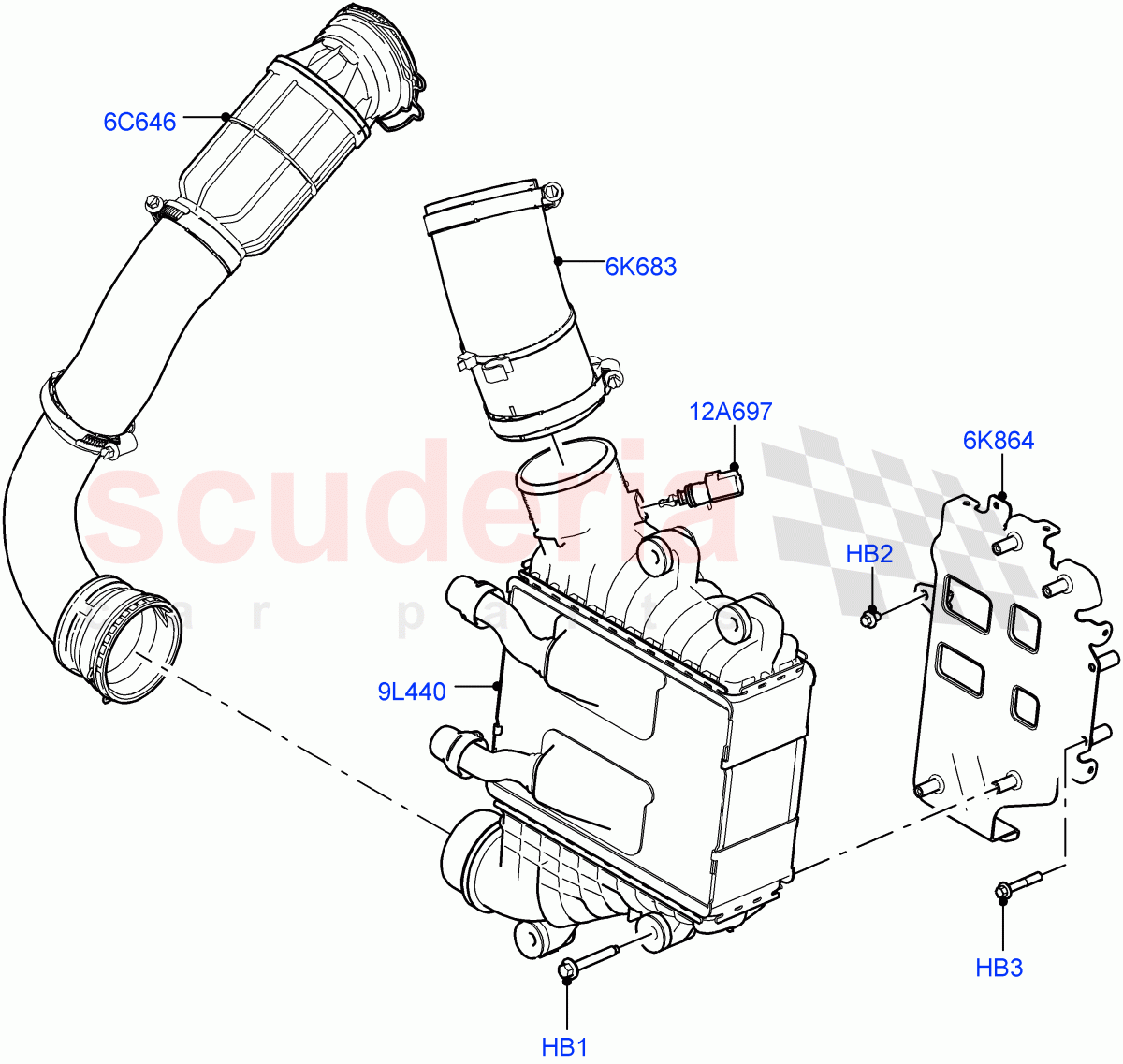

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	$1.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094179	DUCT - AIR	$274.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071998	HOSE - AIR	$29.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097850	BRACKET - CHARGE AIR COOLER	$182.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095900	COOLER - ENGINE CHARGE AIR	$536.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071745	SENSOR - AIR CHARGE TEMPERATURE	$48.33	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR001080	BOLT IN STOCK	LR001080 BOLT Hexagonal Head, Intercooler, M6 X 40MM / From: JH000001 IN STOCK	$1.36	4
HB2	FS108166	BOLT IN STOCK	FS108166 BOLT Bracket, Hexagonal Head, M8 X 16MM, To Transmission / From: JH000001 IN STOCK	$0.67	2
HB3	FB108106	BOLT	FB108106 BOLT Bracket, Hexagonal Head, M8 x 50MM, To Transmission / From: JH000001	$10.87	2
6C646	LR094179	DUCT - AIR	LR094179 DUCT - AIR From: JH000001	$274.17	1
6K683	LR071998	HOSE - AIR	LR071998 HOSE - AIR From: JH000001	$29.41	1
6K864	LR097850	BRACKET - CHARGE AIR COOLER	LR097850 BRACKET - CHARGE AIR COOLER From: JH000001	$182.46	1
9L440	LR095900	COOLER - ENGINE CHARGE AIR	LR095900 COOLER - ENGINE CHARGE AIR From: JH000001	$536.20	1
12A697	LR071745	SENSOR - AIR CHARGE TEMPERATURE	LR071745 SENSOR - AIR CHARGE TEMPERATURE From: JH000001	$48.33	1
