Name: Exhaust Manifold (2.0L I4 DSL MID DOHC AJ200, Halewood (UK))
Rating: 5.0 (1 reviews)

Exhaust Manifold (2.0L I4 DSL MID DOHC AJ200, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust Manifold (2.0L I4 DSL MID DOHC AJ200, Halewood (UK))

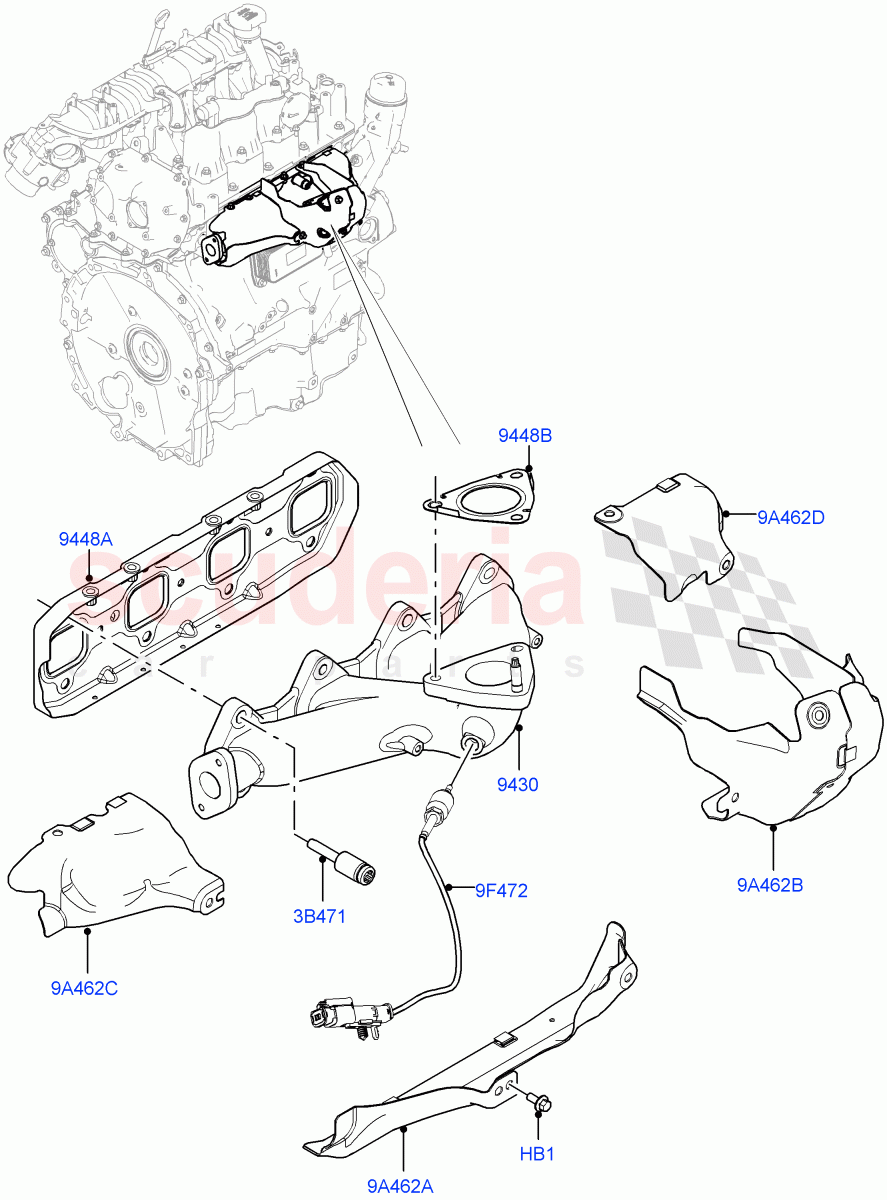

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073657	MANIFOLD - EXHAUST	$529.72	To Order
	LR104016	MANIFOLD - EXHAUST	$516.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	$3.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073658	GASKET	$33.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073723	GASKET - EXHAUST MANIFOLD	$30.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074128	SENSOR - EXHAUST GAS - TEMPERATURE	$112.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	$53.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073662	SHIELD - EXHAUST MANIFOLD HEAT	$53.13	To Order
	LR079593	SHIELD - EXHAUST MANIFOLD HEAT	$51.94	To Order
	LR112108	SHIELD - EXHAUST MANIFOLD HEAT	$50.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	$56.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	$51.01	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM / From: GH000001	$2.77	5
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL From: GH000001	$3.72	8
9A462A	LR073659	SHIELD - EXHAUST MANIFOLD HEAT	LR073659 SHIELD - EXHAUST MANIFOLD HEAT Bottom / From: GH000001	$53.74	1
9A462B	LR073662	SHIELD - EXHAUST MANIFOLD HEAT	LR073662 SHIELD - EXHAUST MANIFOLD HEAT Centre / From: GH000001 / To: GH083861	$53.13	1
9A462B	LR079593	SHIELD - EXHAUST MANIFOLD HEAT	LR079593 SHIELD - EXHAUST MANIFOLD HEAT Centre / From: GH083862 / To: JH280314	$51.94	1
9A462B	LR112108	SHIELD - EXHAUST MANIFOLD HEAT	LR112108 SHIELD - EXHAUST MANIFOLD HEAT Centre / From: JH280315	$50.98	1
9A462C	LR073660	SHIELD - EXHAUST MANIFOLD HEAT	LR073660 SHIELD - EXHAUST MANIFOLD HEAT LH / From: GH000001	$56.83	1
9A462D	LR073661	SHIELD - EXHAUST MANIFOLD HEAT	LR073661 SHIELD - EXHAUST MANIFOLD HEAT RH / From: GH000001	$51.01	1
9F472	LR074128	SENSOR - EXHAUST GAS - TEMPERATURE	LR074128 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature / From: GH000001	$112.40	1
9430	LR073657	MANIFOLD - EXHAUST	LR073657 MANIFOLD - EXHAUST From: GH000001 / To: HH261220	$529.72	1
9430	LR104016	MANIFOLD - EXHAUST	LR104016 MANIFOLD - EXHAUST From: HH261221	$516.26	1
9448A	LR073658	GASKET	LR073658 GASKET Manifold To Cylinder Head / From: GH000001	$33.80	1
9448B	LR073723	GASKET - EXHAUST MANIFOLD	LR073723 GASKET - EXHAUST MANIFOLD Turbocharger / From: GH000001	$30.37	1

Exhaust Manifold (2.0L I4 Dsl Mid Dohc Aj200, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exhaust Manifold (2.0L I4 DSL MID DOHC AJ200, Halewood (UK))
