Name: Rear Seat Frame (For Seat Cushion) (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001)
Rating: 4.0 (1 reviews)

Rear Seat Frame (For Seat Cushion) (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Rear Seat Frame (For Seat Cushion) (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001)

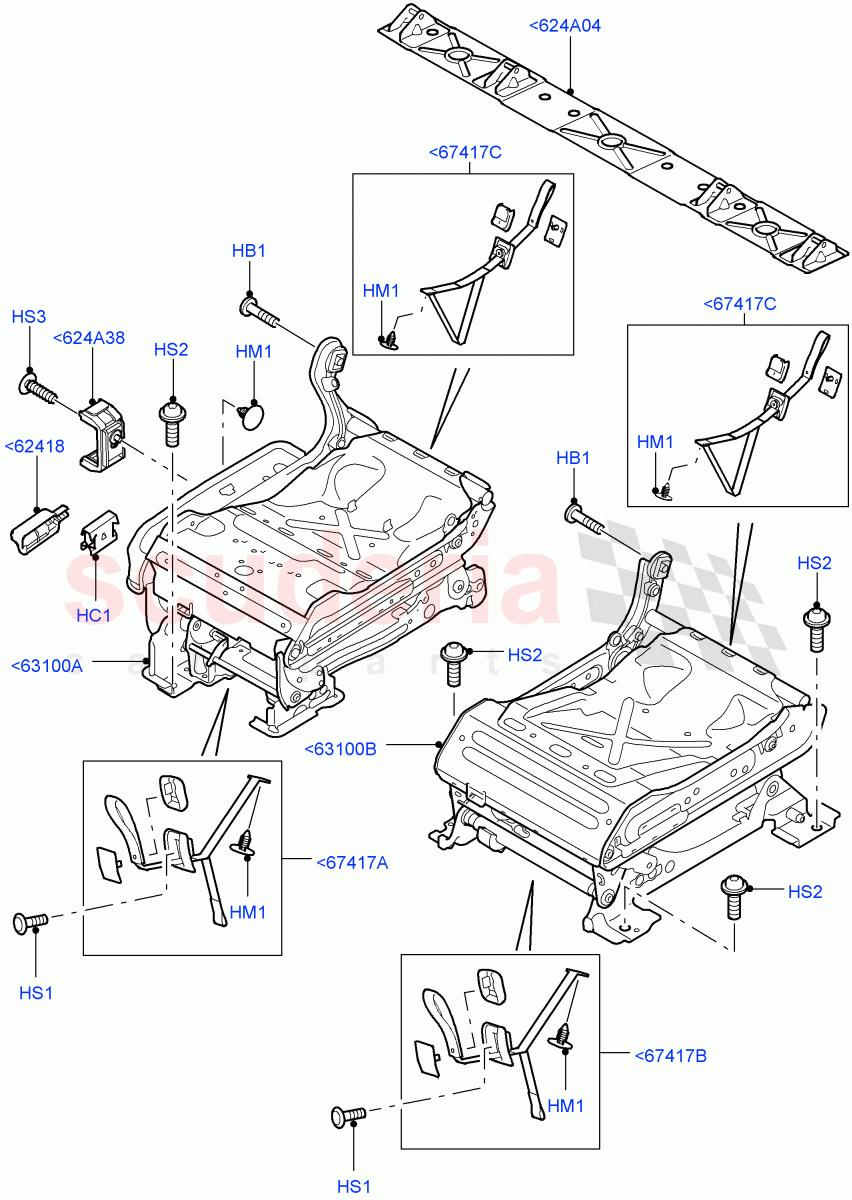

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500170	BOLT	$3.31	To Order

Photo	Part No	Description	Price (each)	Stock
	HYC500080	CLIP - EDGE	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000725	RIVET	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	DA608044L	SCREW - SELF-TAPPING	$1.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HYP500370	SCREW	$1.81	To Order
	LR084136	SCREW	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500150	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	HXG500062PVJ	HANDLE - SEAT BACK ADJUSTING	$6.56	To Order
	HXG500072PVJ	HANDLE - SEAT BACK ADJUSTING	$8.68	To Order

Photo	Part No	Description	Price (each)	Stock
	HTQ500011	PLATE	$67.29	To Order

Photo	Part No	Description	Price (each)	Stock
	YWU500190	BRACKET	$19.93	To Order

Photo	Part No	Description	Price (each)	Stock
	HTG500042	FRAME	$594.32	To Order
	HTG500052	FRAME	$561.46	To Order

Photo	Part No	Description	Price (each)	Stock
	HTG500310	FRAME - SEAT	$615.91	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500260PVJ	STRAP - RELEASE	$27.92	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500270PVJ	STRAP - RELEASE	$27.11	To Order

Photo	Part No	Description	Price (each)	Stock
	HPH500250PVJ	STRAP - RELEASE	$26.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<624A04	HTQ500011	PLATE	HTQ500011 PLATE 2nd Row Seat Mounting / From: AA000001	$67.29	1
<624A38	YWU500190	BRACKET	YWU500190 BRACKET ECU / From: AA000001	$19.93	2
<62418	HXG500062PVJ	HANDLE - SEAT BACK ADJUSTING	HXG500062PVJ HANDLE - SEAT BACK ADJUSTING RH / From: AA000001	$6.56	1
<62418	HXG500072PVJ	HANDLE - SEAT BACK ADJUSTING	HXG500072PVJ HANDLE - SEAT BACK ADJUSTING LH / From: AA000001	$8.68	1
<63100A	HTG500042	FRAME	HTG500042 FRAME RH - Outer / From: AA000001	$594.32	1
<63100A	HTG500052	FRAME	HTG500052 FRAME LH - Outer / From: AA000001	$561.46	1
<63100B	HTG500310	FRAME - SEAT	HTG500310 FRAME - SEAT Centre / From: AA000001	$615.91	1
<67417A	HPH500260PVJ	STRAP - RELEASE	HPH500260PVJ STRAP - RELEASE RH And LH Outer / From: AA000001	$27.92	2
<67417B	HPH500270PVJ	STRAP - RELEASE	HPH500270PVJ STRAP - RELEASE 2nd Row - Centre / From: AA000001	$27.11	1
<67417C	HPH500250PVJ	STRAP - RELEASE	HPH500250PVJ STRAP - RELEASE Flat, Floor / From: AA000001	$26.30	2
HB1	HYG500170	BOLT	HYG500170 BOLT M8, Torx / From: AA000001	$3.31	2
HC1	HYC500080	CLIP - EDGE	HYC500080 CLIP - EDGE Clip - Push In Trim / From: AA000001	$0.77	4
HM1	LR000725	RIVET	LR000725 RIVET Rivet / From: AA000001	$0.67	1
HS1	DA608044L	SCREW - SELF-TAPPING IN STOCK	DA608044L SCREW - SELF-TAPPING Size 8 - Self Tapping / From: AA000001 IN STOCK	$1.91	3
HS2	HYP500370	SCREW	HYP500370 SCREW M10 X 1.5, Torx / From: AA000001 / To: GA816748	$1.81	14
HS2	LR084136	SCREW	LR084136 SCREW M10 X 31MM, Torx / From: GA816749	$1.84	14
HS3	HYP500150	SCREW	HYP500150 SCREW 16MM, Torx / From: AA000001	$0.76	3

Rear Seat Frame (For Seat Cushion) (With 35/30/35 Split Fold Rear Seat) ((V) Fromaa000001)
