Name: Transmission Cooling Systems (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

Transmission Cooling Systems (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Transmission Cooling Systems (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L DOHC...

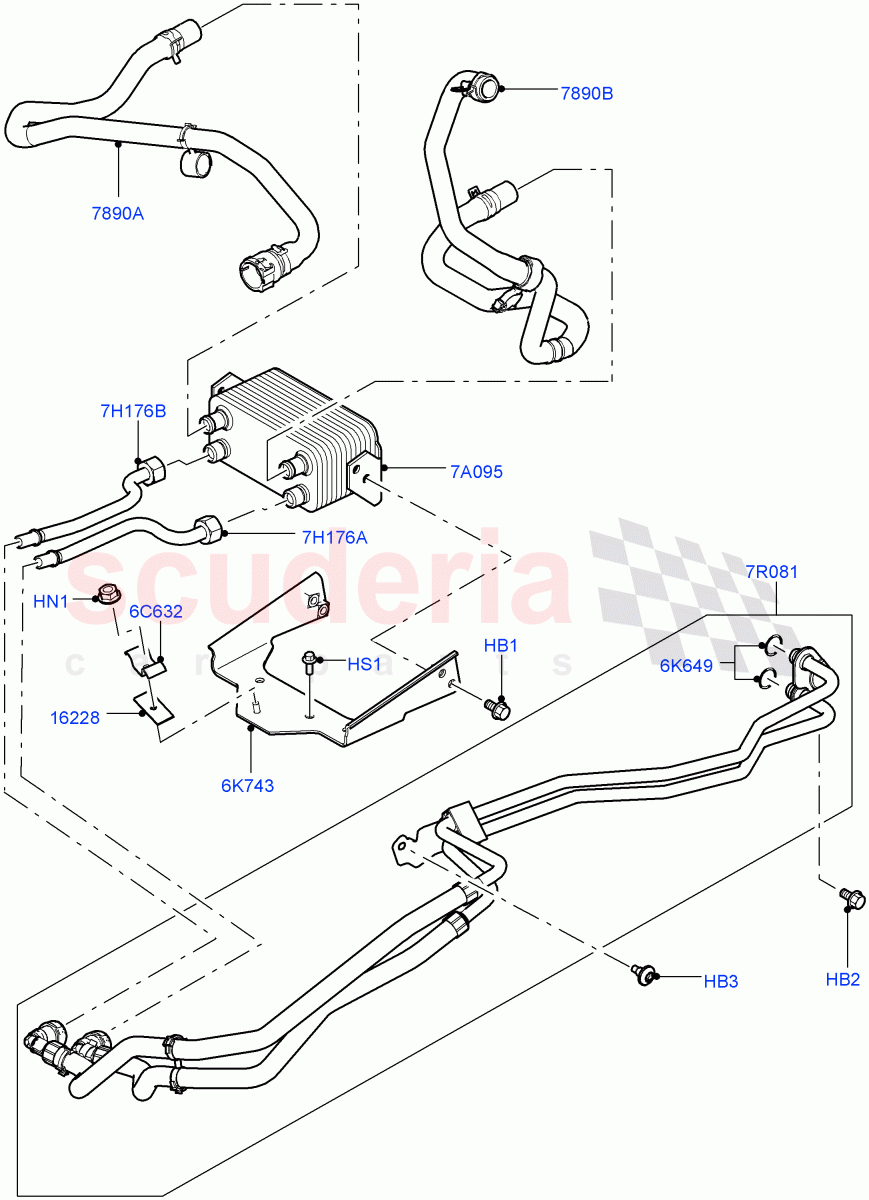

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013729	BOLT	$8.64	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR013730	NUT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP500020	BOLT	$0.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR031887	PLATE - TRANSMISSION OIL COOLER	$8.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031886	CLAMP - TUBE	$8.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049457	O-RING	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	UBU500092	BRACKET	$54.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013723	HOSE - OIL COOLER	$87.43	To Order
	LR059162	TUBE - OIL COOLER	$65.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051839	TUBE - OIL COOLER	$68.41	To Order
	LR059163	TUBE - OIL COOLER	$62.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013722	OIL COOLER	$368.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050757	TUBE - OIL COOLER	$234.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039896	TUBE - OIL COOLER	$45.96	To Order
	LR078964	TUBE - OIL COOLER	$50.94	To Order
	LR067645	TUBE - OIL COOLER	$25.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039897	TUBE - OIL COOLER	$49.63	To Order
	LR078965	TUBE - OIL COOLER	$48.97	To Order
	LR067646	TUBE - OIL COOLER	$28.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR013729	BOLT	LR013729 BOLT M8 X 16MM / From: EA000001	$8.64	4
HB2	FS108166	BOLT IN STOCK	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: EA000001 IN STOCK	$0.67	1
HB3	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: EA000001 IN STOCK	$0.52	1
HN1	LR013730	NUT	LR013730 NUT M6 / From: EA000001	$1.04	1
HS1	DYP500020	BOLT IN STOCK	DYP500020 BOLT M8 X 21MM / From: EA000001 IN STOCK	$0.77	3
6C632	LR031886	CLAMP - TUBE	LR031886 CLAMP - TUBE Aluminium / From: EA000001	$8.87	1
6K649	LR049457	O-RING	LR049457 O-RING From: EA000001	$3.27	2
6K743	UBU500092	BRACKET	UBU500092 BRACKET From: EA000001	$54.55	1
7A095	LR013722	OIL COOLER	LR013722 OIL COOLER From: EA000001	$368.46	1
7H176A	LR039896	TUBE - OIL COOLER	LR039896 TUBE - OIL COOLER Inlet / From: EA000001 / To: EA451724	$45.96	1
7H176A	LR078964	TUBE - OIL COOLER	LR078964 TUBE - OIL COOLER Inlet / From: GA791570	$50.94	1
7H176A	LR067645	TUBE - OIL COOLER	LR067645 TUBE - OIL COOLER Inlet / From: EA451725 / To: GA791569	$25.74	1
7H176B	LR039897	TUBE - OIL COOLER	LR039897 TUBE - OIL COOLER Outlet / From: EA000001 / To: EA451724	$49.63	1
7H176B	LR078965	TUBE - OIL COOLER	LR078965 TUBE - OIL COOLER Outlet / From: GA791570	$48.97	1
7H176B	LR067646	TUBE - OIL COOLER	LR067646 TUBE - OIL COOLER Outlet / From: EA451725 / To: GA791569	$28.13	1
7R081	LR050757	TUBE - OIL COOLER	LR050757 TUBE - OIL COOLER From: EA000001	$234.80	1
7890A	LR013723	HOSE - OIL COOLER	LR013723 HOSE - OIL COOLER Inlet, Radiator To Cooler / From: EA000001 / To: EA999999	$87.43	1
7890A	LR059162	TUBE - OIL COOLER	LR059162 TUBE - OIL COOLER Inlet, Radiator To Cooler / From: FA000001	$65.49	1
7890B	LR051839	TUBE - OIL COOLER	LR051839 TUBE - OIL COOLER Oil Cooler To Coolant Rail, Outlet / From: EA000001 / To: EA717186	$68.41	1
7890B	LR059163	TUBE - OIL COOLER	LR059163 TUBE - OIL COOLER Oil Cooler To Coolant Rail, Outlet / From: EA717187	$62.41	1
16228	LR031887	PLATE - TRANSMISSION OIL COOLER	LR031887 PLATE - TRANSMISSION OIL COOLER From: EA000001	$8.87	1
